DV316LES 03 – CONTROL PANEL

DV316LES 03 – CONTROL PANEL

Written by

in

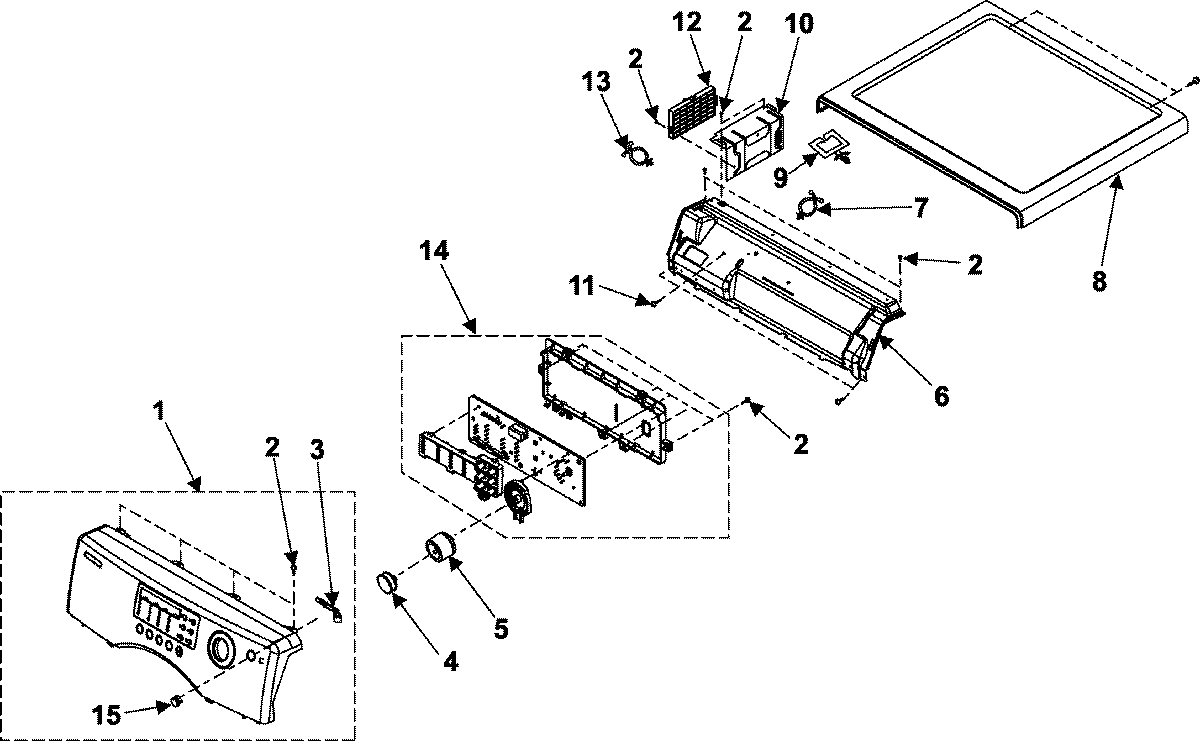

DV316LES 03 – CONTROL PANEL

Products

Position	Product
1	MAY DC97-10866C
2	Screw-Tapping (5)
3	MAY DC66-00413A
4	MAY DC64-01108B
5	MAY DC97-10511A
6	SEE NOTE GROUND WIRE, GREEN
7	MAY DC61-40081A
8	MAY DC97-08634G
9	MAY DC61-60074A
10	MAY DC61-01229A
11	Screw-Tapping
12	MAY MFS-FTDT-00
13	MAY 6502-000127
14	MAY YMFSF12DLS0
15	MAY DC64-01105B
