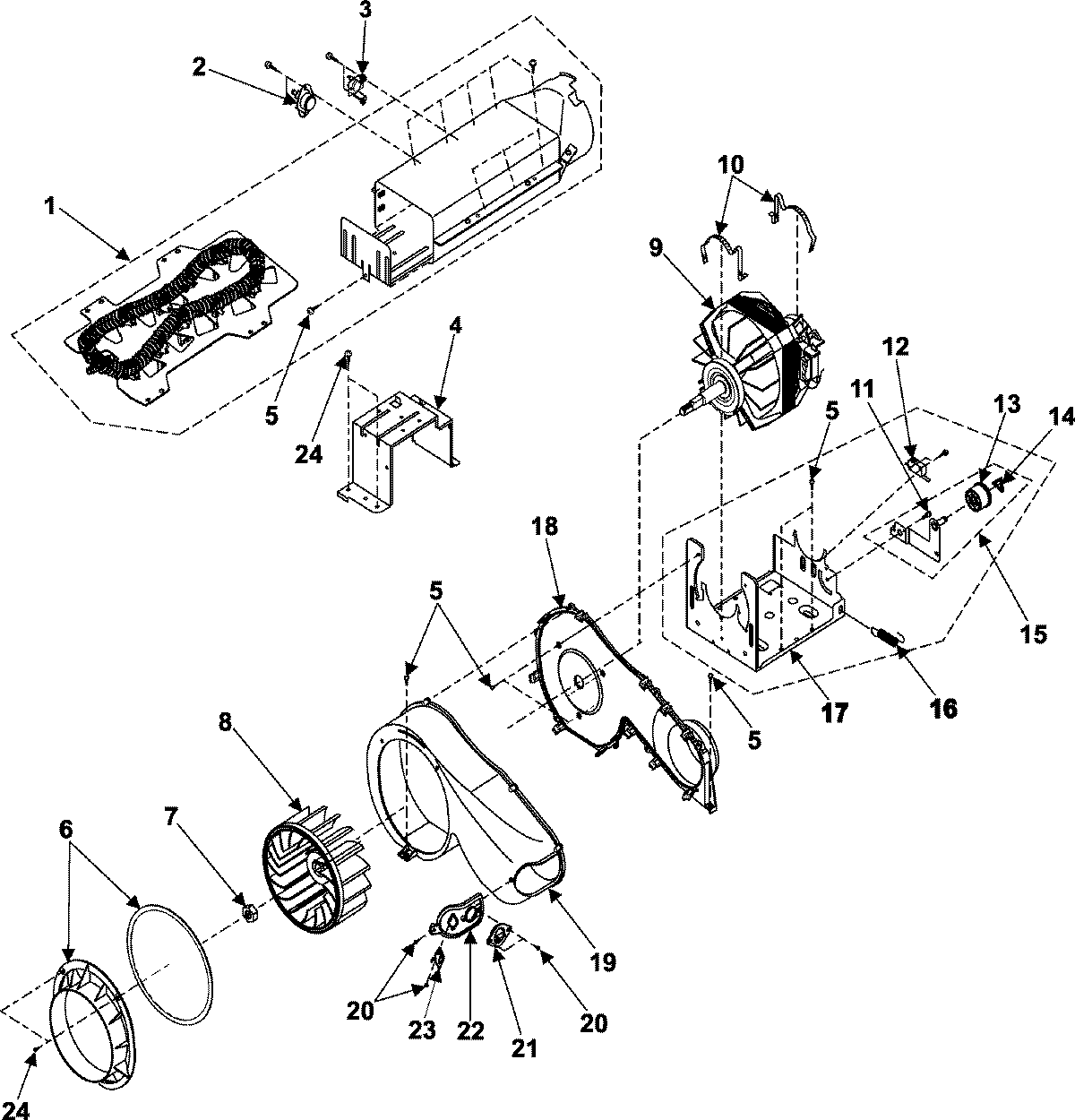

DV316LEW 01 – BLOWER/HEATER/MOTOR – Aparts

DV316LEW 01 – BLOWER/HEATER/MOTOR

Products

Position	Product
1	MAY DC97-08891A
2	MAY DC47-00018A
3	MAY DC96-00887A
4	MAY DC61-01224A
5	Screw-Tapping (5)
6	MAY DC97-07895A
7	MAY 6021-001201
8	MAY DC67-00180A
9	MAY DC31-00055A
10	MAY DC61-01214A
11	Retainer, Idler
12	MAY 3405-001077
13	MAY DC66-00402A
13	MAY DC97-07509B
13	MAY DC66-00401A
14	MAY DC61-01228A
15	MAY DC96-00882B
16	MAY DC61-01215A
17	MAY DC61-01213A
18	MAY DC61-01241A
19	MAY DC63-00536A
20	Screw-Tapping (4)
21	MAY DC32-00007A
22	MAY DC61-01240A
23	MAY DC47-00016A
