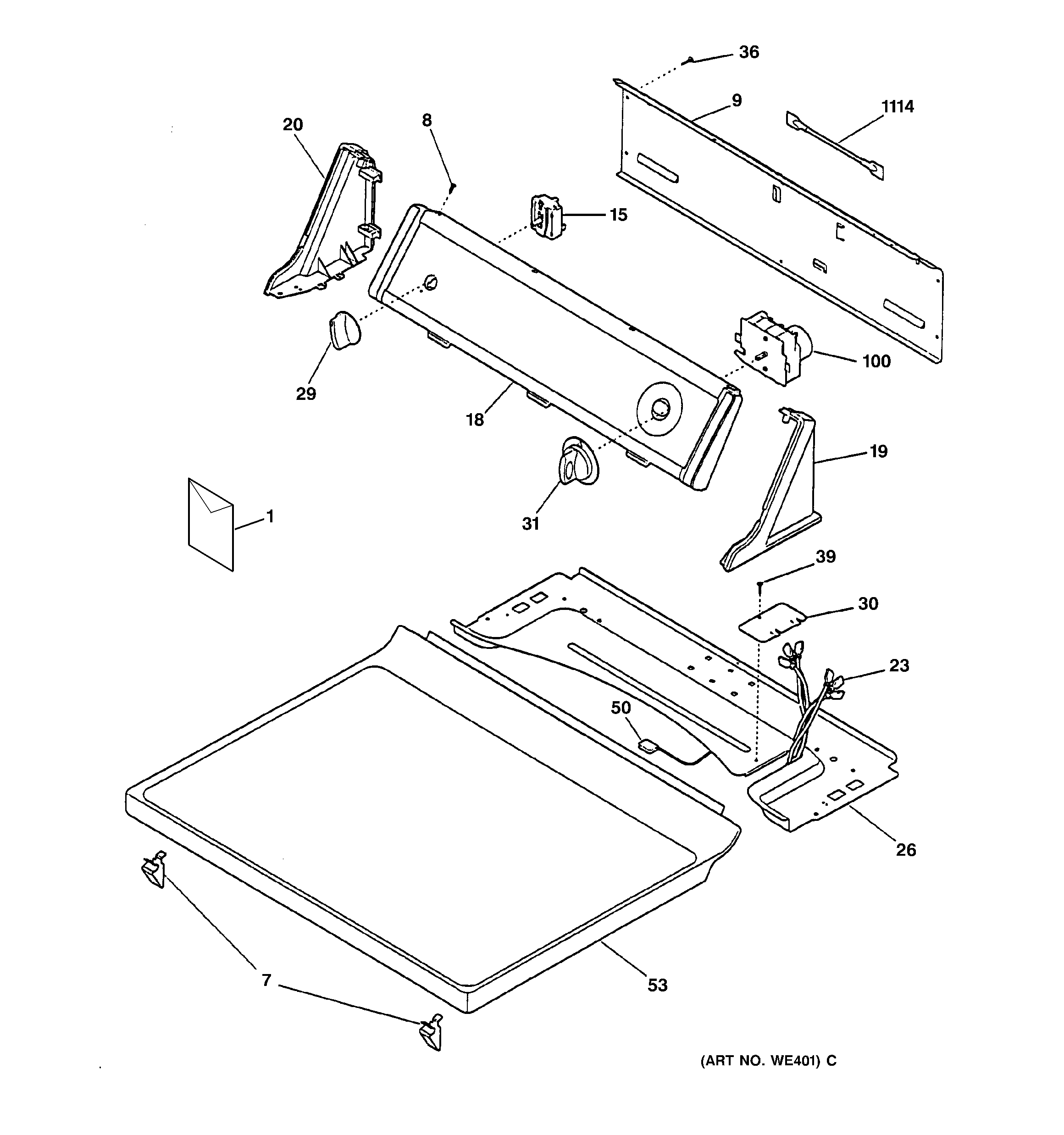

DVL223EA0AA CONTROLS & TOP PANEL

Products

Position	Product
1	GEN 49-9996
1	GEN 31-15406
7	CLIP-TOP FRONT/PANEL
8	SCR 8-18 X .50 FLT HD/SN
9	GEN WE01X10042
9	GEN WE20X10010
15	WE4X881 GE Dryer Rotary Start Switch
18	GEN WH19X10016
19	GEN WE19X10026
20	END CAP L.H. AD
23	HARNESS- MAIN
26	GEN WE19X10023
29	WH1X2721 GE Dryer Control Knob
30	GEN WE01X10034
31	GEN WE01X10039
36	SCREW QUAD PH AB8-18X1/2
50	GEN WE08X10006
53	GEN WE20X10013
100	GEN WE04X10032
1114	GEN WE04X0744
1114	RESISTOR-POWER, 4.4K
1237	INSULATOR, HEATER HSNG
