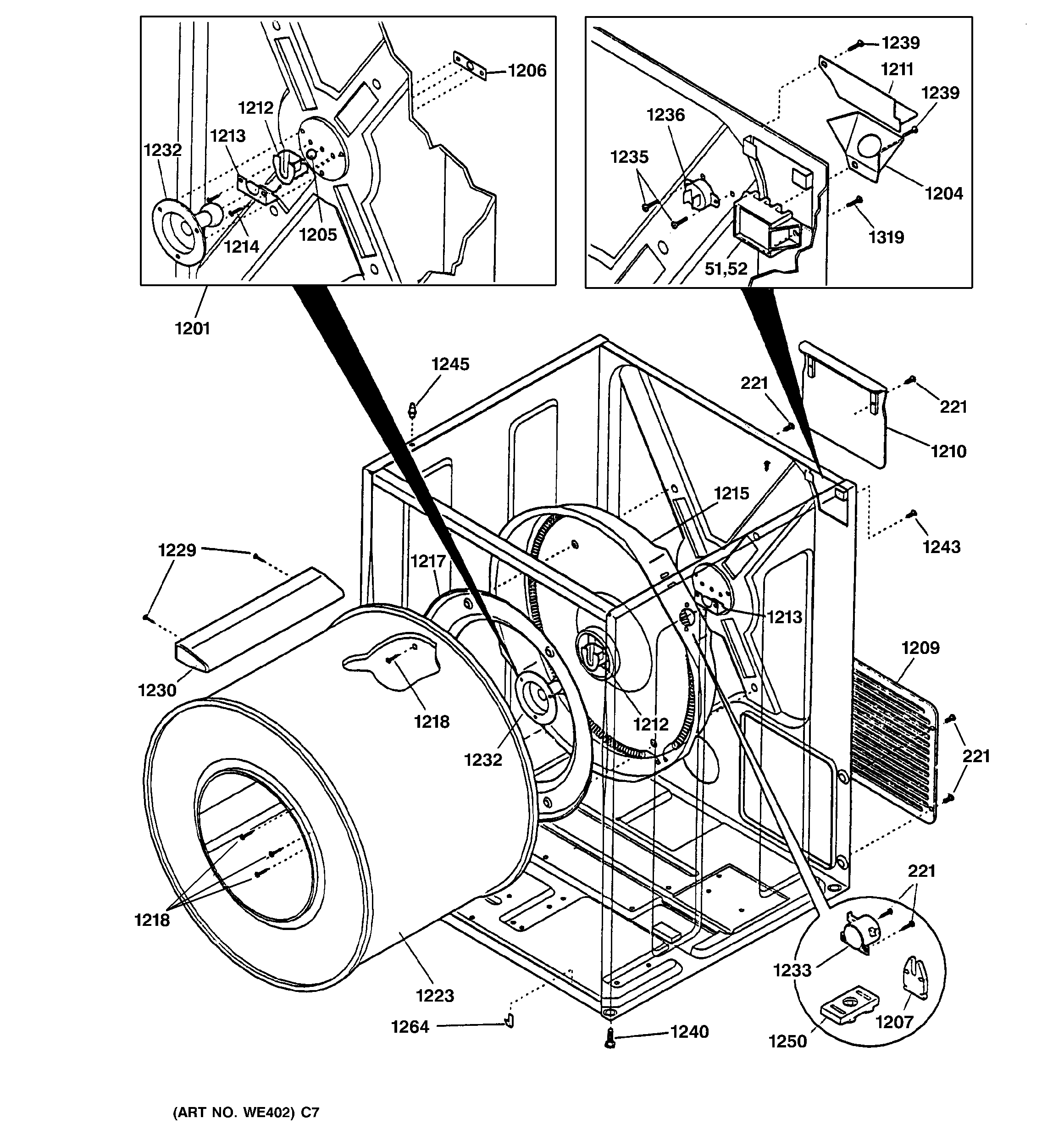

DVL223EB0WW CABINET & DRUM

Products

Position	Product
51	GEN WE04X0716
52	SCREW-TERM BLK
221	SCREW PAN HD.8-18ABX.375
1201	WE25X10001 GE Rear Bearing Kit
1204	BRACKET CORD
1205	GEN WE01X1152
1206	CLIP BALL
1207	INSULATOR, HEATER HSNG
1209	PANEL-ACCESS
1210	GEN WE11X10002
1211	GEN WE20X10005
1212	GEN WE03X10002
1213	BRACKET BEARING
1214	GEN WE02X10005
1215	HEATER-HOUSING ASS'Y
1217	BAFFLE-HEATER
1218	SCREW 10-16 X.375
1223	GEN WE21X10003
1229	GEN WE02X10007
1230	GEN WE21X0069
1232	WE13X10011 GE Washer Rear Bearing Shaft Support
1233	WE4X757 GE Dryer High Limit Safety Thermostat
1235	SCREW 6-20 X .230
1236	LIMITER THERMAL
1239	WE02X10011 GE Screw
1240	GEN WE02X10012
1243	SCREW 10-32T X .375
1245	GEN WE01X10035
1250	BLOCK TERM HEATER HSG
1264	CLIP CABINET BTM
1319	SCREW 10-16 X .75
