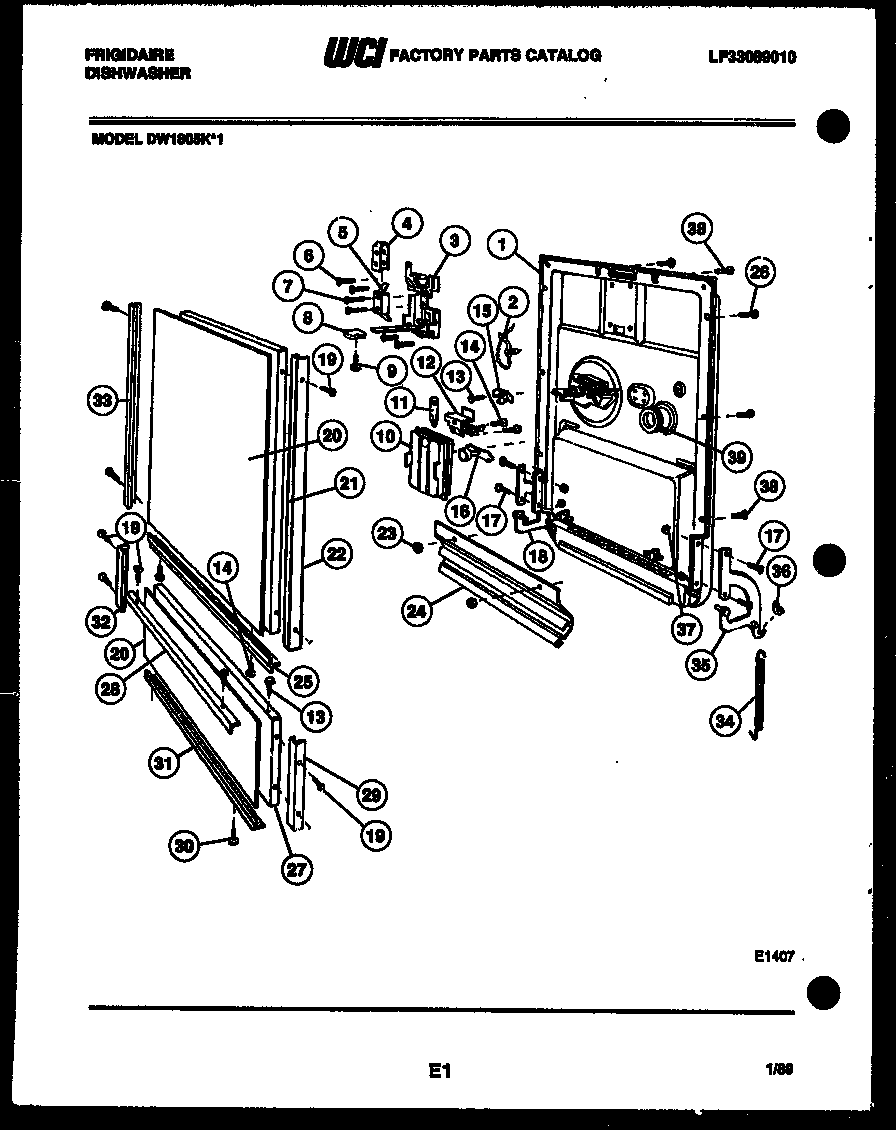

DW1805KH1 04 – DOOR PARTS

Products

Position	Product
1	WCI 3202663
2	5303303590 Frigidaire Dryer 4.0" Cable Tie
3	LATCH-ASSEMBLY
4	WCI 3018041
5	WCI 3018043
6	WCI 3202537
7	WCI 3018042
8	WCI 3018045
9	WCI 3202538
10	BODY ASSEMBLY
11	WCI 3018172
12	WCI 3018173
13	154419403 Frigidaire Dishwasher Screw
14	WCI 3018065
15	WCI 3018047
16	PLUG-DISPENSER FILL
17	WCI 3018056
18	WCI 3018048
19	WCI 3018062
20	WCI 3018181
20	WCI 3018178
22	TRIM-RH DOOR PANEL
23	WCI 3202540
24	WCI 3202856
25	WCI 3202661
26	WCI 3018058
28	TRIM-TOP ACCESS PNL
29	WCI 3018185
30	5304480396 Frigidaire Screw
31	TRIM-BOTTOM ACCESS PANEL
32	TRIM-LH ACCESS PNL
33	TRIM-LH-DOOR PANEL
34	5300807601 Frigidaire Dishwasher Spring
35	WCI 3018054
36	WCI 3014666
37	5303013272 Frigidaire Oven Nut
38	WCI 3202534
39	WCI 3018174
