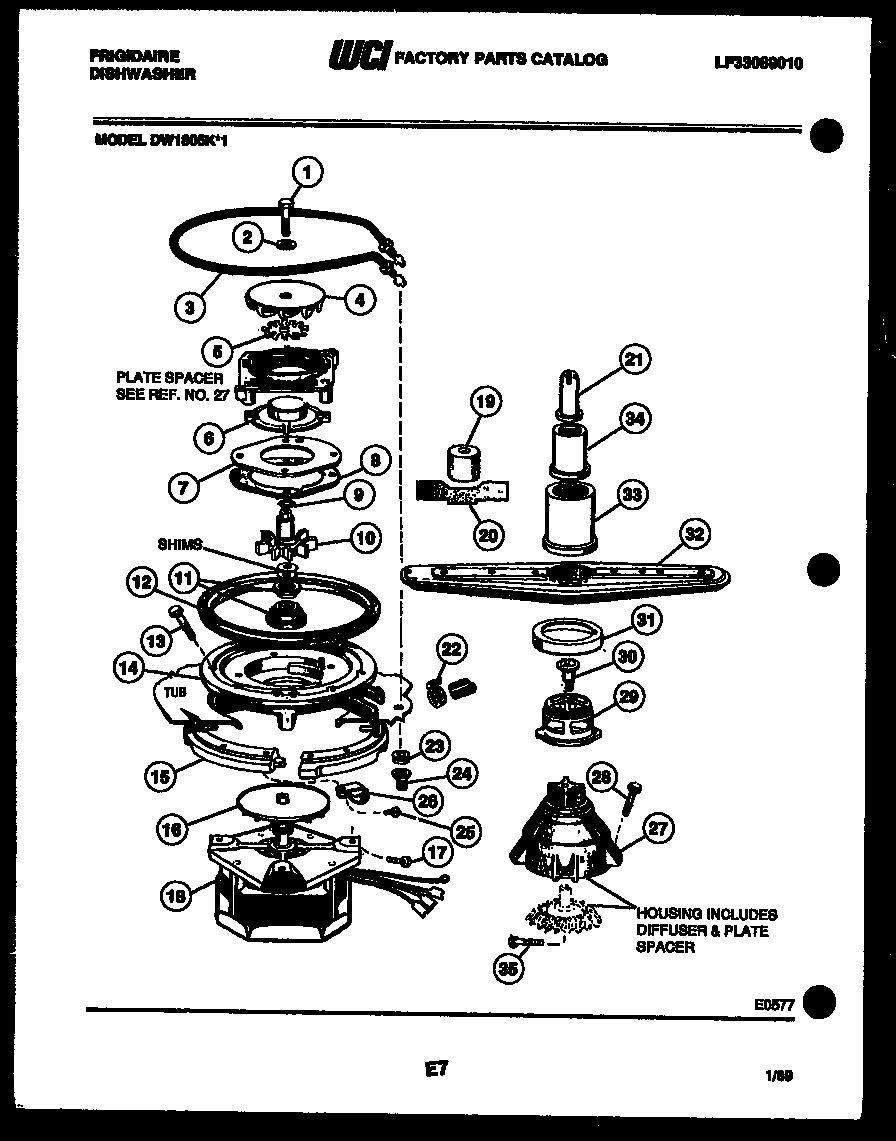

DW1805KH1 07 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 3014673
2	WCI 3018102
3	WCI 3014683
4	WCI 3018103
5	WCI 3018104
6	WCI 3014671
7	WCI 3018105
8	5300807709 Frigidaire Dishwasher Gasket
9	WCI 3014675
10	LOWER IMPELLER/SEAL KIT INCLUDES NO. 2, 4, 5, 9, 11, 20
11	WCI 3014633
12	WCI 3018108
13	WCI 3014699
14	WCI 3018109
15	WCI 3018064
16	WCI 3018110
17	WCI 3018111
18	MOTOR ASSY INCLUDES NO. 1, 9, 16, 20 AND SHIMS
19	TOOL-SEAL INSTALLATION REQUIRED WHEN INSTALL. NO. 10, 11
20	WCI 3018115
21	WCI 3018116
22	WCI 3018117
23	WCI 3014682
24	154106202 Frigidaire Dishwasher Heater Nut
26	240396801 Frigidaire Refrigerator Tube Clamp
27	WCI 3018120
28	WCI 3018154
29	WCI 3018121
30	WCI 3018122
31	WCI 3018123
32	WCI 3018124
33	WCI 3018125
34	WCI 3018126
35	WCI 3018127
