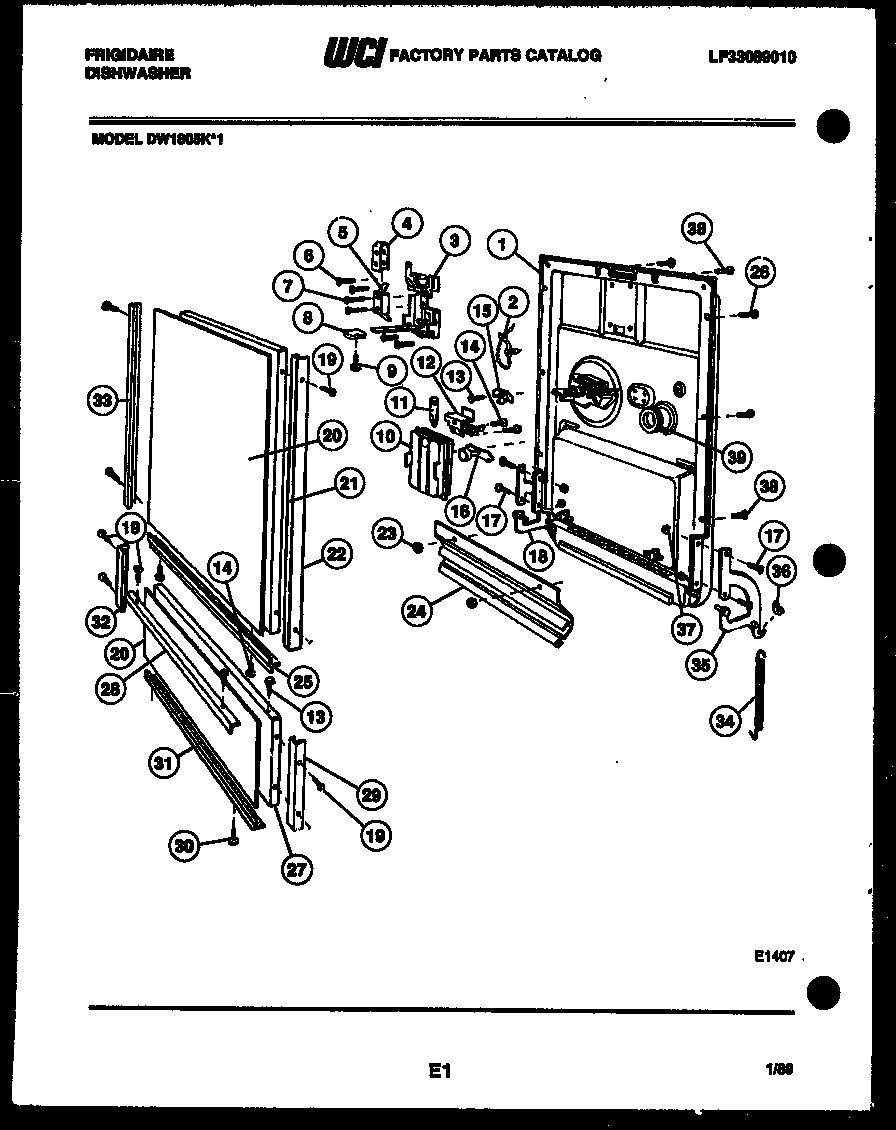

DW1805KW1 04 – DOOR PARTS

Products

Position	Product
1	WCI 3202663
2	5303303590 Frigidaire Dryer 4.0" Cable Tie
3	LATCH-ASSEMBLY
4	WCI 3018041
5	WCI 3018043
6	WCI 3202537
7	WCI 3018042
8	WCI 3018045
9	WCI 3202538
10	BODY ASSEMBLY
11	WCI 3018172
12	WCI 3018173
13	154419403 Frigidaire Dishwasher Screw
14	WCI 3018065
15	WCI 3018047
16	PLUG-DISPENSER FILL
17	WCI 3018056
18	WCI 3018048
19	WCI 3018062
20	WCI 3018181
20	WCI 3018180
20	WCI 3018178
20	WCI 3018063
20	WCI 3018179
21	WCI 3018060
22	TRIM-RH DOOR PANEL
23	WCI 3202540
24	WCI 3202856
25	WCI 3202661
26	WCI 3018058
27	WCI 3018184
28	TRIM-TOP ACCESS PNL
29	WCI 3018185
30	5304480396 Frigidaire Screw
31	TRIM-BOTTOM ACCESS PANEL
32	TRIM-LH ACCESS PNL
33	TRIM-LH-DOOR PANEL
34	5300807601 Frigidaire Dishwasher Spring
35	WCI 3018054
36	WCI 3014666
37	5303013272 Frigidaire Oven Nut
38	WCI 3202534
39	WCI 3018174
