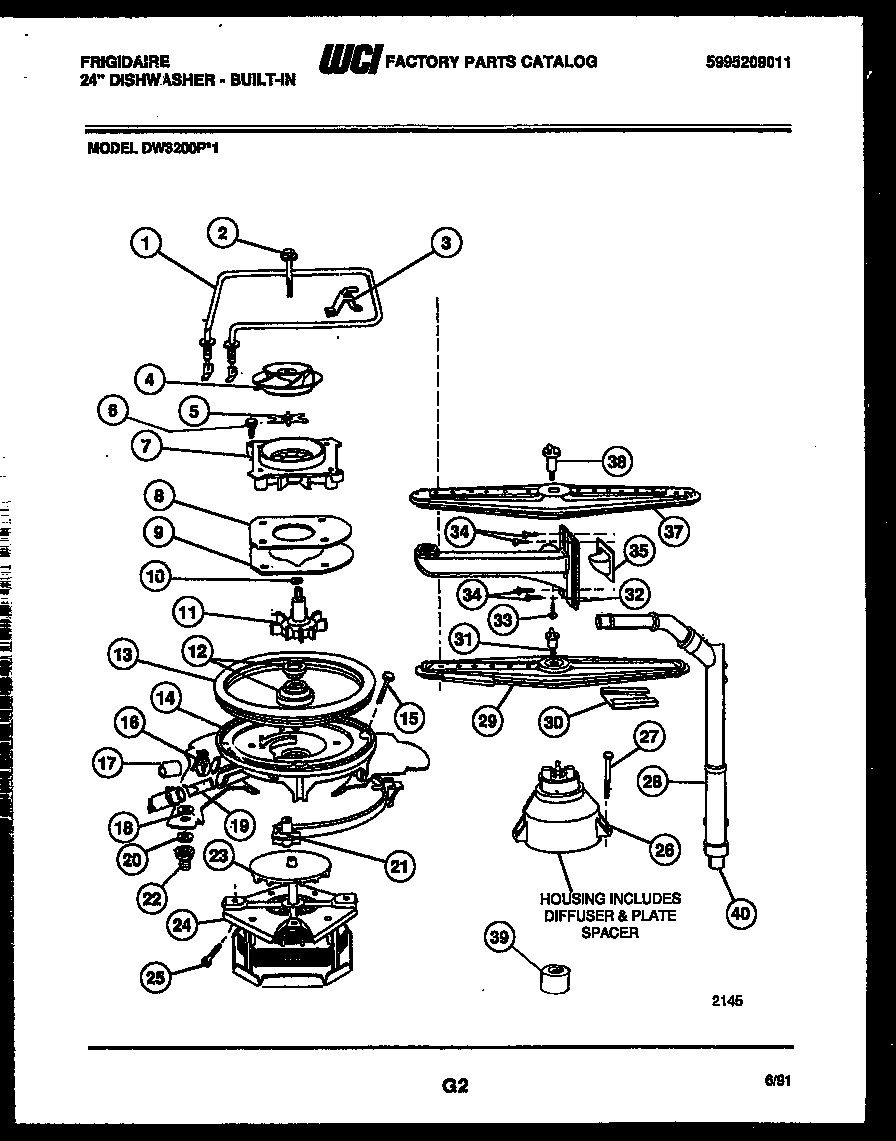

DW3200PW1 06 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 5300809584
2	WCI 5300806353
3	HEATER BRACKET
3A	SCREW-BRACKET (2)
4	5300809918 Frigidaire Dishwasher Upper Impeller
5	5300809920 Frigidaire Dishwasher Blade Assembly
7	WCI 5300809921
8	WCI 5300807884
9	5300809586 Frigidaire Dishwasher Gasket
10	5300806521 Frigidaire Dishwasher Filter O-Ring
11	PUMP IMPELLER KIT
12	WCI 5300803903
13	5300807709 Frigidaire Dishwasher Gasket
14	WCI 5300809589
15	WCI 5300807268
16	CLAMP
17	WCI 5300809628
18	WASHER
19	WCI 5300809937
20	5300809983 Frigidaire Washer
21	WCI 5300809590
22	154106202 Frigidaire Dishwasher Heater Nut
23	WCI 5300809366
24	WCI 5300809984
25	WCI 5300809022
26	WCI 5300809953
27	WCI 5300807359
28	WCI 5300807151
29	WCI 5300810015
30	WCI 5300809938
32	WCI 5300809019
33	SCREW-8 X 1/2“
34	SCREW NO. 8 X 3/4“ (4)
35	WCI 5300805781
37	SPRAY ARM ASSEMBLY
38	WCI 5300809018
39	WCI 5300803923
40	WCI 5300806989
