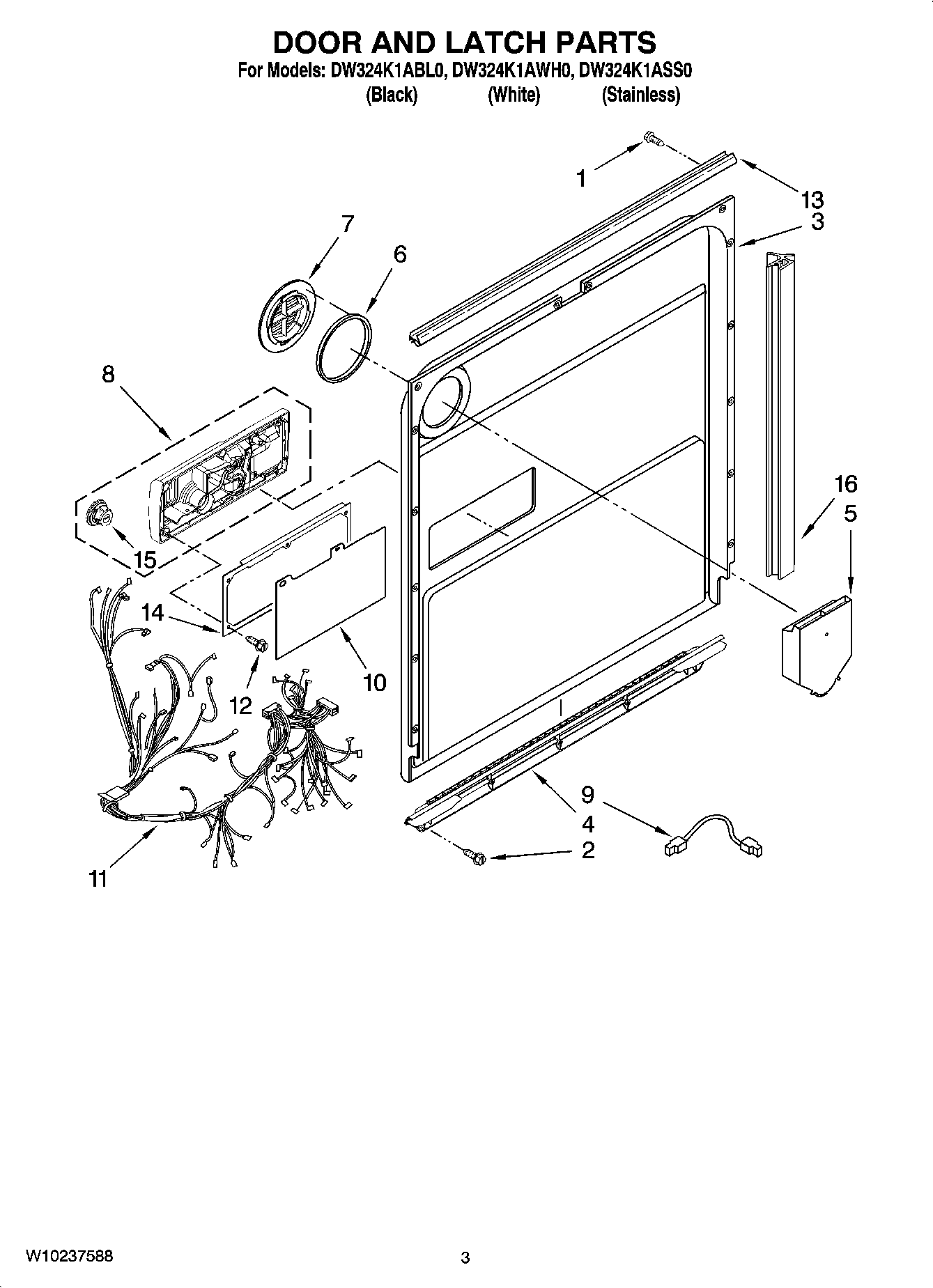

DW324K1ABL0 03 – DOOR AND LATCH PARTS

DW324K1ABL0 03 – DOOR AND LATCH PARTS

Written by

in

DW324K1ABL0 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)
4WPW10077883 Whirlpool Dishwasher Air Inlet
5WP8572611 Whirlpool Air Duct Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WPW10077877 Whirlpool Air Vent Deflector
8WPW10224430 Whirlpool Dishwasher Detergent Dispenser
9Harness, Vent Motor
10WP8531865 Whirlpool Dishwasher Door Shield
11Wiring Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WP8535660 Whirlpool Dishwasher Seal
14WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
15WP8564929 Whirlpool Rinse Aid Cap
168574160 Whirlpool Dishwasher Seal
