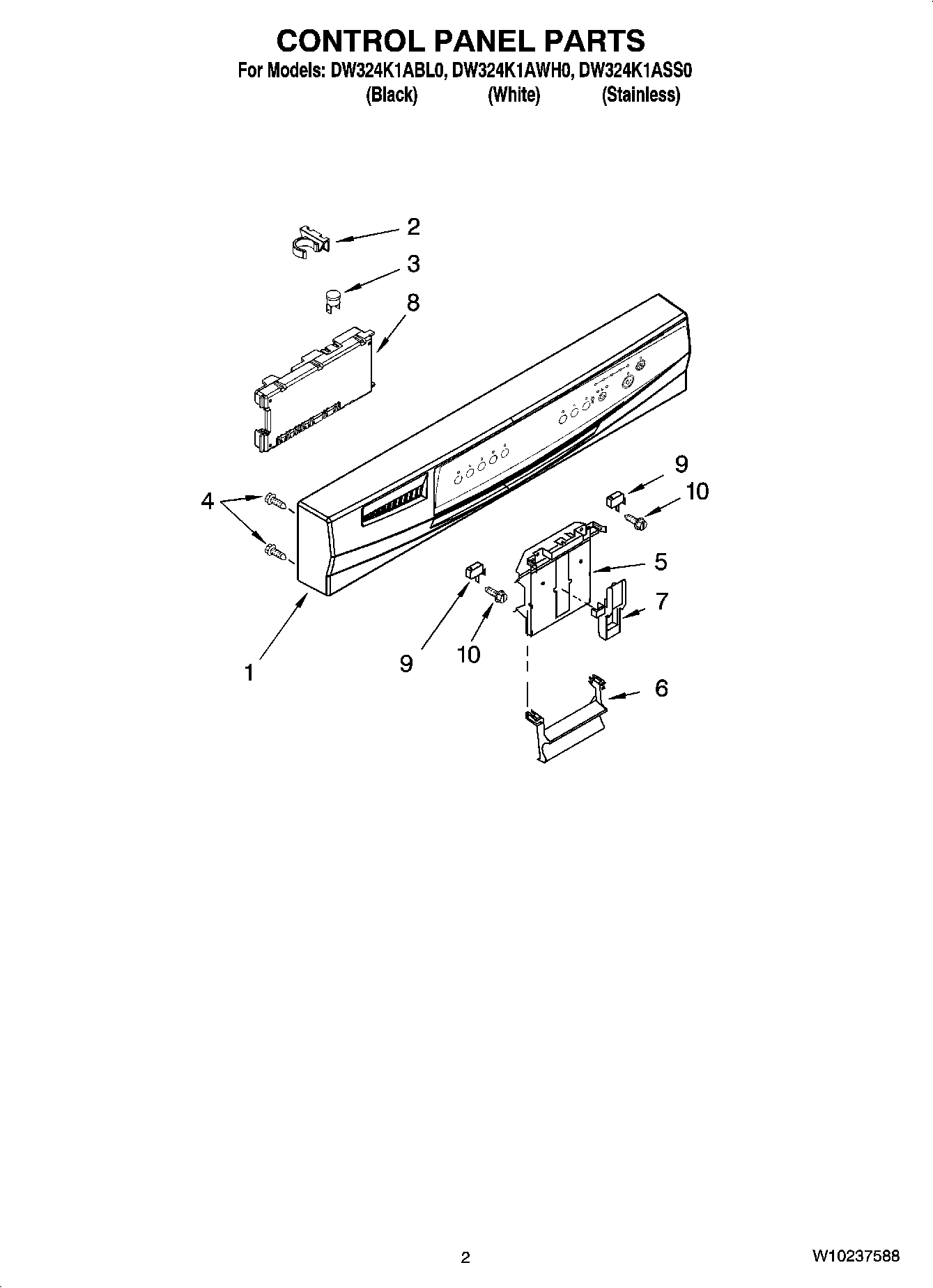

DW324K1ASS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WPL W10167822
1	WPL W10167821
2	Clip, BI-Metal
3	W10258275 Whirlpool Dishwasher Bimetal Fuse
4	WPW10348409 Whirlpool Screw
5	8193882 Whirlpool Dishwasher Primary Latch Bolt
6	W10127605 Whirlpool Dishwasher Handle
6	W11684608 Whirlpool Handle Assembly
7	WP8524471 Whirlpool Dishwasher Actuator
8	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
9	WPW10134019 Whirlpool Dishwasher Switch
10	WP3400412 Whirlpool Dishwasher Screw
