DW489C129 04 – PUMP & MOTOR ASSEMBLY – Aparts

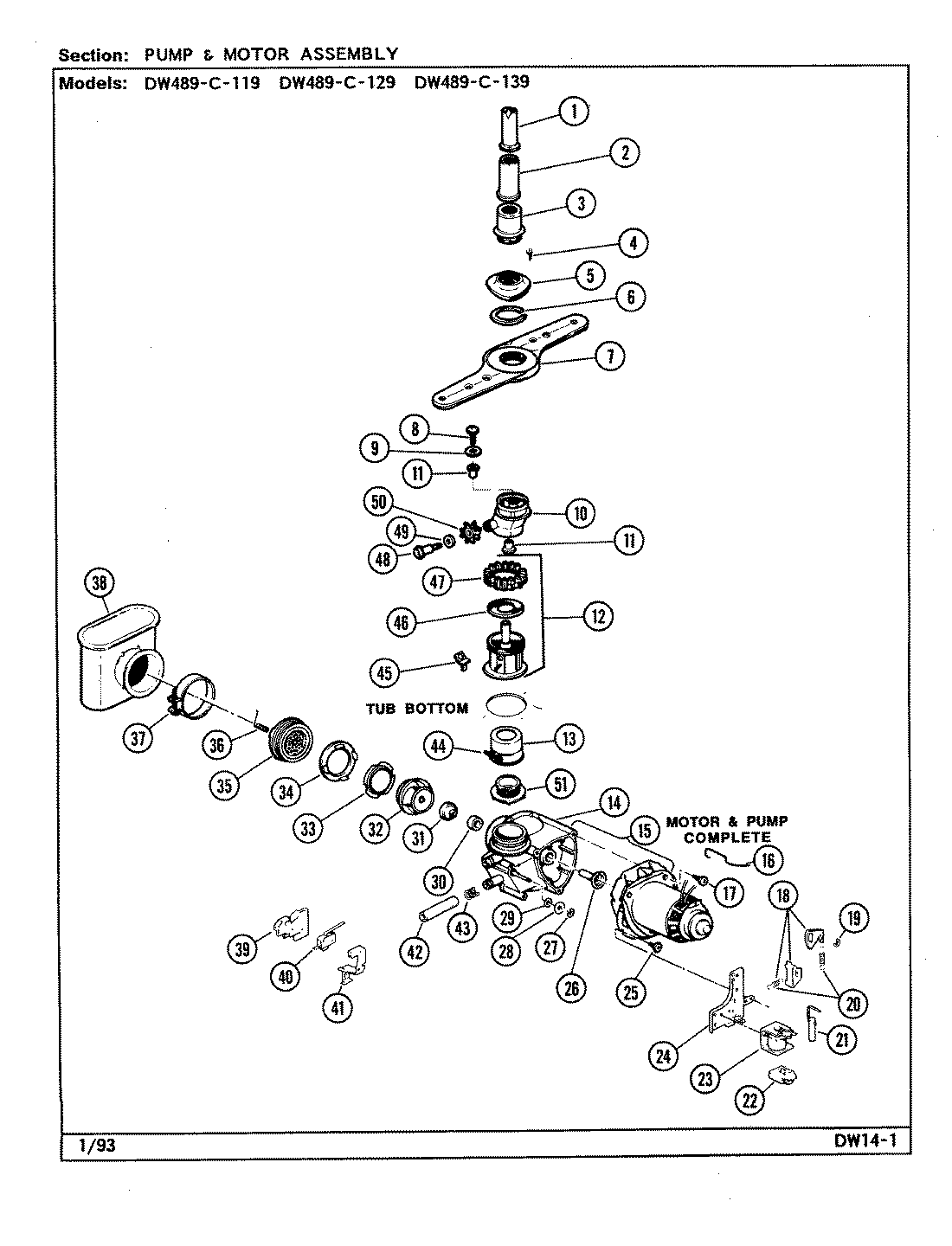

DW489C129 04 – PUMP & MOTOR ASSEMBLY

Products

Position	Product
1	MAY WD22M18
2	MAY 3175-0001
3	MAY WD22M20
4	MAY 3005-0008
5	MAY 2005-0001
6	MAY 3010-0017
7	MAY Y03000056
8	MAY 3005-0044
9	MAY 3280-0001
10	MAY 2540-0003
11	MAY 2095-0001
12	MAY 3130-0023
13	MAY 2260-0009
14	MAY 2535-0001
15	MAY 2720-0001
16	MAY 2510-0002
17	MAY 3005-0113
18	MAY 2020-0004
19	MAY 2940-0001
20	MAY 3070-0002
21	MAY 2025-0001
22	MAY 2590-0001
23	MAY 2250-0001
24	MAY 2145-0001
25	MAY 3005-0014
26	MAY 3040-0008
26	MAY 3050-0001
27	MAY 2735-0041
28	MAY 3280-0024
29	MAY 3010-0002
30	MAY 3010-0003
31	MAY 3010-0004
32	MAY 2560-0003
33	MAY 2945-0001
34	MAY 2085-0001
35	MAY 2465-0002
36	MAY 3070-0001
37	MAY 2235-0008
38	MAY 2575-0004
39	MAY 2485-0003
40	MAY 3135-0005
41	MAY 2145-0059
42	MAY 2530-0009
43	MAY 2235-0004
44	MAY 2235-0007
45	MAY WD2M49
46	MAY 3010-0018
47	MAY 2735-0032
48	MAY 3005-0138
49	MAY 3280-0036
50	MAY 2451-0001
