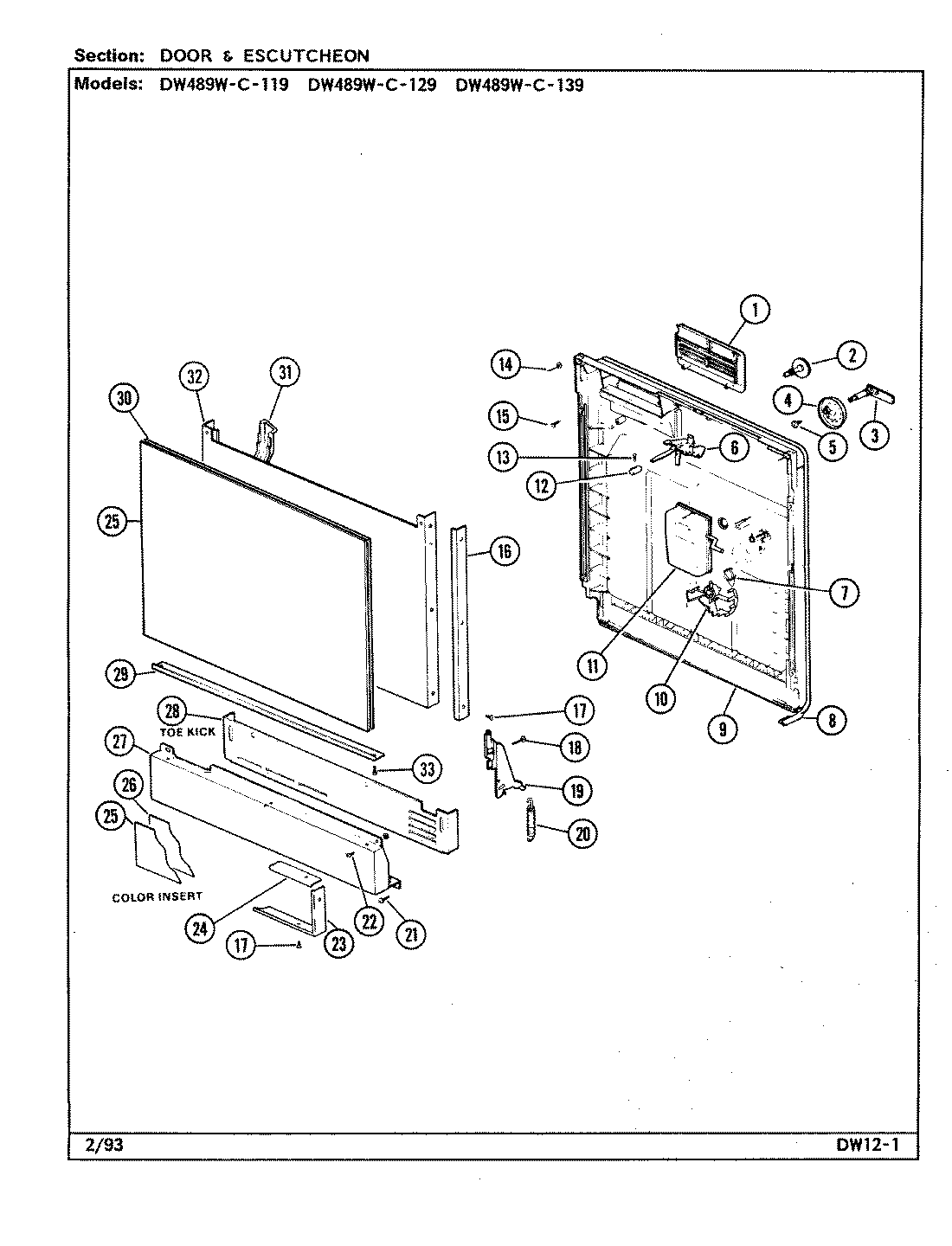

DW489WC129 03 – DOOR ASSEMBLY (DW489WC119,129,139)

DW489WC129 03 – DOOR ASSEMBLY (DW489WC119,129,139)

Written by

in

DW489WC129 03 – DOOR ASSEMBLY (DW489WC119,129,139)

Products

PositionProduct
1MAY 3265-0002
2MAY WD12M69
3MAY 3020-0007
4COVER,DETERGENT CUP
5MAY 3005-0113
6MAY 2645-0003
7MAY 3070-0032
8MAY WD8M13
9MAY WD31M58
10MAY 2645-0014
11MAY 2570-0001
12MAY WD9M56
13MAY 3005-0029
14MAY 3005-0028
15MAY 3005-0032
16MAY 3230-0086
17MAY 3005-0031
18MAY WD3M62
19MAY WD14M4
19MAY WD14M3
20MAY 3070-0006
20MAY 3070-0016
21MAY 3005-0033
22MAY 03000051
23MAY 3230-0089
24MAY 3230-0088
25MAY WD27M257
26MAY 2590-0012
27MAY WD27M253
28TOE KICK
29MAY WD34M407
30MAY 2590-0010
31MAY WD12M74
32MAY WD27M251
33MAY 3005-0014
33MAY DC498UA
