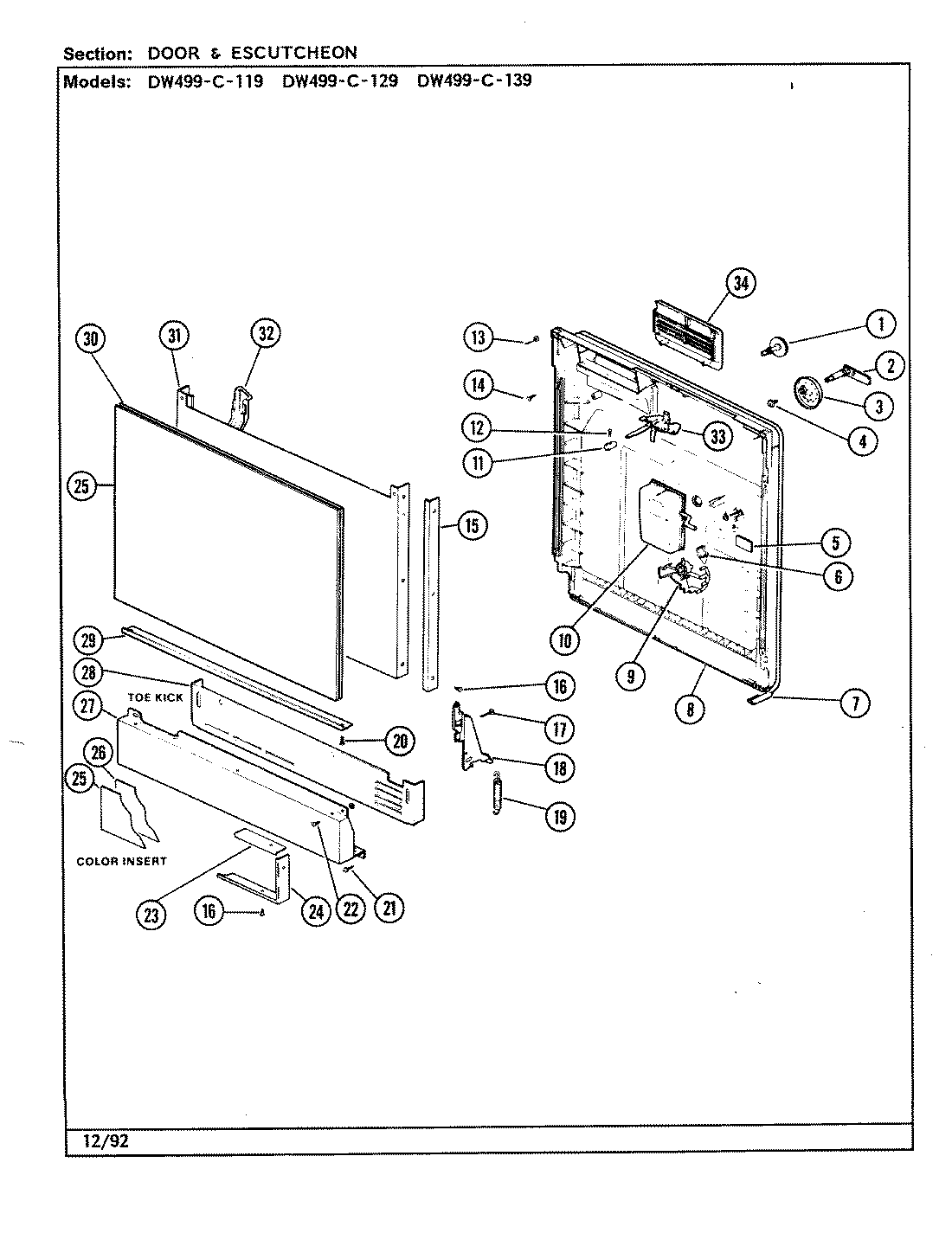

DW499C129 02 – DOOR ASSEMBLY

DW499C129 02 – DOOR ASSEMBLY

Written by

in

DW499C129 02 – DOOR ASSEMBLY

Products

Position	Product
1	MAY WD12M69
2	MAY 3020-0007
3	COVER,DETERGENT CUP
4	MAY 3005-0113
5	MAY 2307-0001
6	MAY 3070-0032
7	MAY WD8M13
8	MAY WD31M58
9	MAY 2195-0011
10	MAY 2570-0001
11	MAY WD9M21
12	MAY 3005-0029
13	MAY 3005-0028
14	MAY 3005-0032
15	MAY 3230-0086
16	MAY 3005-0031
17	MAY WD3M62
18	MAY WD14M3
18	MAY WD14M4
19	MAY WD2M171
20	MAY 3005-0014
21	MAY 3005-0033
22	MAY 3005-0025
23	MAY 3230-0088
24	MAY 3230-0089
25	MAY WD27M257
26	MAY 2590-0012
27	MAY WD27M253
28	TOE KICK
29	MAY WD34M407
30	MAY 2590-0010
31	MAY WD27M254
32	MAY WD12M70
33	MAY 2645-0003
34	MAY DC498UA
34	MAY 3265-0002
