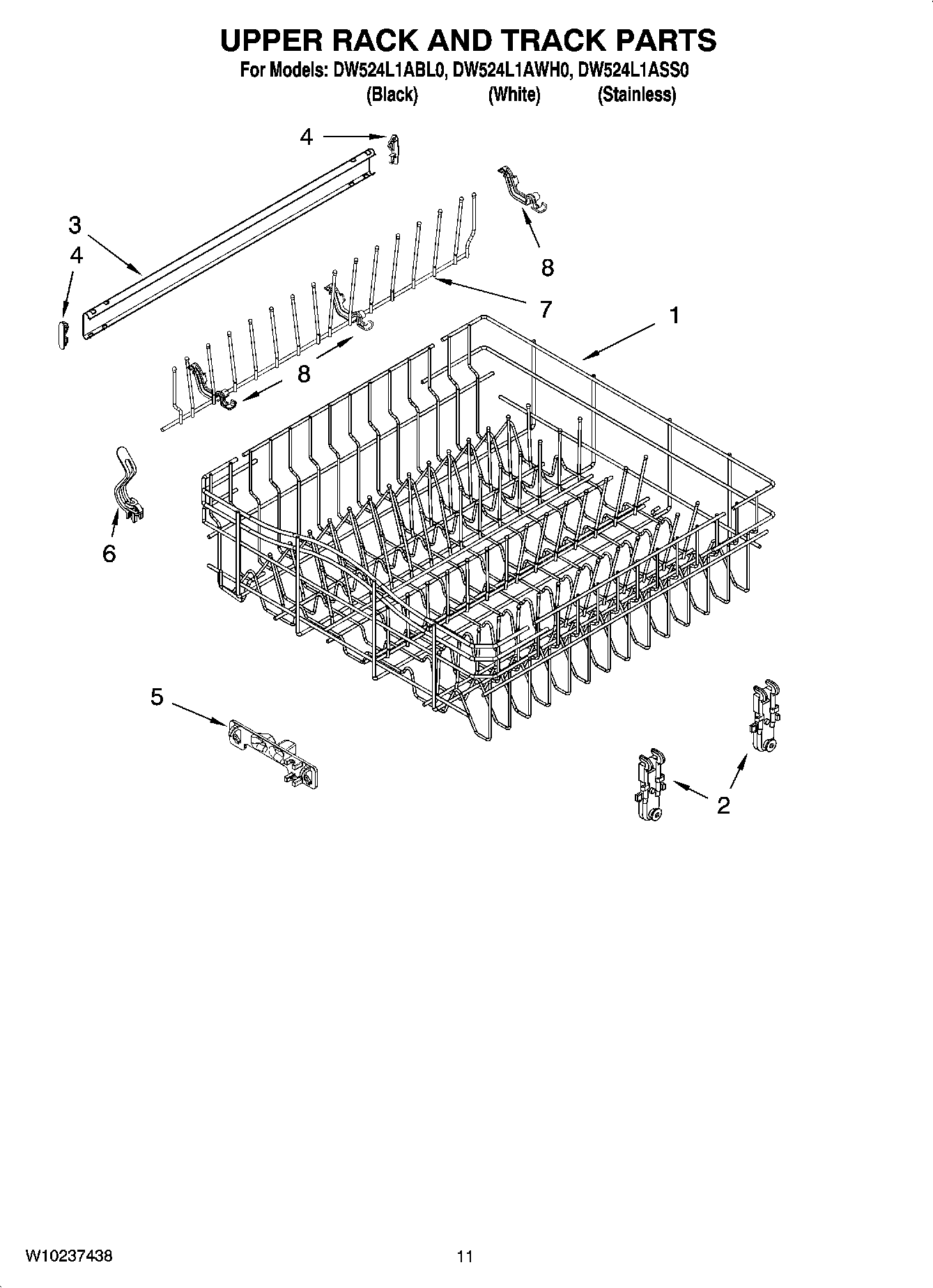

DW524L1ABL0 09 – UPPER RACK AND TRACK PARTS

DW524L1ABL0 09 – UPPER RACK AND TRACK PARTS

Written by

in

DW524L1ABL0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2WPW10078214 Whirlpool Upper Bracket Roller
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
5WP8539102 Whirlpool Dishwasher Positioner
6WP8539101 Whirlpool Dishwasher Clip
7W10727426 Whirlpool Dishwasher Rack Tine
8WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
