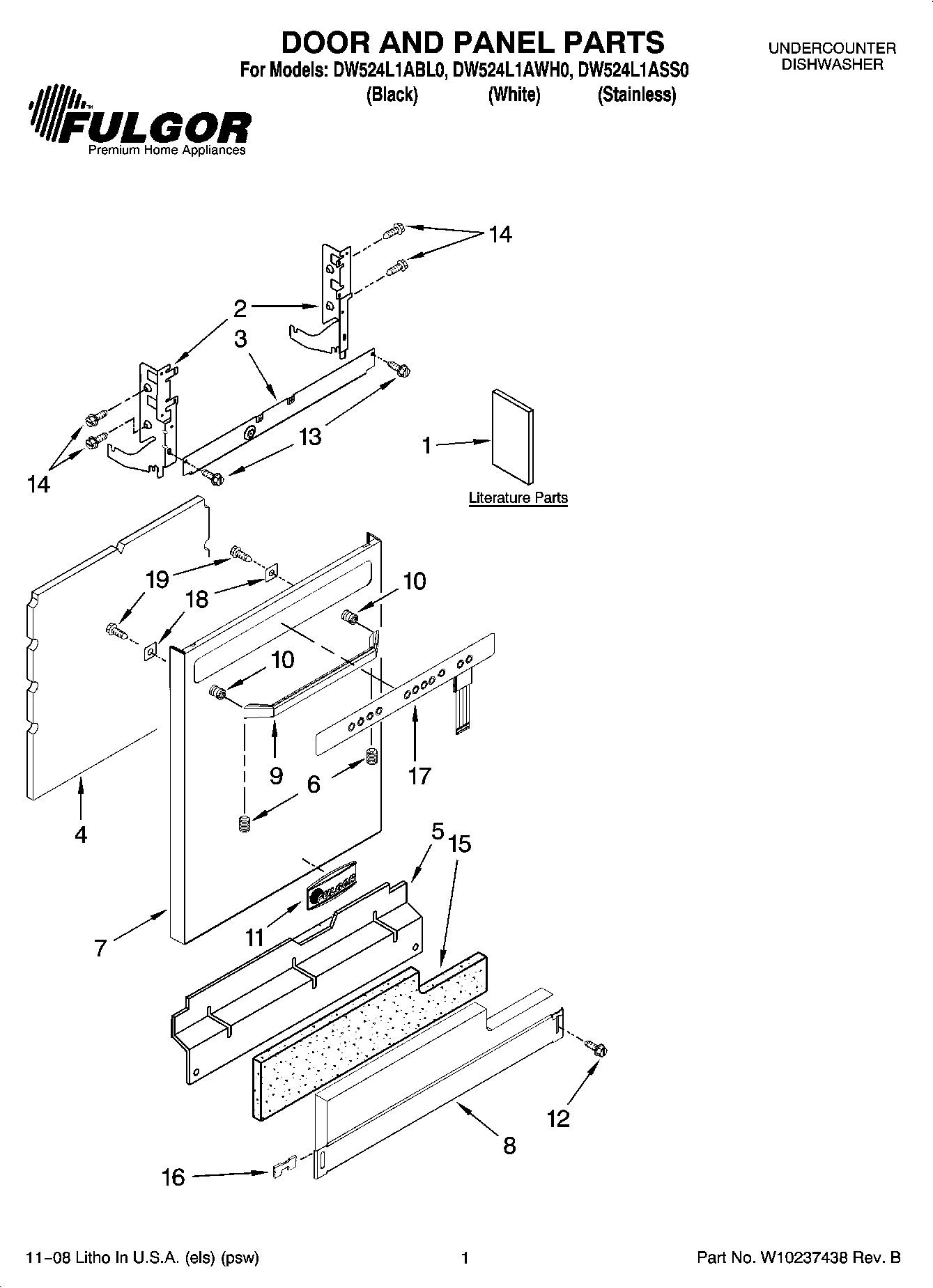

DW524L1AWH0 01 – DOOR AND PANEL PARTS

DW524L1AWH0 01 – DOOR AND PANEL PARTS

Written by

in

DW524L1AWH0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1WPL W10167761
1Tech Sheet
1WPL W10167758
1WPL W10167794
1WPL W10167757
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPL W10167808
7WPL W10167774
7WPL W10167776
7WPL W10167775
8W10799406 Whirlpool Dishwasher Toe Panel
9WPL W10167804
9WPL W10167803
9WPL W10167805
10WP8564951 Whirlpool Dishwasher Stud
11WPL W10167773
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP3400071 Whirlpool Screw
15SHIELD
16WP8269016 Whirlpool Clip Assembly
17WPL W10167771
17WPL W10167772
18Plates, Backing
19Screw
