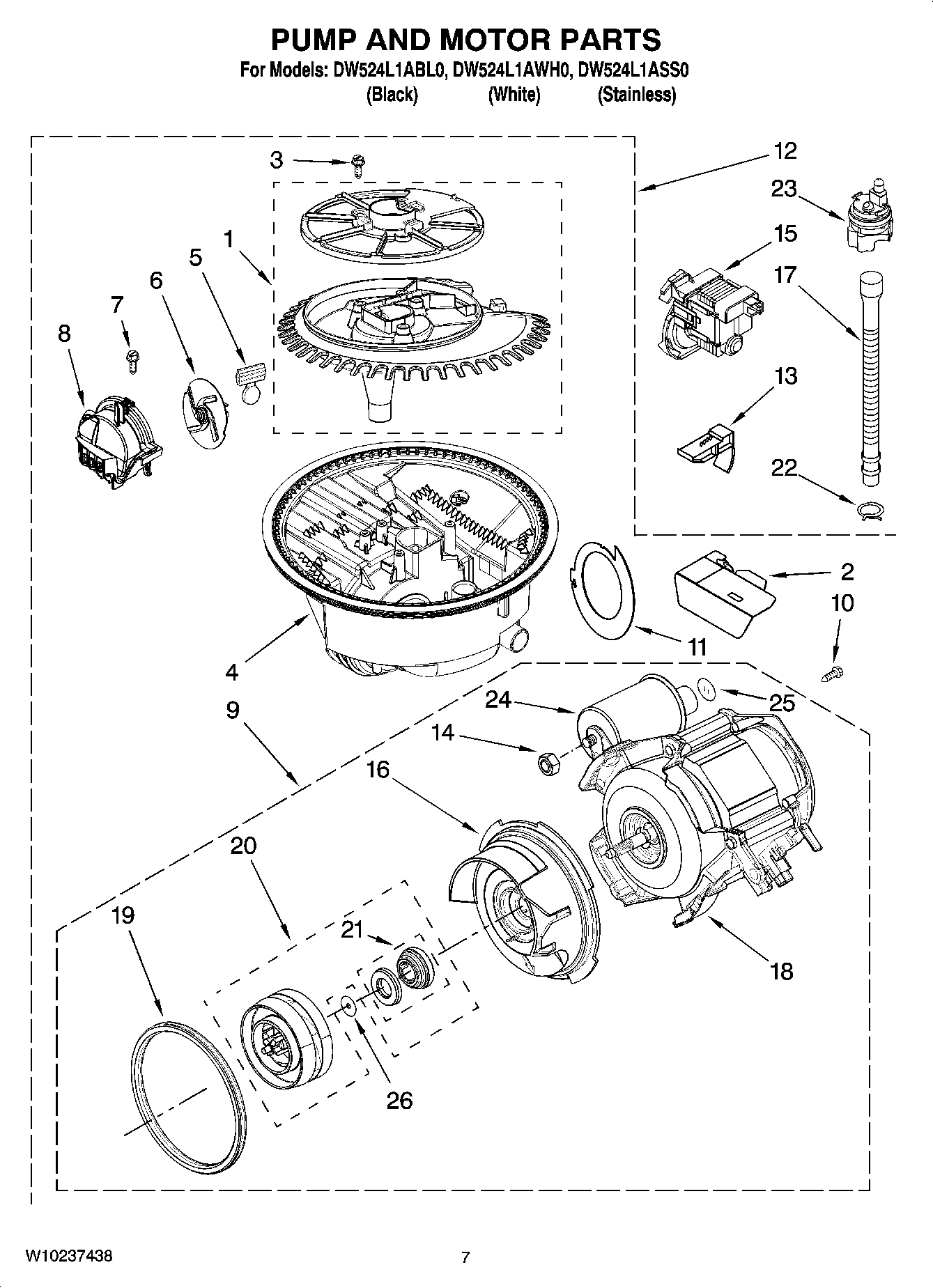

DW524L1AWH0 06 – PUMP AND MOTOR PARTS

DW524L1AWH0 06 – PUMP AND MOTOR PARTS

Written by

in

DW524L1AWH0 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
18193918 Whirlpool Accumulator
28283527 Whirlpool Shield
3Screw
4WP8572618 Whirlpool Dishwasher Sump Assembly
5WP8268375 Whirlpool Dishwasher Check Valve
6W10083957V Whirlpool Dishwasher Chopper
7WP9741232 Whirlpool Dishwasher Screw
8WP8531857 Whirlpool Dishwasher Protector
103400217 Whirlpool Dishwasher Screw
11W10084567 Whirlpool Dishwasher Screen
12PUMP&MOTOR
13WPW10300599 Whirlpool Dishwasher Sump Tab
148533949 Whirlpool Dishwasher Nut
15WPW10348269 Whirlpool Washer Drain Pump
178269144A Whirlpool Dishwasher Drain Hose
18WPW10757217 Whirlpool Circulation Pump and Motor
19W11622922 Whirlpool Dishwasher Volute
218193951A Whirlpool Impeller Assembly
22WP356138 Whirlpool Hose Clamp
23WPW10705575 Whirlpool Dishwasher Sensor
24WPW10334457 Whirlpool Dishwasher Capacitor
258534946 Whirlpool Dishwasher Shield
26WP8531018 Whirlpool Dishwasher Washer
