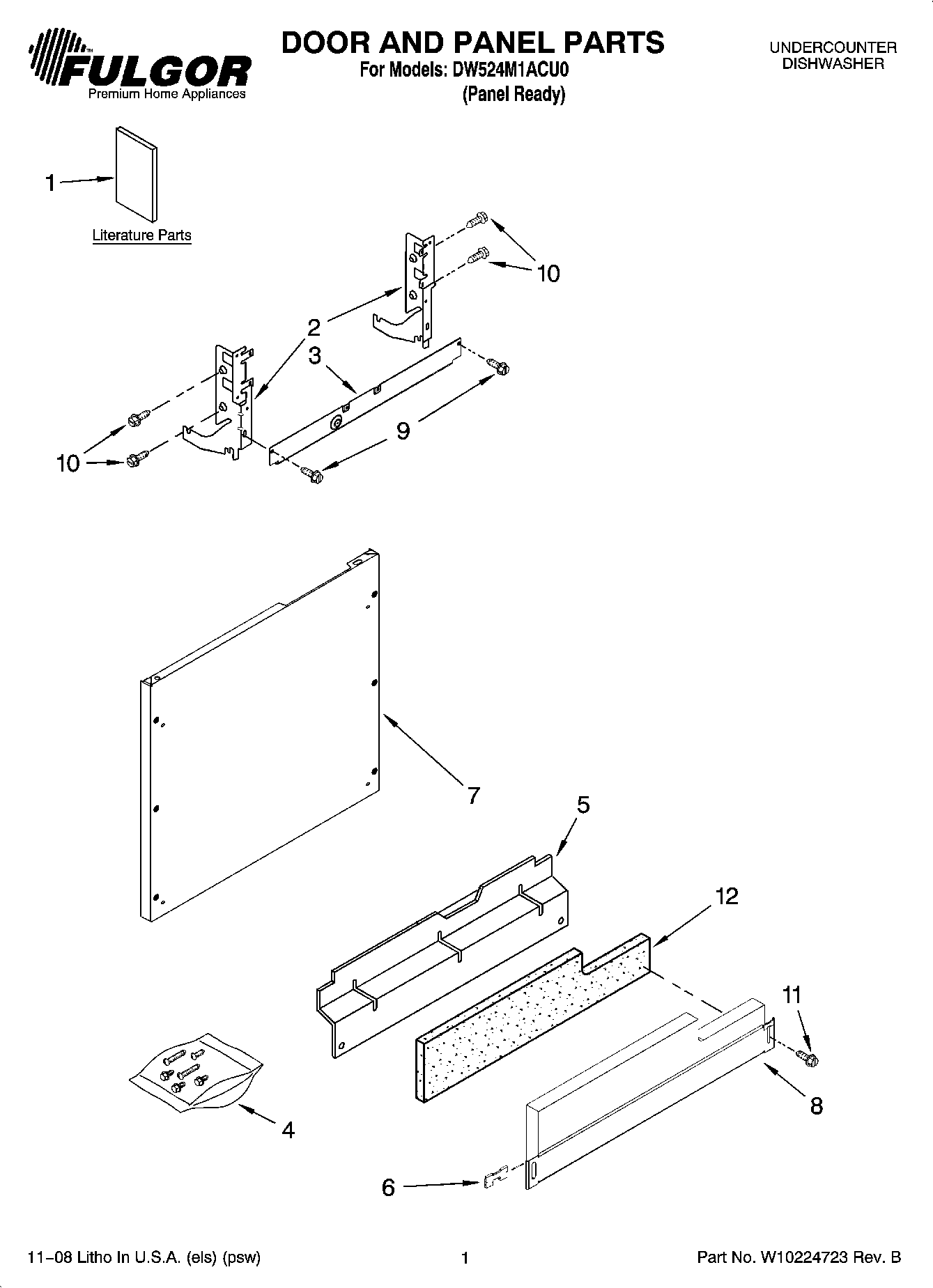

DW524M1ACU0 01 – DOOR AND PANEL PARTS

DW524M1ACU0 01 – DOOR AND PANEL PARTS

Written by

in

DW524M1ACU0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1WPL W10167794
1WPL W10167757
1WPL W10167758
1WPL W10167761
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Screws, Bag Door Assembly
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
7W11113792 Whirlpool Dishwasher Panel
9WP302868 Whirlpool Screw
10WP489069 Whirlpool Compactor Screw
11WP3400071 Whirlpool Screw
12SHIELD
