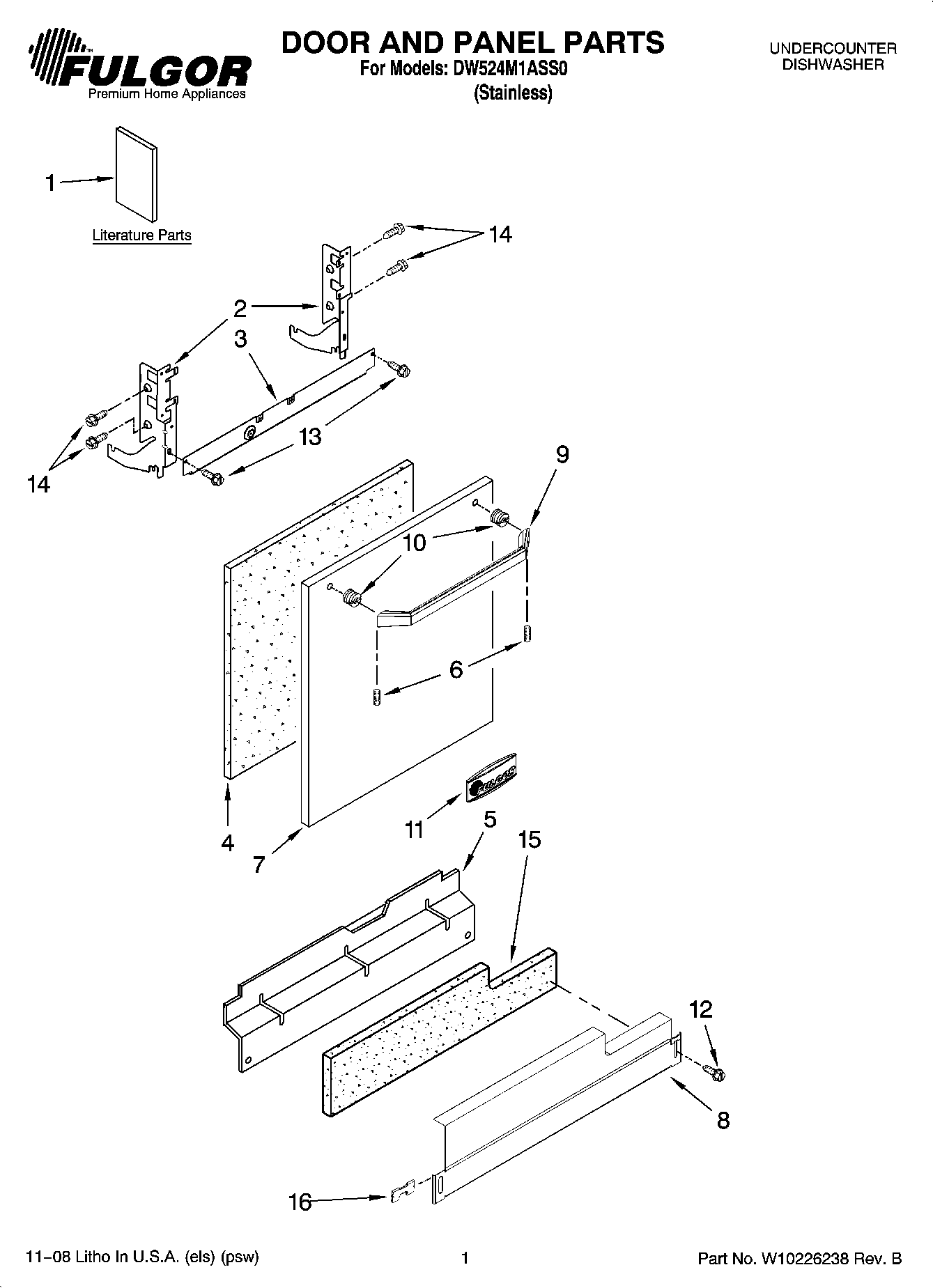

DW524M1ASS0 01 – DOOR AND PANEL PARTS

DW524M1ASS0 01 – DOOR AND PANEL PARTS

Written by

in

DW524M1ASS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1WPL W10167758
1WPL W10167794
1Tech Sheet
1WPL W10167757
1WPL W10167761
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8534008 Whirlpool Screw
7Panel, Front (Includes Items 4, 10 & 11) (Stainless)
9WPL W10167805
10WP8564951 Whirlpool Dishwasher Stud
11WPL W10167773
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP3400071 Whirlpool Screw
15SHIELD
16WP8269016 Whirlpool Clip Assembly
