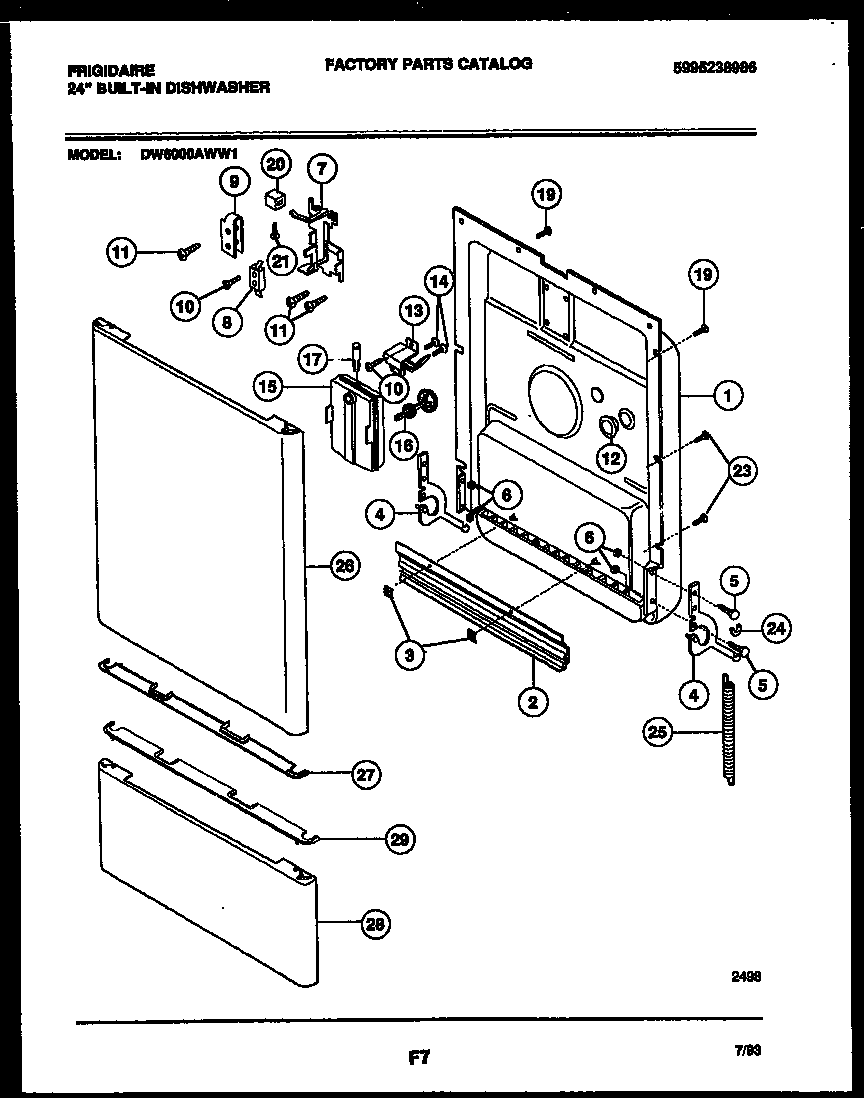

DW6000AWL1 04 – DOOR PARTS

Products

Position	Product
1	WCI 5300809931
2	WCI 5300809773
3	WCI 154026601
4	WCI 5303270031
5	154093301 Frigidaire Dishwasher ARM Assembly Screw
6	5303013272 Frigidaire Oven Nut
8	WCI 5300809934
9	WCI 5300809933
10	SCREW-6-32 X 1``
11	218781101 Frigidaire Handle Screw
13	WCI 5300809782
14	WCI 5300807501
15	WCI 5300806753
16	WCI 154121401
17	WCI 5300809898
19	SCREW-8 X 5/8`` (2)
21	WCI 5300808715
24	WCI 5300805884
25	5300809703 Frigidaire Dishwasher Door Spring
26	DOOR-PANEL-ALMOND
27B	WCI 5300809055
27A	CLIP-ATTACH (4) (NON-ILLUSTRATED)
27	WCI 154121902
28	ACCESS-PANEL-ALMOND
29	TRIM-ACCESS TOP-ALMOND
