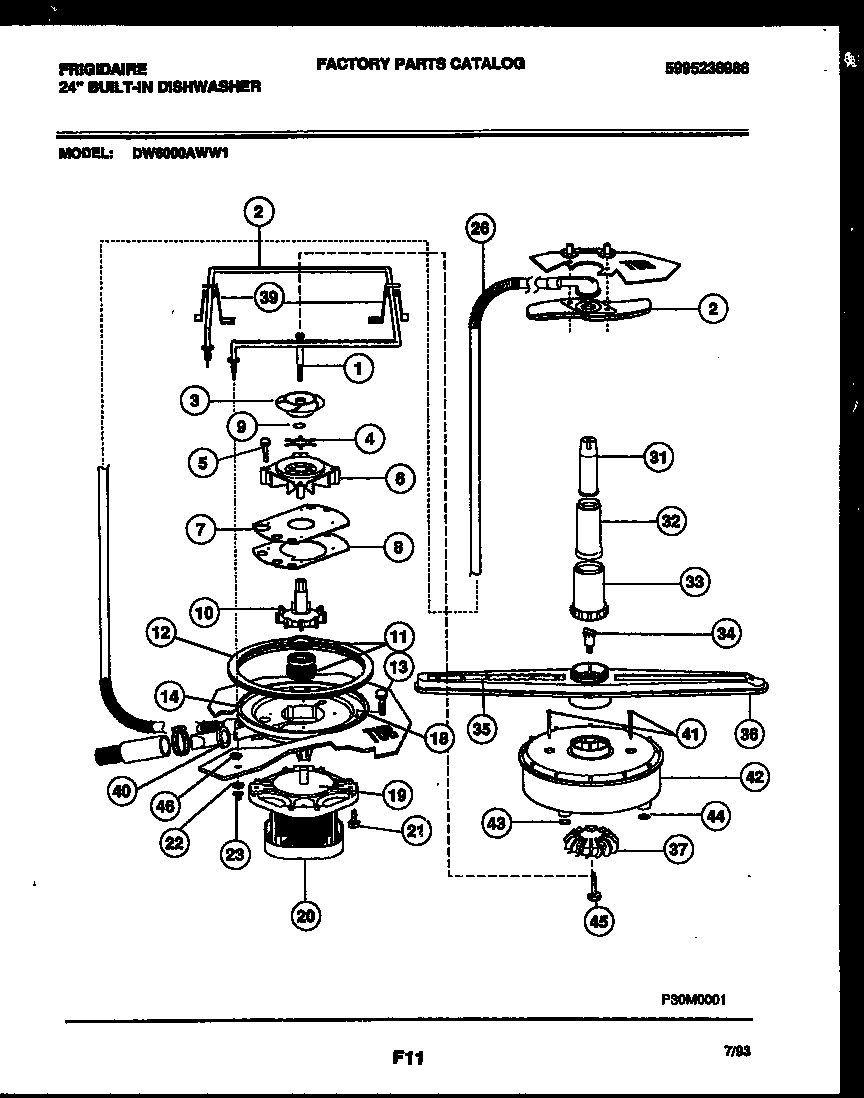

DW6000AWW1 06 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 5300806353
2	WCI 5300809584
3	5300809918 Frigidaire Dishwasher Upper Impeller
4	5300809920 Frigidaire Dishwasher Blade Assembly
5	WCI 5300807359
6	WCI 5300809921
7	WCI 5300809006
8	WCI 5300809007
9	5300806521 Frigidaire Dishwasher Filter O-Ring
10	WCI 5300809909
11	WCI 5300803903
12	5300809586 Frigidaire Dishwasher Gasket
13	WCI 5300807268
14	PUMP HOUSING
14A	CLAMP
14B	WCI 5300808174
18	WCI 5300809590
19	WCI 5300809366
20	WCI 5300809984
21	WCI 5300809022
22	WASHER
23	154106202 Frigidaire Dishwasher Heater Nut
26	WCI 154119301
27	WCI 154119401
27A	WCI 154126401
31	WCI 154122701
32	WCI 154122601
33	WCI 154122501
34	WCI 5300809018
35	WCI 5300809954
36	WCI 5300809938
37	WCI 5300809014
39A	SCREW-BRACKET (2)
39	HEATER BRACKET
40	WCI 5300809937
41	SCREW-10 X 2 7/8``
44	FILTER BODY ASSEMBLY
45	SCREW-8 X 3/4``
46	WCI 154064901
