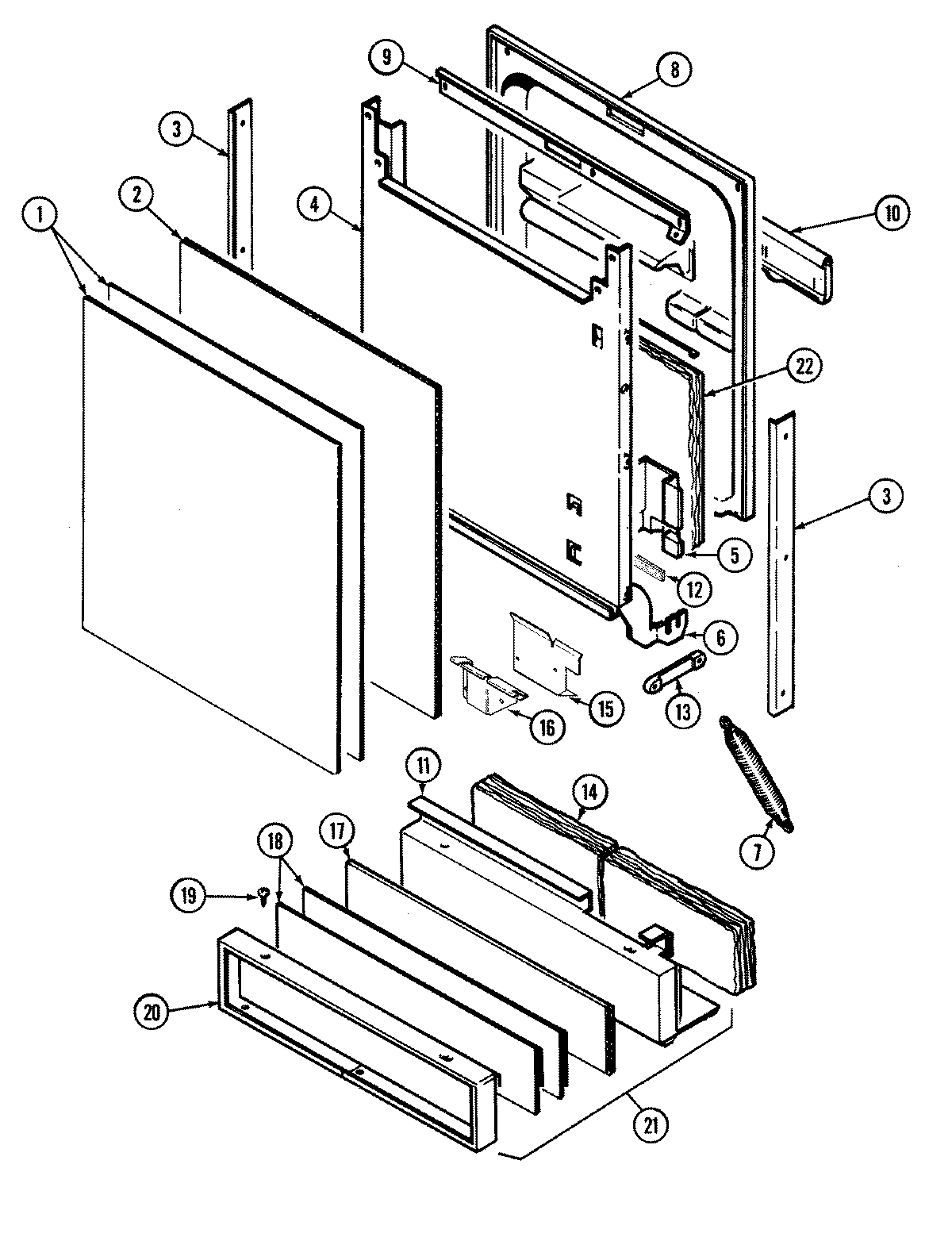

DW730A 03 – DOOR (DW730A)

DW730A 03 – DOOR (DW730A)

Written by

in

DW730A 03 – DOOR (DW730A)

Products

PositionProduct
1MAY 912519
1MAY 99001244
1MAY 912520
1MAY 912024
2MAY 912521
3MAY 99001242
3MAY 99001243
4WPW10339879 Whirlpool Wire Tie
4MAY 903821
5SCREW, No.8X1/2 HEX WASHER HEAD
5MAY Y912666
6MAY 99001075
6MAY 903070
6MAY 903071
7WP912652 Whirlpool Dishwasher Spring
8WPY912620 Whirlpool Dishwasher Screw
8MAY 903867
9MAY Y912668
10MAY 903108
11MAY 912636
12WPW10117748 Whirlpool Dishwasher Insulation Pad
13WP912653 Whirlpool Dishwasher Door Spring Link
14MAY Y912836
15MAY 912641
16WP6-912366 Whirlpool Dishwasher Screw
16MAY 912642
17MAY 912525
18MAY 912528
18MAY 912527
19MAY 912365
19MAY 99001246
20MAY 99001245
21MAY Y912669
