DW730B-CAN 06 – RINSE AID ASSEMBLY

DW730B-CAN 06 – RINSE AID ASSEMBLY

Written by

in

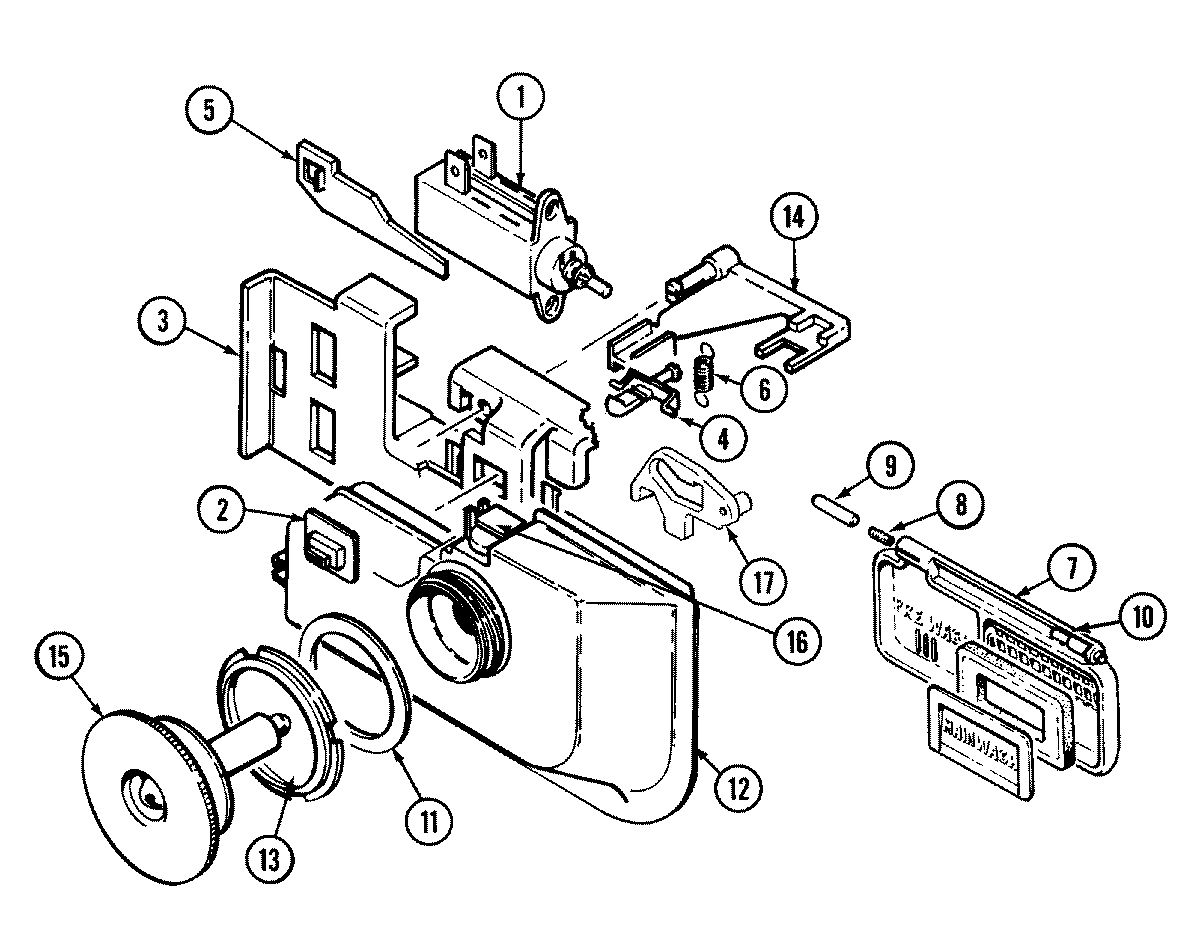

DW730B-CAN 06 – RINSE AID ASSEMBLY

Products

PositionProduct
1WP902899 Whirlpool Dishwasher Wax Motor
2MAY 912559
3MAY Y912673
4MAY Y912674
5MAY Y912675
6WPW10116816 Whirlpool Dishwasher Spring
7MAY 903108
8MAY Y912547
9WP6-912678 Whirlpool Hinge Pin
10WPY912679 Whirlpool Dishwasher Hinge Pin
11MAY Y913061
12MAY 903656
13MAY Y913060
14MAY 912576
15WP6-903123 Whirlpool Dishwasher Rinse Knob
16MAY 903124
