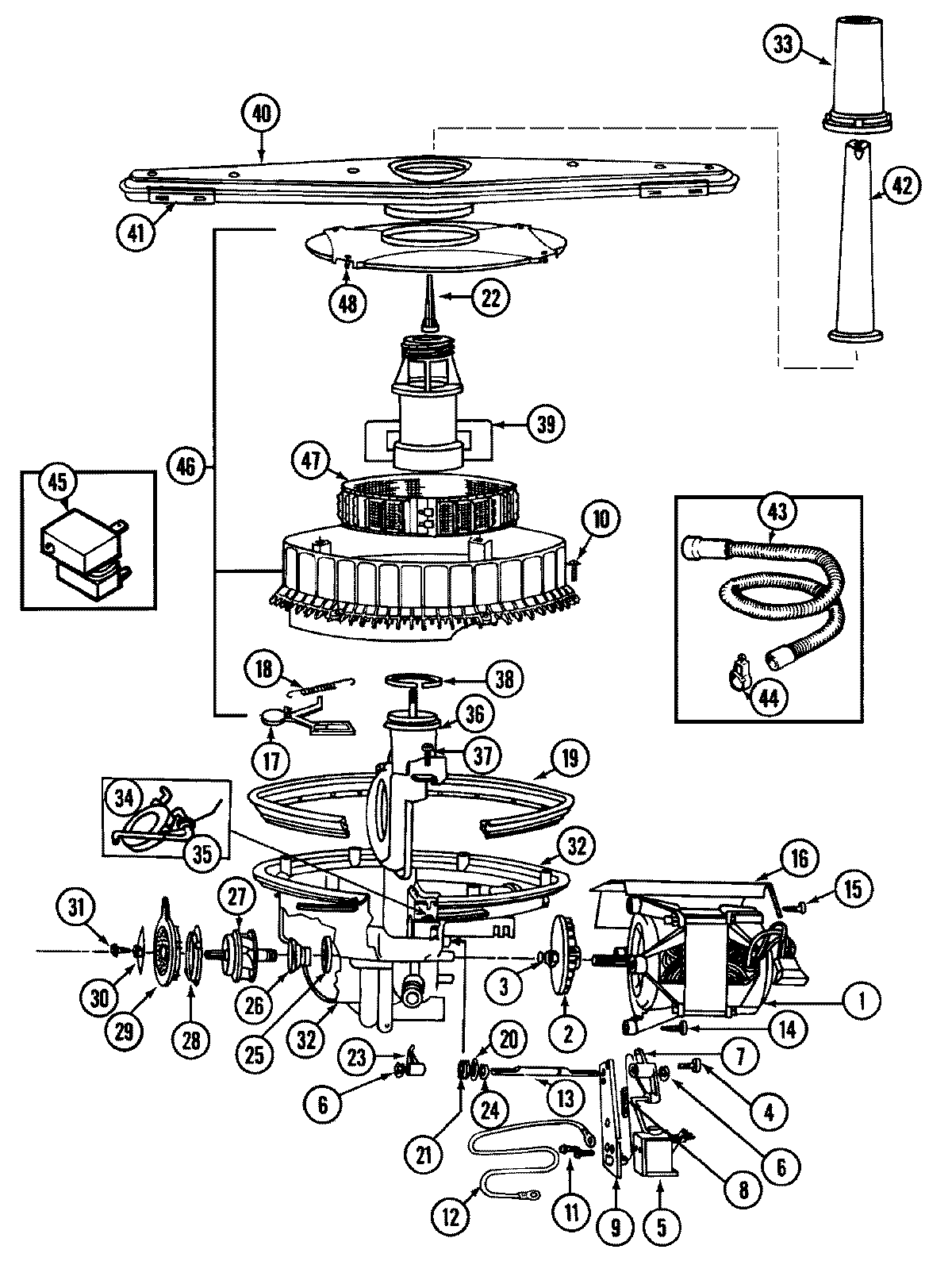

DW760B-CAN 04 – PUMP ASSEMBLY

Products

Position	Product
1	MAY 99001070
1	MAY 903936
2	MAY Y912903
2	MAY 99001145
3	MAY Y913173
3	MAY Y913174
5	WP6-904023 Whirlpool Drain Solenoid
6	MAY Y913109
7	MAY 913099
8	MAY Y913201
9	MAY Y913203
10	MAY 912622
12	MAY 903882
12	MAY 912365
13	MAY 913105
14	MAY Y912892
15	WP179051 Whirlpool Screw
16	MAY Y912931
17	MAY Y913135
18	MAY Y913134
19	MAY 912529
20	MAY 913106
21	WP913108 Whirlpool Dishwasher Seal
22	MAY Y912930
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
23	MAY Y913200
24	MAY 913110
25	MAY 903494
26	MAY 903493
27	MAY 903962
28	MAY Y912901
29	MAY Y912913
30	MAY Y913274
30	MAY Y912909
31	MAY 913275
32	MAY Y912902
33	WPY912899 Whirlpool Dishwasher Center Spray Nozzle
34	MAY Y912924
35	MAY Y913202
36	MAY Y912915
37	MAY Y912891
38	MAY Y912904
39	MAY Y912900
40	MAY 904026
41	MAY Y912895
42	WPY912912 Whirlpool Dishwasher Spray Tower
43	MAY Y913159
44	MAY 200900
45	MAY 912612
45	MAY 903482
46	MAY 903736
47	MAY Y913131
48	MAY Y913132
