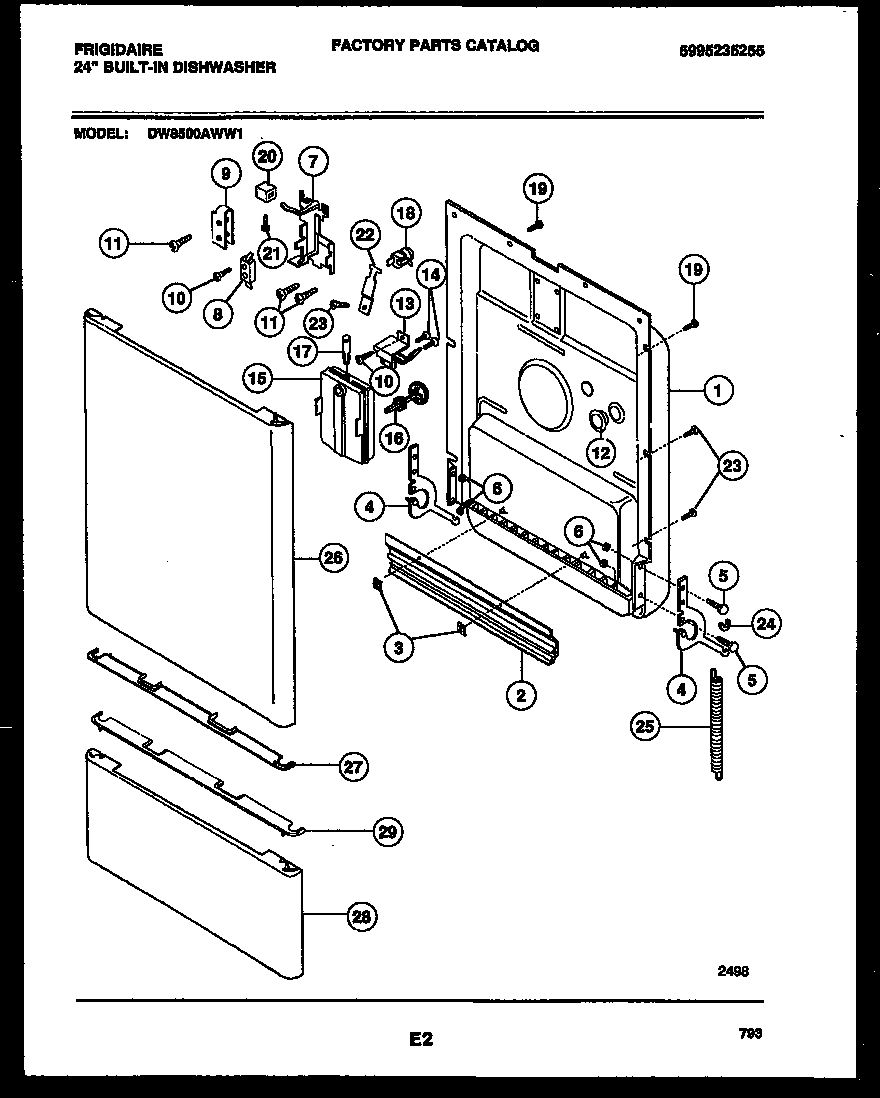

DW8500AWL1 04 – DOOR PARTS

DW8500AWL1 04 – DOOR PARTS

Written by

in

DW8500AWL1 04 – DOOR PARTS

Products

PositionProduct
1WCI 5300809931
3WCI 5300809773
3WCI 154026601
4WCI 5303270031
5154093301 Frigidaire Dishwasher ARM Assembly Screw
65303013272 Frigidaire Oven Nut
7WCI 5303281374
8WCI 5300809934
9WCI 5300809933
10SCREW-6-32 X 1“
11218781101 Frigidaire Handle Screw
13WCI 5300809782
14WCI 5300807501
15WCI 5300806753
16WCI 5303943094
17WCI 5300809898
18WCI 5303297402
19SCREW-8 X 5/8“ (2)
20LATCH – KNOB – ALMOND
21WCI 5300808715
22THERMOSTAT RETAINER
24WCI 5300805884
25DOOR SPRING
26DOOR-PANEL-ALMOND
27ACLIP-ATTACH (4) (NON-ILLUSTRATED)
27BWCI 5300809055
27WCI 154121902
28ACCESS-PANEL-ALMOND
29TRIM-ACCESS TOP-ALMOND
