DW861UQP 02 – CONTROL PANEL

DW861UQP 02 – CONTROL PANEL

Written by

in

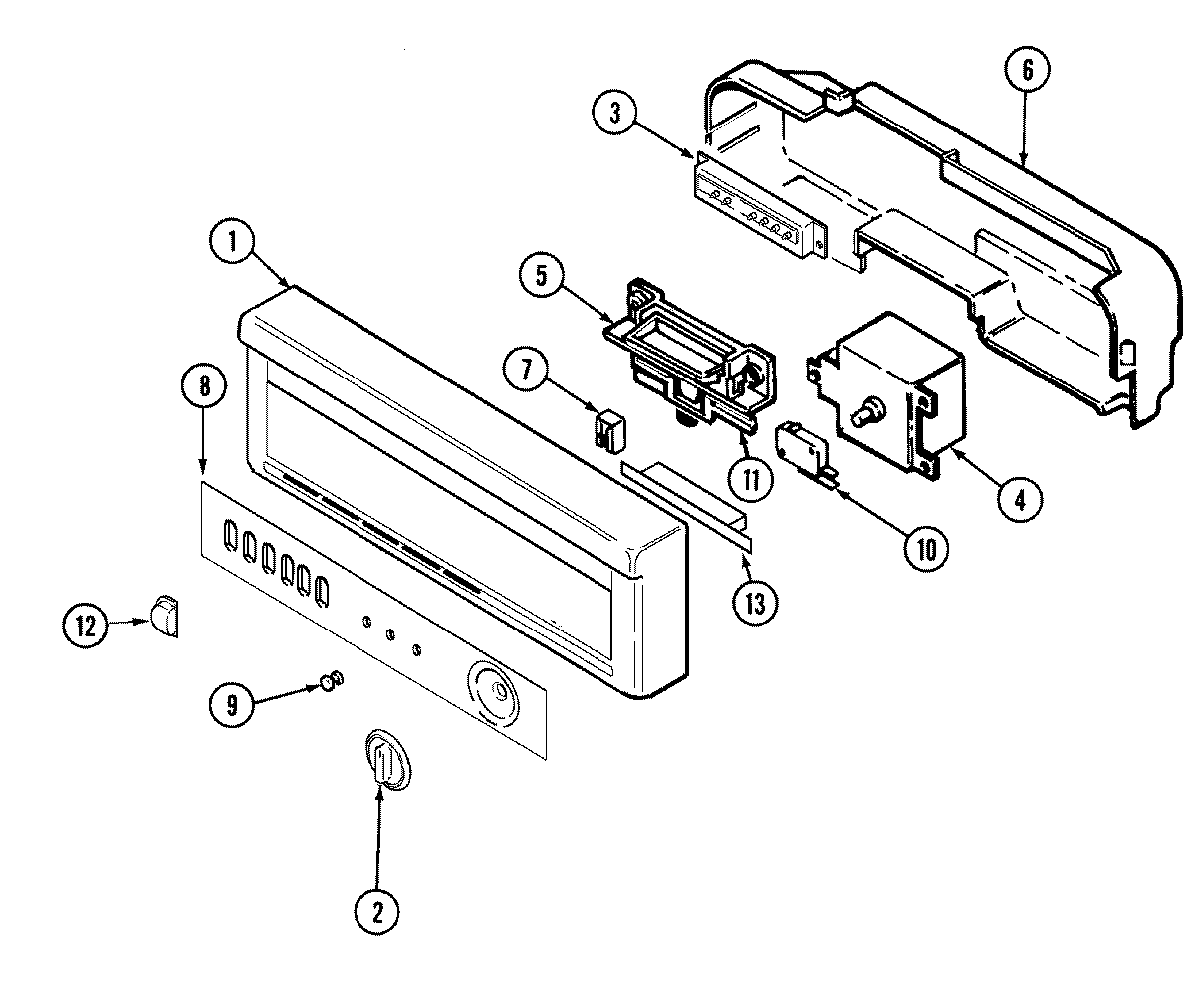

DW861UQP 02 – CONTROL PANEL

Products

PositionProduct
1MAY Y912700
1MAY 99001887
1MAY 99001886
1MAY 912699
1MAY 99001941
2MAY 99001698
2MAY 99001318
3MAY 99001671
4MAY 99001931
4MAY 99001672
5SCREW, No.8X1/2 HEX WASHER HEAD
599002254 Whirlpool Dishwasher Door Switch with Holder
6MAY 99001694
7WP903115 Whirlpool Dishwasher Indicator Light
8MAY 99001675
9MAY 99001319
10MAY 903086
11MAY 99001080
13MAY 99001097
14MAY 99001645
15MAY 99001563
