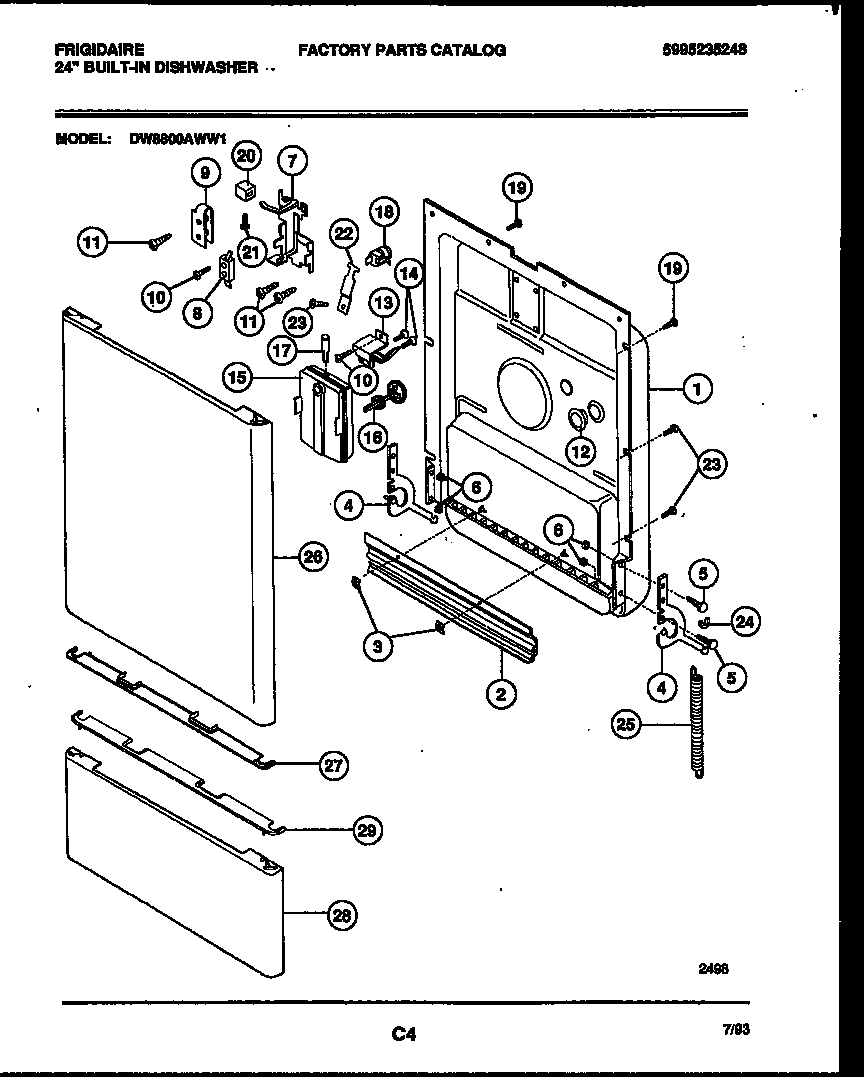

DW8800AWW1 04 – DOOR PARTS

DW8800AWW1 04 – DOOR PARTS

Written by

in

DW8800AWW1 04 – DOOR PARTS

Products

PositionProduct
1WCI 5300809931
2WCI 5300809773
3WCI 154026601
4WCI 5303270031
5154093301 Frigidaire Dishwasher ARM Assembly Screw
65303013272 Frigidaire Oven Nut
7WCI 5303270032
7WCI 5303281374
7WCI 5303270204
8WCI 5300809934
9WCI 5300809933
10SCREW-6-32 X 1“
11218781101 Frigidaire Handle Screw
12WCI 5300805631
13WCI 5300809782
14WCI 5300807501
15WCI 5300806753
16WCI 5303943094
17WCI 5300809898
18WCI 5303297402
19SCREW-8 X 5/8“ (2)
20WCI 5300808712
20LATCH – KNOB – ALMOND
20WCI 5303270210
21WCI 5300808715
22THERMOSTAT RETAINER
23154419403 Frigidaire Dishwasher Screw
24WCI 5300805884
25DOOR SPRING
26DOOR-PANEL-ALMOND
26DOOR-PANEL-WHITE
26DOOR-PANEL-BLACK
27ACLIP-ATTACH (4) (NON-ILLUSTRATED)
27WCI 154121903
27BWCI 5300809055
27WCI 154121901
27WCI 154121902
28ACCESS-PANEL-WHITE
28ACCESS PANEL-BLACK
28ACCESS-PANEL-ALMOND
29TRIM-ACCESS TOP-ALMOND
29TRIM-ACCESS TOP-BLACK
29WCI 154087801
