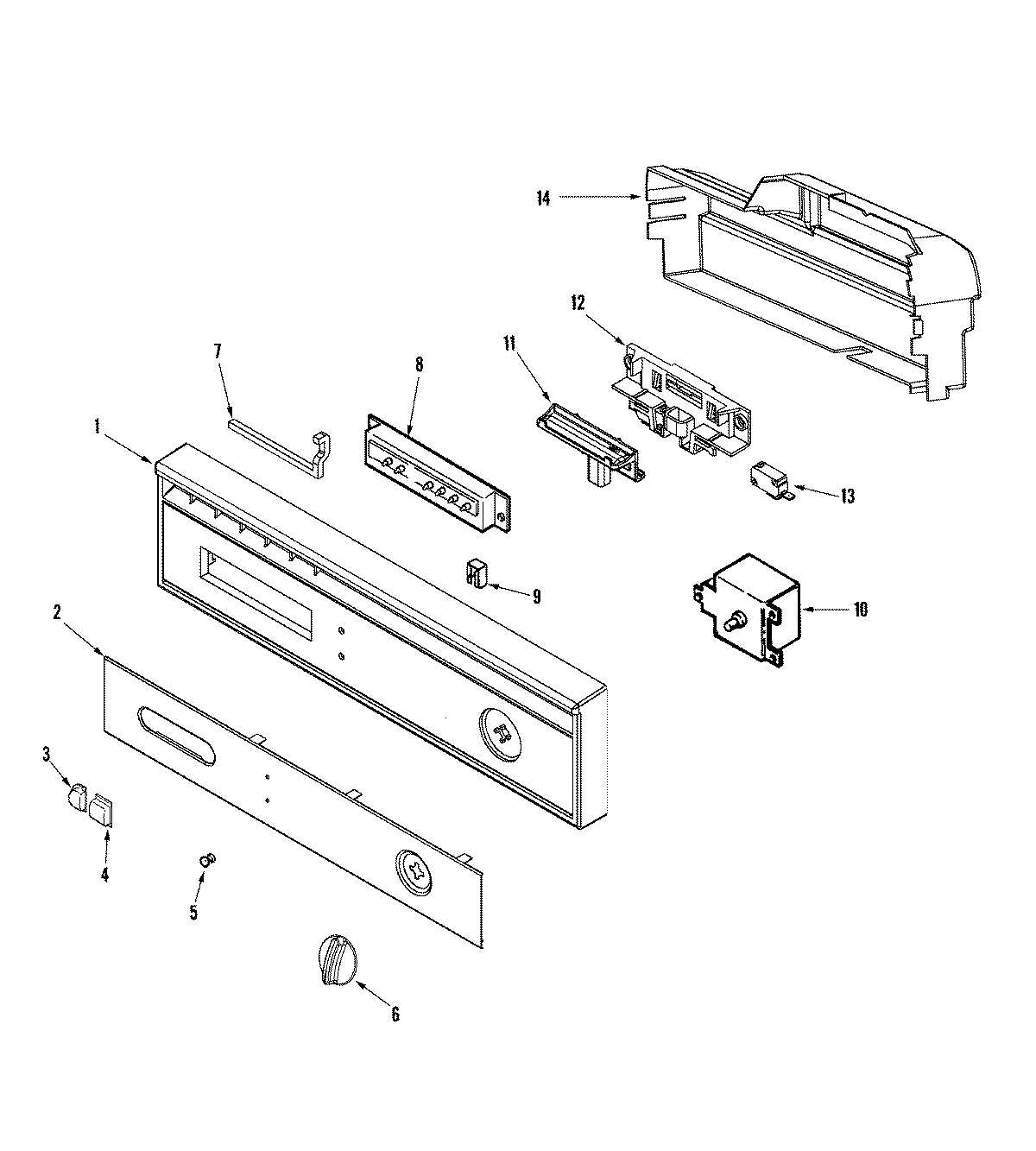

DWB1000AWE 01 – CONTROL PANEL

DWB1000AWE 01 – CONTROL PANEL

Written by

in

DWB1000AWE 01 – CONTROL PANEL

Products

PositionProduct
1MAY 99001596
1MAY 99002847
2MAY 99002925
3MAY 99001506
4MAY 99001503
5MAY Y912696
6MAY 99001895
7MAY Y913177
7MAY Y913116
8MAY 99001611
9WP903115 Whirlpool Dishwasher Indicator Light
10MAY 99002431
11WP99002085 Whirlpool Dishwasher Handle
12WP99002240 Whirlpool Dishwasher Bracket
12SCREW, No.8X1/2 HEX WASHER HEAD
13WP99002207 Whirlpool Dishwasher Door Switch
14MAY 99001588
15MAY 99002495
