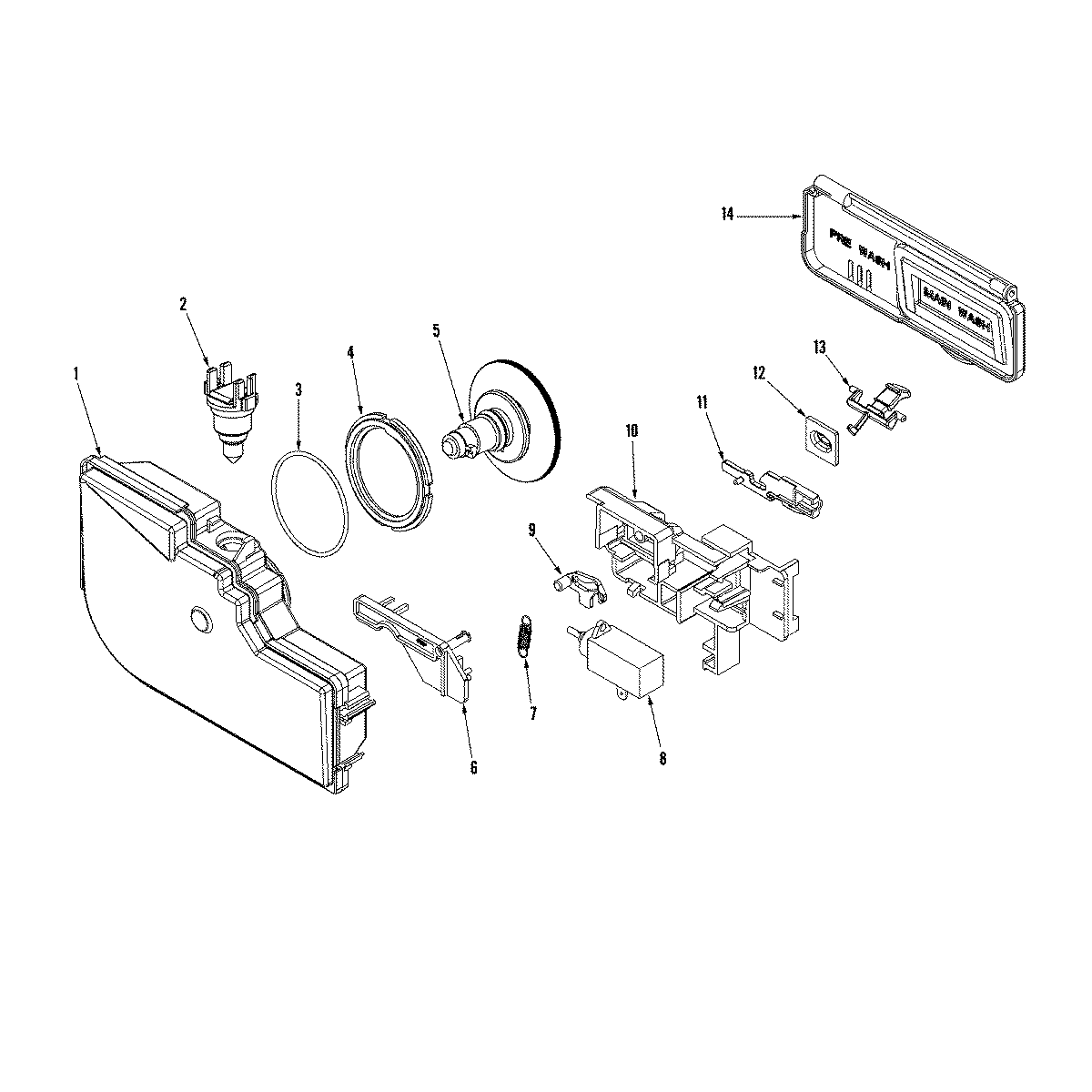

DWB1000AWX 04 – RINSE AID & SOAP DISPENSER

DWB1000AWX 04 – RINSE AID & SOAP DISPENSER

Written by

in

DWB1000AWX 04 – RINSE AID & SOAP DISPENSER

Products

PositionProduct
1WP99002833 Whirlpool Dishwasher Reservoir
2MAY 903124
3MAY 99002003
4MAY 99002005
5MAY Y912923
6MAY 99001289
7WPW10116816 Whirlpool Dishwasher Spring
8WP902899 Whirlpool Dishwasher Wax Motor
9MAY 99001287
10SCREW, No.8X1/2 HEX WASHER HEAD
10WP99001288 Whirlpool Dishwasher Retainer
11MAY 99001290
12WP99001553 Whirlpool Dishwasher Grommet
13WP99001291 Whirlpool Dishwasher Latch
14WP6-912678 Whirlpool Hinge Pin
14MAY Y912547
14MAY 903483
14WPY912679 Whirlpool Dishwasher Hinge Pin
