DWC6402AAE 04 – DOOR

DWC6402AAE 04 – DOOR

Written by

in

DWC6402AAE 04 – DOOR

Products

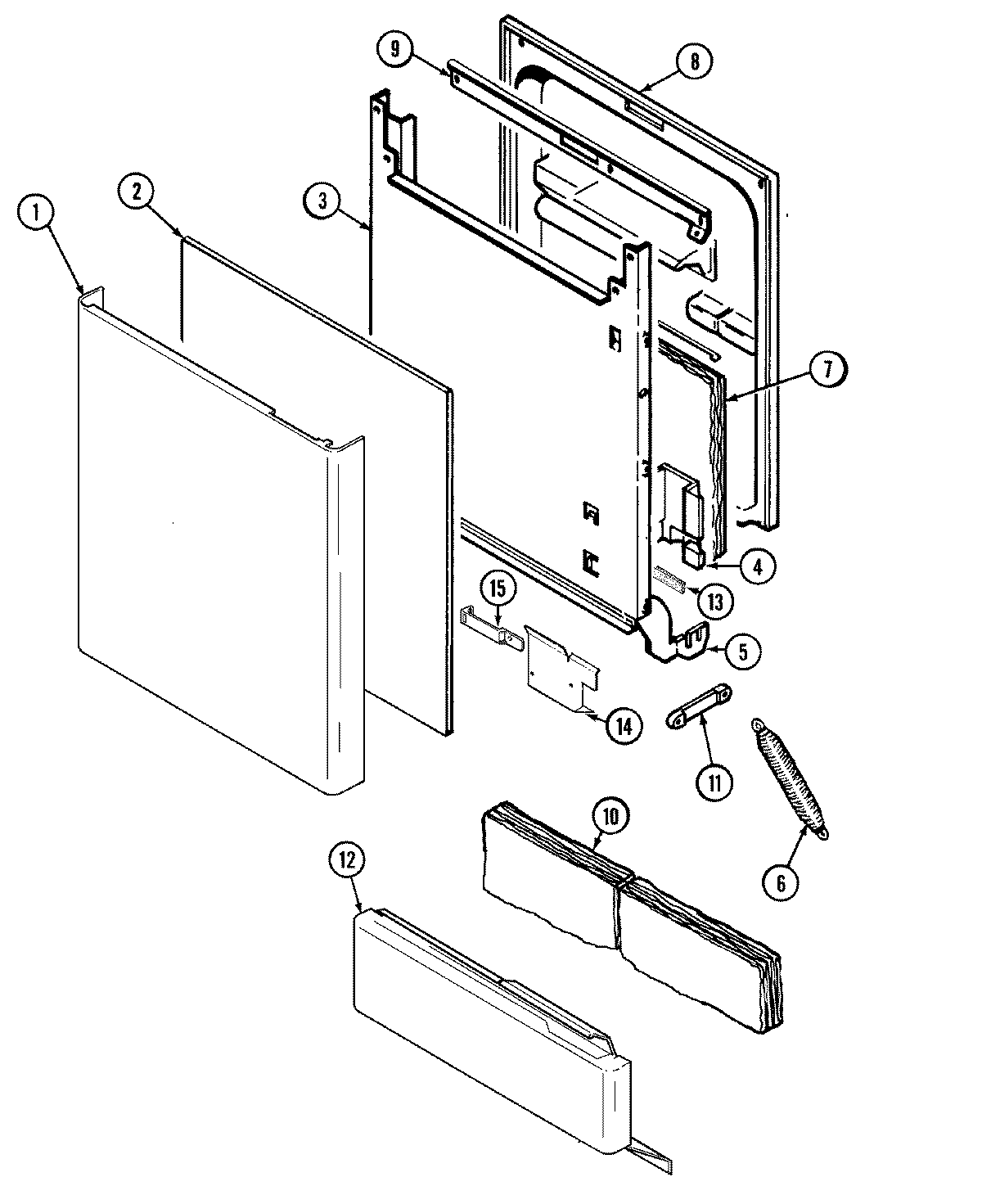

PositionProduct
1MAY DAX2000AXM
1MAY 99001445
1MAY 99001416
2MAY 99001415
3MAY 99001419
3MAY 99001688
4SCREW, No.8X1/2 HEX WASHER HEAD
4MAY Y912666
5MAY 903070
5MAY 903071
5MAY 99001075
6WP912652 Whirlpool Dishwasher Spring
7MAY 99001718
8MAY 99001212
8MAY 99001104
8MAY 99001067
8WPY912620 Whirlpool Dishwasher Screw
9MAY Y912668
10MAY Y912836
11WP912653 Whirlpool Dishwasher Door Spring Link
12SCREW, ACCESS PANEL
12MAY 99001411
13WPW10117748 Whirlpool Dishwasher Insulation Pad
14MAY 99001414
14WPW10339879 Whirlpool Wire Tie
15WP6-912366 Whirlpool Dishwasher Screw
15MAY 99001444
