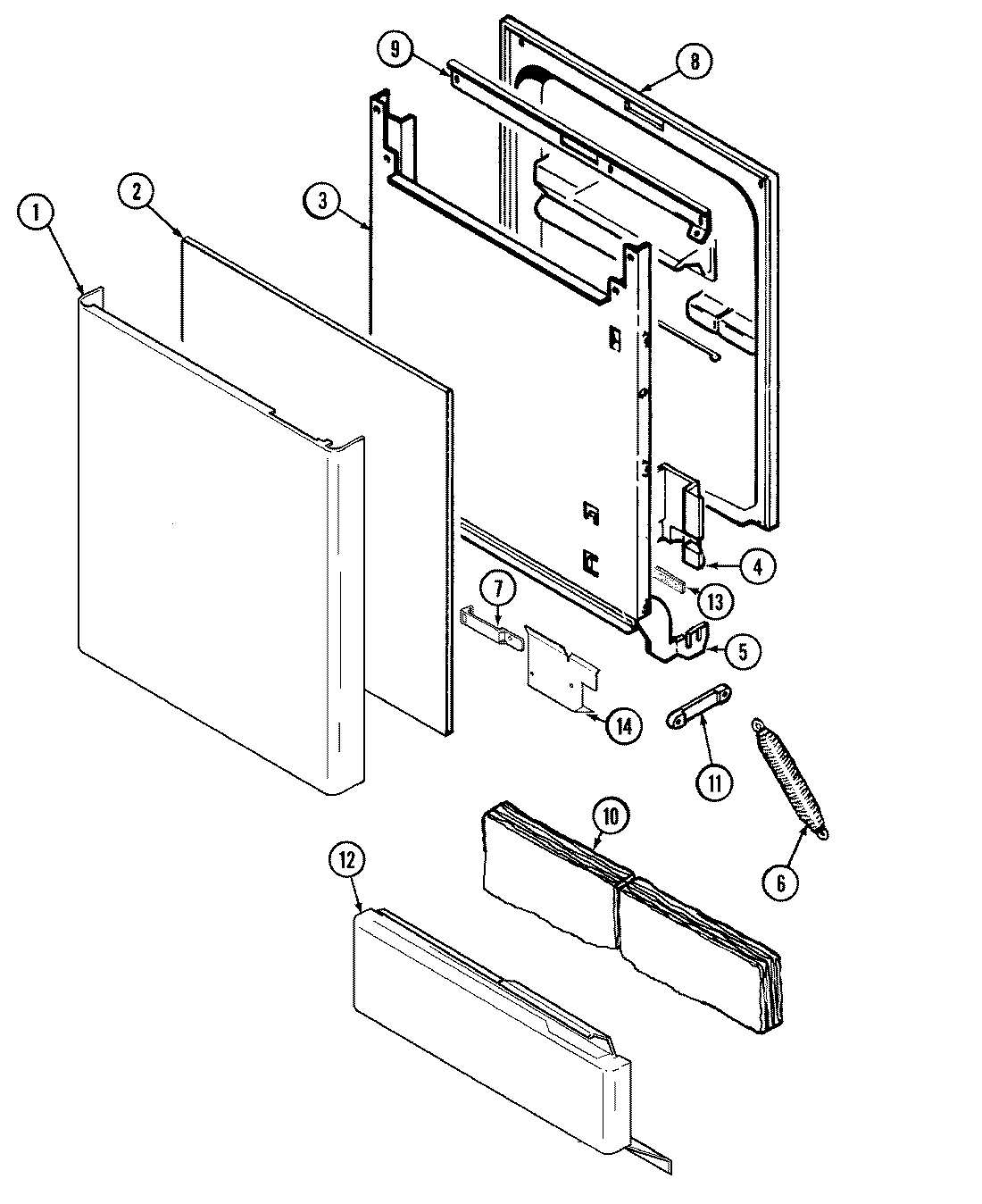

DWC7302AAB 04 – DOOR

DWC7302AAB 04 – DOOR

Written by

in

DWC7302AAB 04 – DOOR

Products

PositionProduct
1MAY DAX2000AXE
1MAY DAX2000AXM
1MAY 99001446
1MAY 99001417
2MAY 99001415
3MAY 99001419
3MAY 99001688
4SCREW, No.8X1/2 HEX WASHER HEAD
4MAY Y912666
5MAY 903071
5MAY 99001075
5MAY 903070
6WP912652 Whirlpool Dishwasher Spring
7MAY 99001444
8MAY 99001212
8MAY 99001104
8MAY 99001067
8WPY912620 Whirlpool Dishwasher Screw
9MAY Y912668
10MAY Y912836
11WP912653 Whirlpool Dishwasher Door Spring Link
12MAY 99001412
13WPW10117748 Whirlpool Dishwasher Insulation Pad
14WP6-912366 Whirlpool Dishwasher Screw
14MAY 99001414
14WPW10339879 Whirlpool Wire Tie
