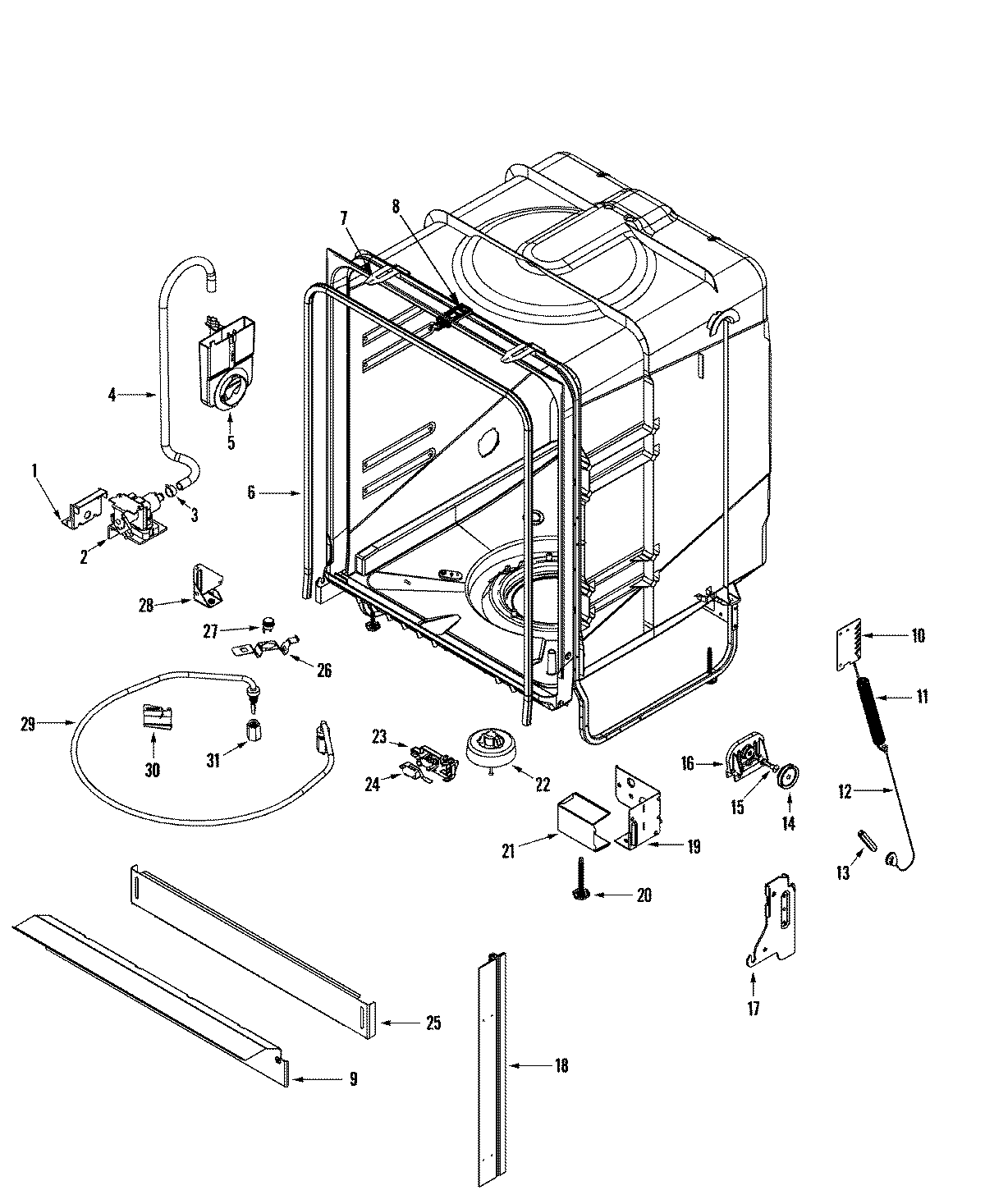

DWD1500AWW 06 – TUB

DWD1500AWW 06 – TUB

Written by

in

DWD1500AWW 06 – TUB

Products

PositionProduct
1MAY 99002629
2W11082871 Whirlpool Dishwasher Inlet Valve
2MAY 99002553
3WP596669 Whirlpool Hose Clamp
4WP99002852 Whirlpool Dishwasher Injector Hose
5Grill,Air/Water Inlet
5MAY 99002955
5MAY 99002954
5MAY 99002646
5MAY 99002645
6MAY 99002588
7MAY 99002648
8WP99002644 Whirlpool Dishwasher Door Striker
8MAY 99003357
9SUPPORT, FRONT (W/SEALS)(WHT)
106-918346 Whirlpool Dishwasher Bracket
11WP99002598 Whirlpool Door Spring
12WP99003446 Whirlpool Door Cable
14WP99002608 Whirlpool Dishwasher Cable Roller
15MAY 99002609
16MAY 99002607
17MAY 99002927
17MAY 99002928
18MAY 99002692
18MAY 99002649
19BRACKET, JUNCTION BOX SUPPORT
20WPW10143258 Whirlpool Dishwasher Leg Leveler
21MAY 99002638
21MAY 912365
22MAY 99002630
23MAY 99002943
23WP3390631 Whirlpool Screw
24MAY 99002631
25MAY 99002766
25SCREW, ACCESS PANEL
26MAY 99002634
27MAY 99002633
28SCREW 10-32X.400 (T-20 HEAD)
28BRACKET, SUPPORT (LT)
29W10283681 Whirlpool Dishwasher Heater
29MAY 99002973
30WP6-917262 Whirlpool Dishwasher Heater Bracket
31WP6-920168 Whirlpool Dishwasher Heater Nut
