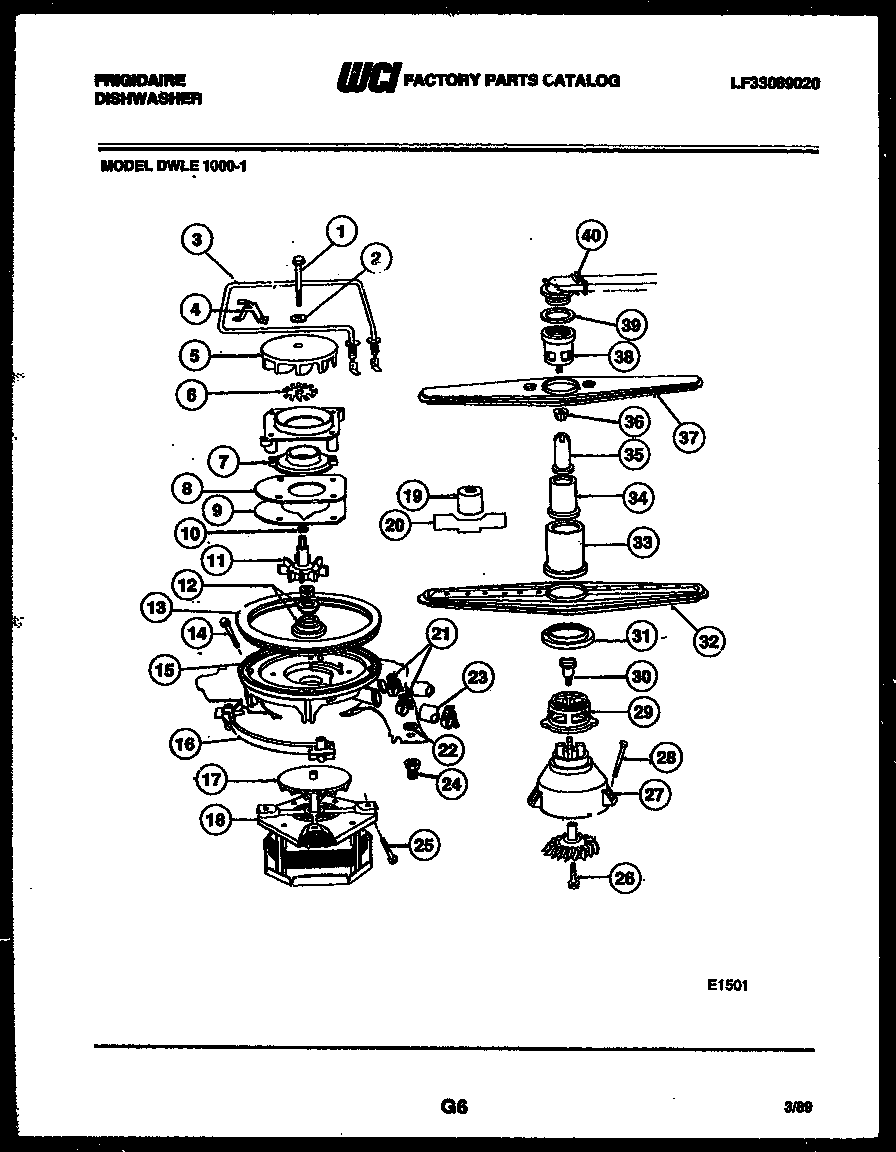

DWLE1000W1 05 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 806353
2	WCI 3018102
3	WCI 809584
4	WCI 809585
5	WCI 3018103
6	WCI 3018104
7	WCI 3014671
8	WCI 3018105
9	5300807709 Frigidaire Dishwasher Gasket
10	WCI 3014675
11	PUMP SEAL KIT (INCLUDES 2, 4, 5, 9, 11, & 20)
12	WCI 803903
13	WCI 809586
14	WCI 3014699
15	WCI 809589
16	WCI 809590
17	WCI 3018110
18	WCI 3202595
19	TOOL-SEAL INSTALLATION REQUIRED WHEN INSTALL. NO. 10, 11
20	WCI 3018115
21	WCI 3018117
22	WCI 809587
23	CONNECTOR – HOSE
24	154106202 Frigidaire Dishwasher Heater Nut
25	WCI 3018111
26	WCI 3018127
27	WCI 3018120
28	WCI 3018154
29	WCI 3018121
30	WCI 3018122
31	WCI 3018123
32	WCI 808177
33	WCI 3018125
34	WCI 3018126
35	WCI 808180
36	WCI 808181
37	SPRAY ARM
38	WCI 808183
39	WCI 808184
40	ELBOW & TUBE ASSY
