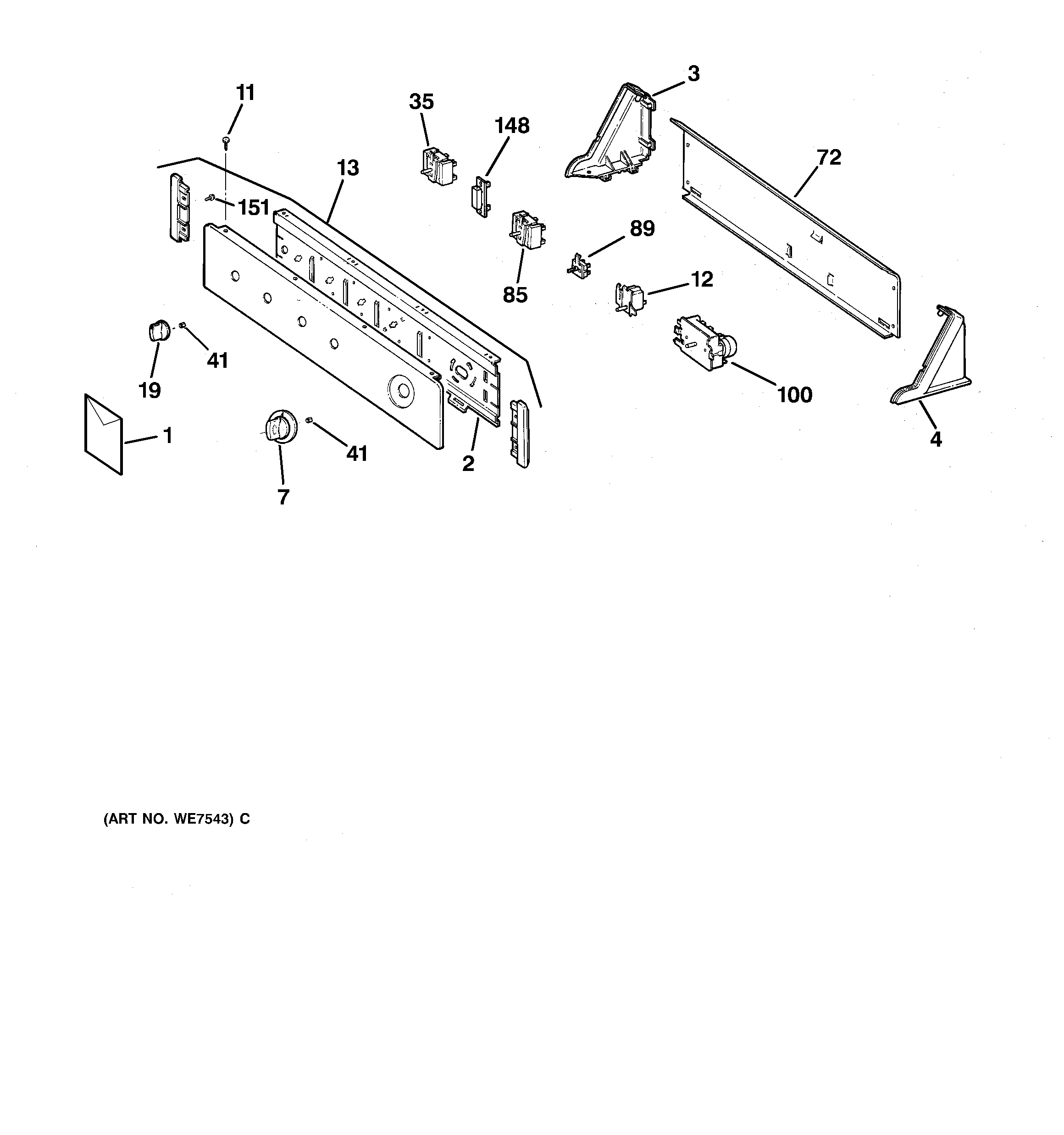

DWLR473ET0AA CONTROL ASSEMBLY

DWLR473ET0AA CONTROL ASSEMBLY

Written by

in

DWLR473ET0AA CONTROL ASSEMBLY

Products

PositionProduct
1USE CARE MANUAL
1GEN 49-9826
1GEN 31-15052
1GEN 31-1730
2GEN WH46X0340
3END CAP LH AD
4END CAP RH AD
7KNOB, TIMER AD
11GEN WE01X1270
12GEN WH12X1005
13GEN WE19X0995
19WH1X2721 GE Dryer Control Knob
35WE4X881 GE Dryer Rotary Start Switch
41GEN WE01X0980?
72GEN WE20X0814
85GEN WE04X0873
89GEN WE04X0874
100GEN WE04X0870
148GEN WE04X0799
207WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
461WZ5X158D GE Screw Package of 12
769WB1X500D GE Oven Screw Package
