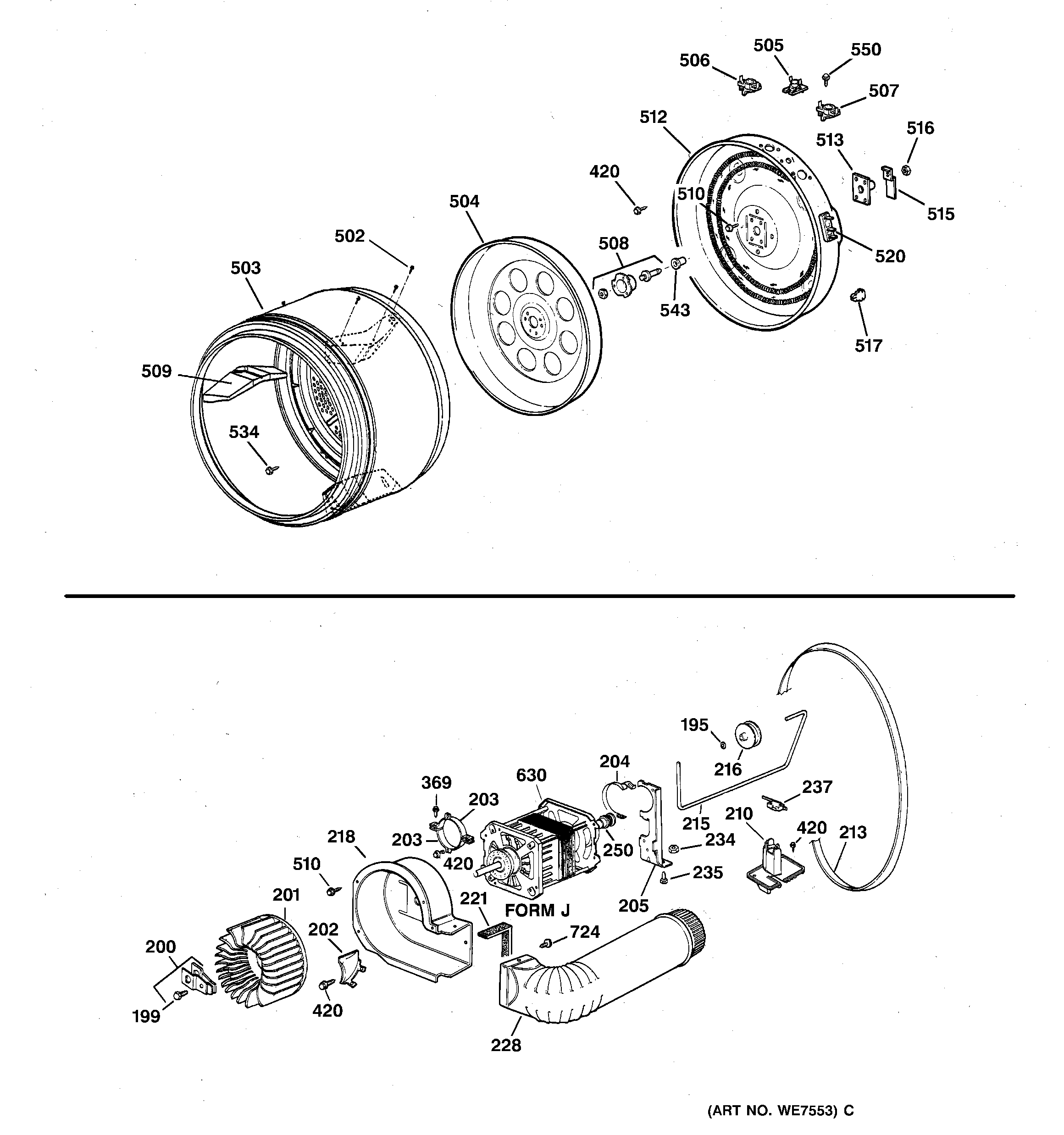

DWLR473ET1AA DRUM, HEATER ASM., BLOWER & DRIVE ASM.

Products

Position	Product
195	GEN WH02X0885
199	GEN WE02X0280
200	WE1X688 GE Dryer Clamp and Screw
201	WE16M15 GE Washer Dryer Blower Wheel
202	GEN WE01X0689
203	WE13X200 GE Motor Strap
205	GEN WE13X0161
210	GEN WE13X0218
215	GEN WE03X0069
216	WE12X83 GE Dryer Idler Pulley
218	GEN WE14X0134
221	GEN WE01X1171
228	GEN WE14X0213
234	GEN WE02X0154
235	GEN WE02X0194
237	GEN WE04X0532
250	GEN WE12X0041
369	WH2X1217 GE Screw Assembly
420	GEN WH02X0893
502	GEN WE02X10001
503	GEN WE21X10001
504	GEN WE14X0086
505	WE4X800 GE Dryer Thermal Fuse Thermostat
506	GEN WE04X0813
507	WE4X584 GE Dryer High Limit Thermostat
508	WE25M40 GE Dryer Rear Bearing Kit
509	GEN WE14X10001
510	WE2X263D GE Screw Package 12 C92
512	WE11X103 GE Dryer Large Coil Heater Assembly
513	WE1X461 GE Bearing Retainer
515	WE1X1172 GE Strap Assembly
516	WR01X10212 GE Refrigerator 8-32 Nut
517	GEN WE01X1176
520	GEN WE01X1177
534	GEN WE02X0153
543	WE3X75 GE Dryer Rear Drum Bearing
550	GEN WE02X0281
630	WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
724	SCREW 10-16 X 1/2" HEX
