DWSR483EG6WW BACKSPLASH, BLOWER & MOTOR

DWSR483EG6WW BACKSPLASH, BLOWER & MOTOR

Written by

in

DWSR483EG6WW BACKSPLASH, BLOWER & MOTOR

Products

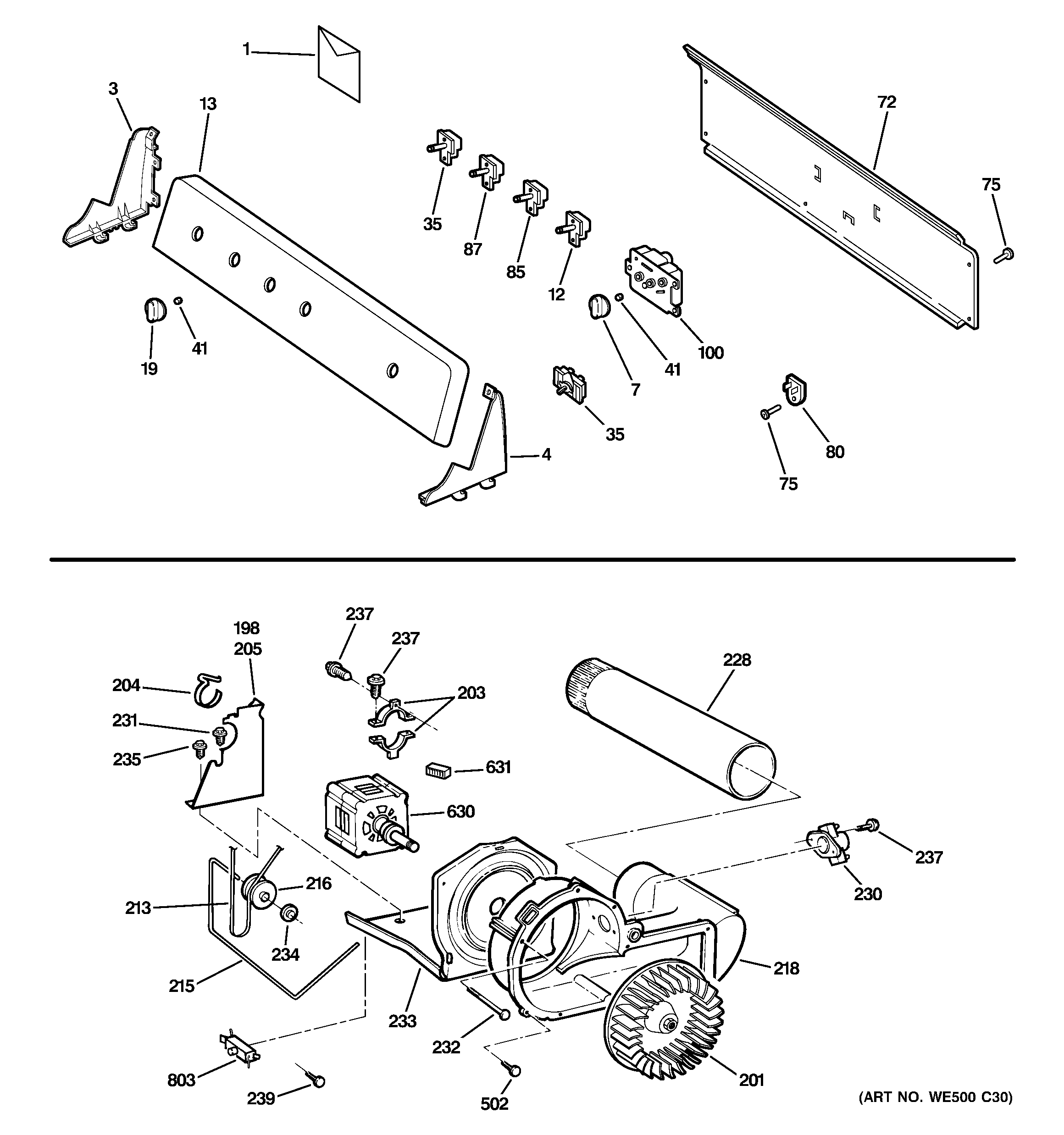

PositionProduct
1MINI MANUAL
1GEN 49-90318
1GEN 31-16135
3WE49X22294 GE Endcap Service Kit
3GEN WE19M1476
4GEN WE19M1475
4WE19X20467 GE Endcap Left Hand
7WE01X20375 GE Washer Timer Knob Assembly (Bisque)
7WE1M654 GE Washer White Timer Knob
12GEN WE4M368
13WE19M1486 GE Washer Back Assembly
13GEN WE19M1487
19WE01X20378 GE Washer Control Knob
19WE01X20379 GE Washing Machine Bisque Control Knob Assembly
35WE4M519 GE Washer Start Switch Rotary
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
85WE4M399 GE Rocker Switch
87WE4M411 GE Appliance Rotary Switch Zodiac 4 Temp
100WE04X20089 GE Washer Control Timer
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
