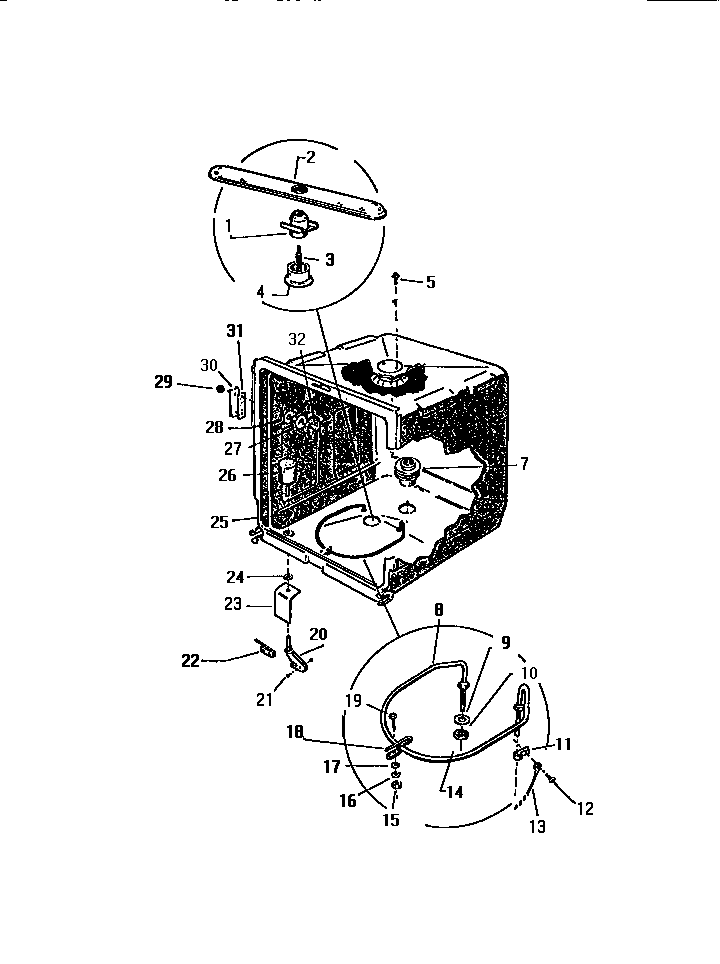

DWU2005T3W 03 – INNER TUB COMPONENTS

Products

PositionProduct
1BEARING, WASH ARM
2ARM, WASH
3WCI WS255703
4WCI WS255502
5WCI WS011001
7WCI WS268601
8WCI WS900029
9GASKET, HEATER (INSIDE TUB) (2)
10WCI WC411208
11CLAMP, GROUND HEATER
12WCI WC502510
13WIRE, GROUND, HEATER
14NUT, HEATER (2)
15NUT, CLIP, MOUNTING (HEATER)
16WASHER-LATCH (2)
17WASHER, CLIP, MOUNTING (HEATER)
18CLIP, HEATER
19WCI WC503184
20GUIDE, FLOAT
21WCI WS900018
22SWITCH, FLOAT
23SHIELD, SWITCH
24GASKET, GUIDE
25WCI WS117901
26WCI WS415202
27WCI WS116201
28WCI WS004203
29WCI WS004401
30SUPPPORT (4)
31SEAL (4)
32WCI WS005401
