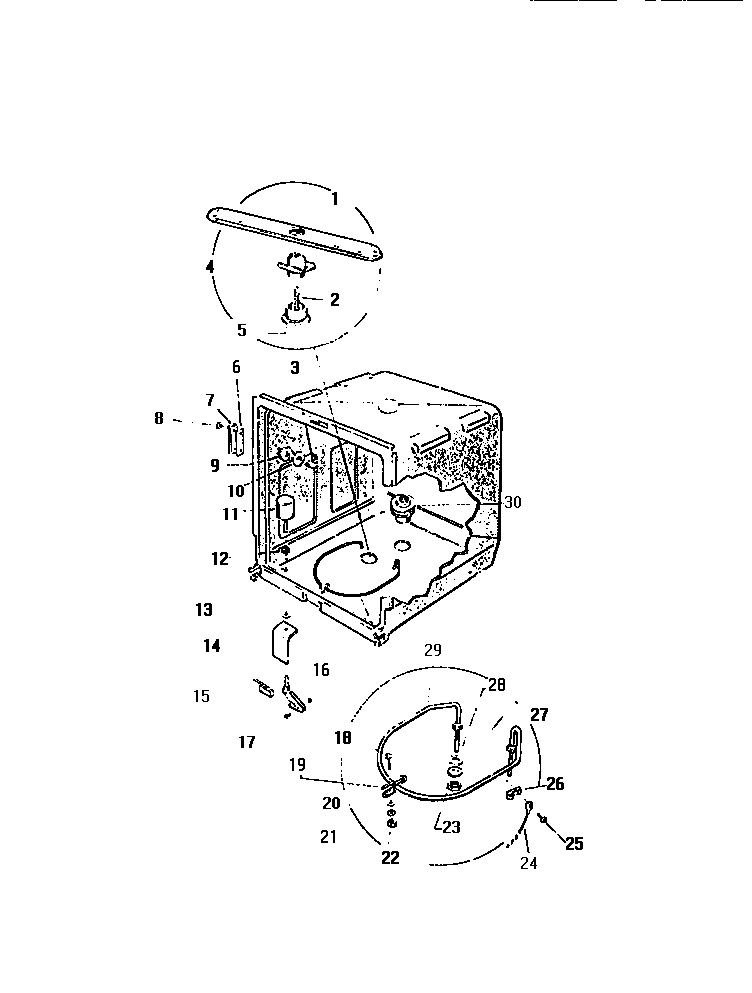

DWU4005W2 06 – INNER TUB COMPONENTSadmin2025-04-26T08:54:38+00:00DWU4005W2 06 – INNER TUB COMPONENTS
Products
| Position | Product |
|---|
| 1 | ARM, WASH |
| 2 | WCI WS255703 |
| 3 | WCI WS5401 |
| 4 | BEARING, WASH ARM |
| 5 | WCI WS255502 |
| 6 | WCI WS5001 |
| 7 | SUPPPORT (4) |
| 8 | WCI WS004401 |
| 9 | WCI WS4203 |
| 10 | WCI WS116201 |
| 11 | WCI WS415202 |
| 12 | WCI WS117901 |
| 13 | GASKET, GUIDE |
| 14 | SHIELD, SWITCH |
| 15 | SWITCH, FLOAT |
| 16 | GUIDE, FLOAT |
| 17 | WCI WS900018 |
| 18 | WCI WC504605 |
| 19 | CLIP, HEATER |
| 20 | WCI WC505381 |
| 21 | WASHER-LATCH (2) |
| 22 | NUT, CLIP, MOUNTING (HEATER) |
| 23 | NUT, HEATER (2) |
| 24 | WIRE, GROUND, HEATER |
| 25 | WCI WC503731 |
| 26 | CLAMP, GROUND HEATER |
| 27 | WCI WC411208 |
| 28 | GASKET, HEATER (INSIDE TUB) (2) |
| 29 | WCI WS900029 |
| 30 | WCI WS26801 |
