DWU4005W3 06 – INNER TUB COMPONENTS

DWU4005W3 06 – INNER TUB COMPONENTS

Written by

in

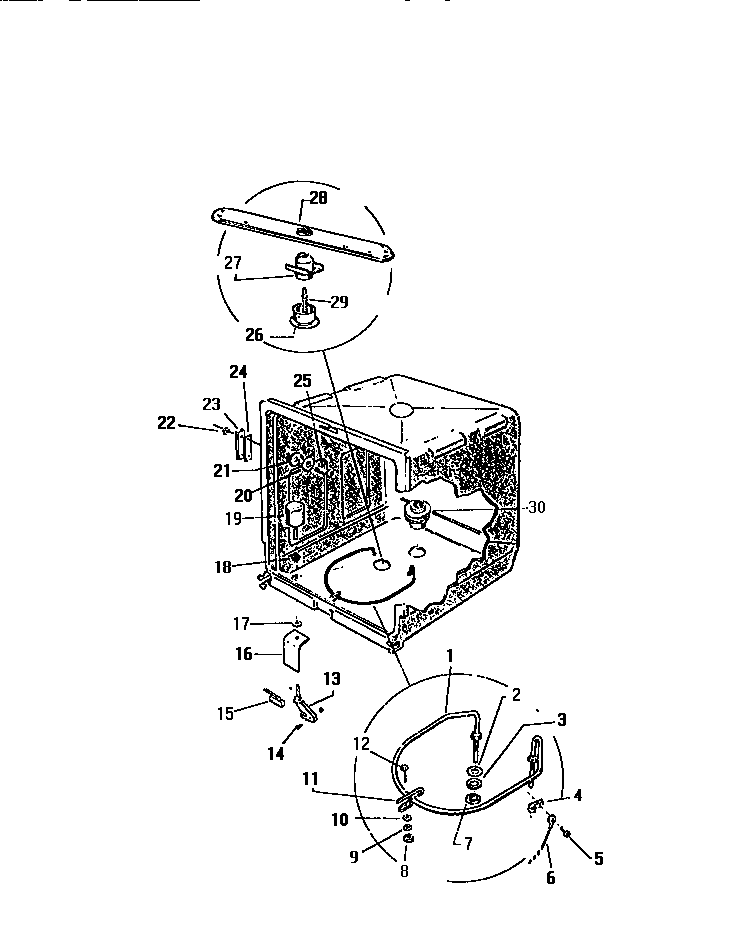

DWU4005W3 06 – INNER TUB COMPONENTS

Products

PositionProduct
1WCI WS900029
2GASKET, HEATER (INSIDE TUB) (2)
3WCI WC411208
4CLAMP, GROUND HEATER
5WCI WC503731
6WIRE, GROUND, HEATER
7NUT, HEATER (2)
8NUT, CLIP, MOUNTING (HEATER)
9WCI WS4204
10WASHER, CLIP, MOUNTING (HEATER)
11CLIP, HEATER
12WCI WC503184
13GUIDE, FLOAT
14WCI WS900018
15SWITCH, FLOAT
16SHIELD, SWITCH
17GASKET, GUIDE
18WCI WS117901
19WCI WS415202
20WCI WS116201
21WCI WS004203
22WCI WS004401
23SUPPPORT (4)
24SEAL (4)
25WCI WS005401
26WCI WS255502
27BEARING, WASH ARM
28ARM, WASH
29WCI WS255703
30WCI WS268601
