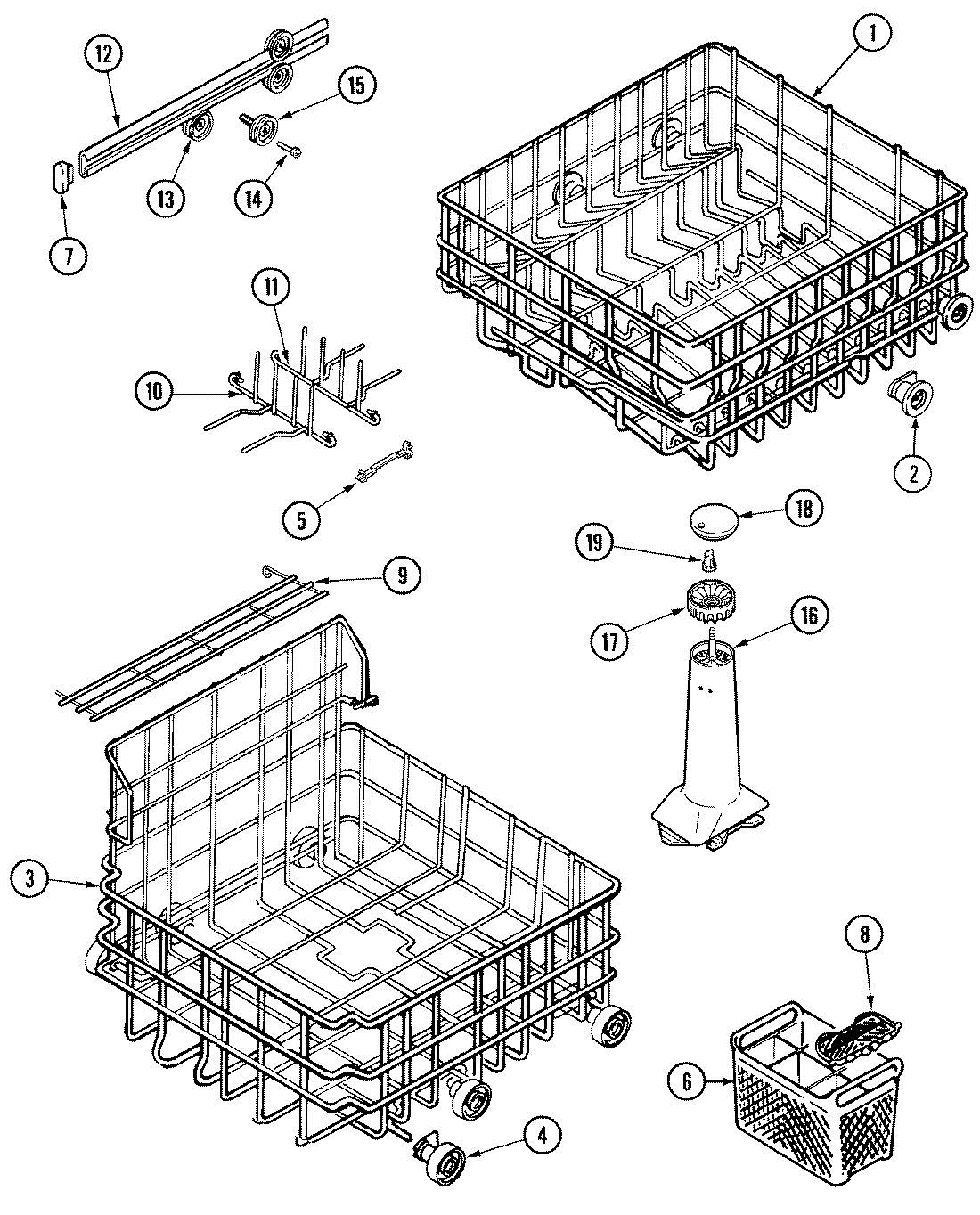

DWU6202AAB 06 – TRACK & RACK ASSEMBLY

DWU6202AAB 06 – TRACK & RACK ASSEMBLY

Written by

in

DWU6202AAB 06 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99001484
2WP903093 Whirlpool Dishwasher Rack Wheel
3MAY 99001487
4WP99002780 Whirlpool Lower Wheel Assembly
5WPY912709 Whirlpool Dishwasher Adjuster Clip
6MAY 903446
7MAY 912546
8MAY 912639
9MAY 902990
1012002218 Whirlpool Dishwasher Tine Bowl with Sleeves
11WP99002138 Whirlpool Dishwasher Tine Row
12WPY912545 Whirlpool Dishwasher Track
13WP99002342 Whirlpool Dishwasher Tub Wheel
14WP99002947 Whirlpool Tub Wheel
15WPY912798 Whirlpool Dishwasher Tub Washer Wheel
16MAY 99001533
17MAY 99001442
18WP99001443 Whirlpool Dishwasher Nut
19MAY 99001426
