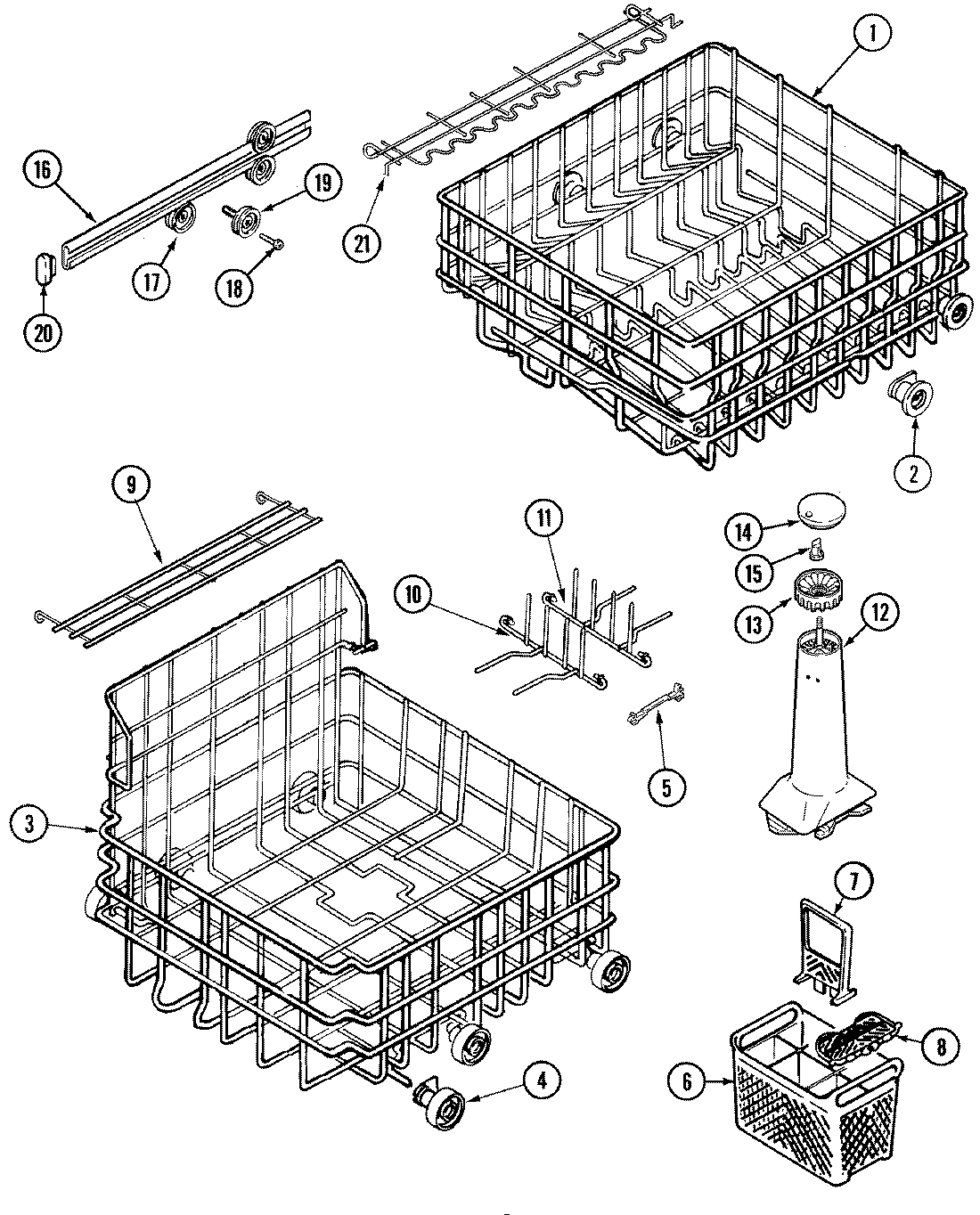

DWU6402AAB 06 – TRACK & RACK ASSEMBLY

DWU6402AAB 06 – TRACK & RACK ASSEMBLY

Written by

in

DWU6402AAB 06 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99001507
2WP903093 Whirlpool Dishwasher Rack Wheel
3MAY 99001487
3W10139223 Whirlpool Dishwasher Lower Dish Rack
4WP99002780 Whirlpool Lower Wheel Assembly
5WPY912709 Whirlpool Dishwasher Adjuster Clip
6MAY 903446
8MAY 912639
9MAY 902990
1012002218 Whirlpool Dishwasher Tine Bowl with Sleeves
11WP99002138 Whirlpool Dishwasher Tine Row
12MAY 99001533
13MAY 99001442
14WP99001443 Whirlpool Dishwasher Nut
15MAY 99001426
16WPY912545 Whirlpool Dishwasher Track
17WP99002342 Whirlpool Dishwasher Tub Wheel
18WP99002947 Whirlpool Tub Wheel
19WPY912798 Whirlpool Dishwasher Tub Washer Wheel
20MAY 912546
21MAY 99001508
