DWU7300ABX 06 – SOAP DISPENSER

DWU7300ABX 06 – SOAP DISPENSER

Written by

in

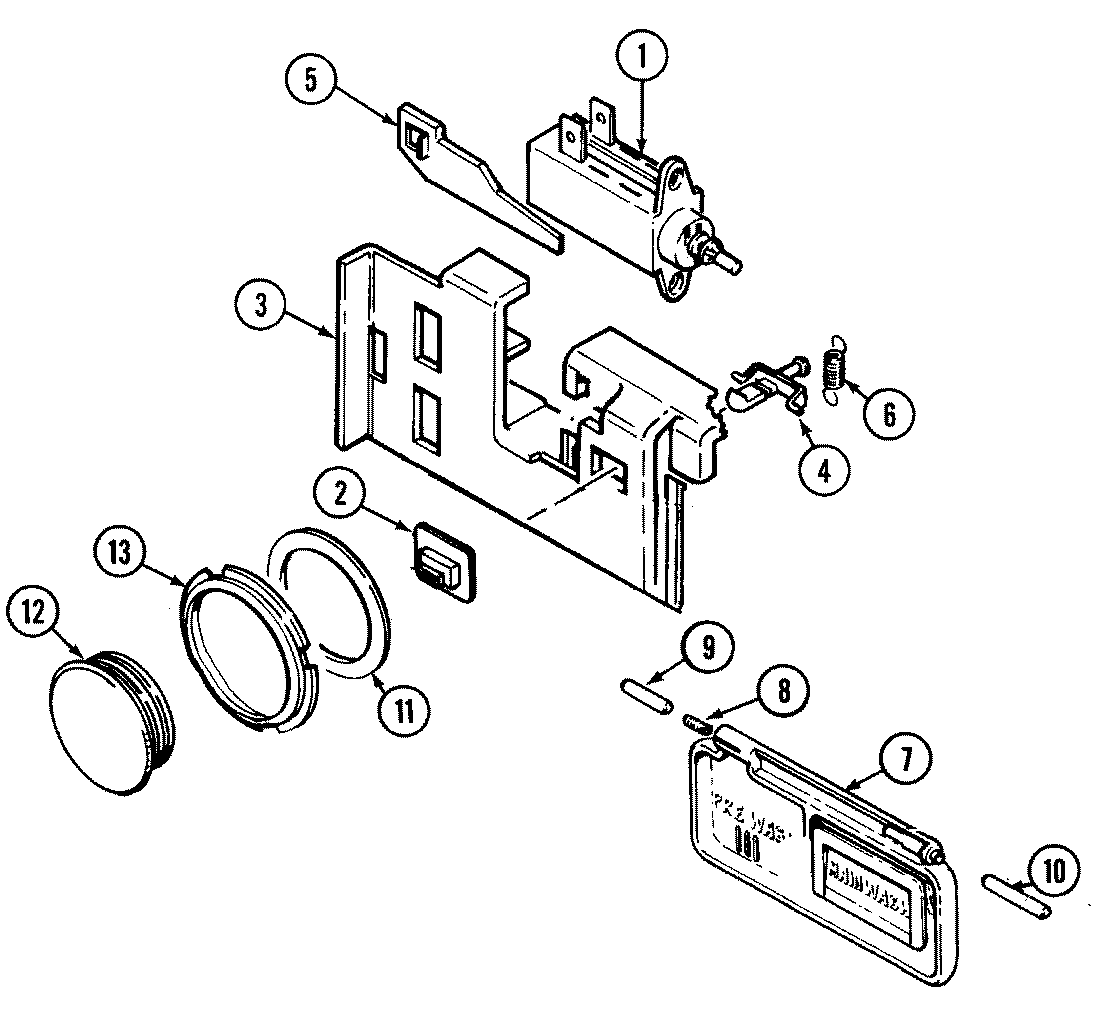

DWU7300ABX 06 – SOAP DISPENSER

Products

PositionProduct
1WP902899 Whirlpool Dishwasher Wax Motor
2MAY 912559
3MAY Y912673
4MAY Y912674
5MAY Y912675
6WPW10116816 Whirlpool Dishwasher Spring
7MAY 903108
8MAY Y912547
9WP6-912678 Whirlpool Hinge Pin
10WPY912679 Whirlpool Dishwasher Hinge Pin
11MAY Y912835
12MAY Y913092
13MAY Y913060
13NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
