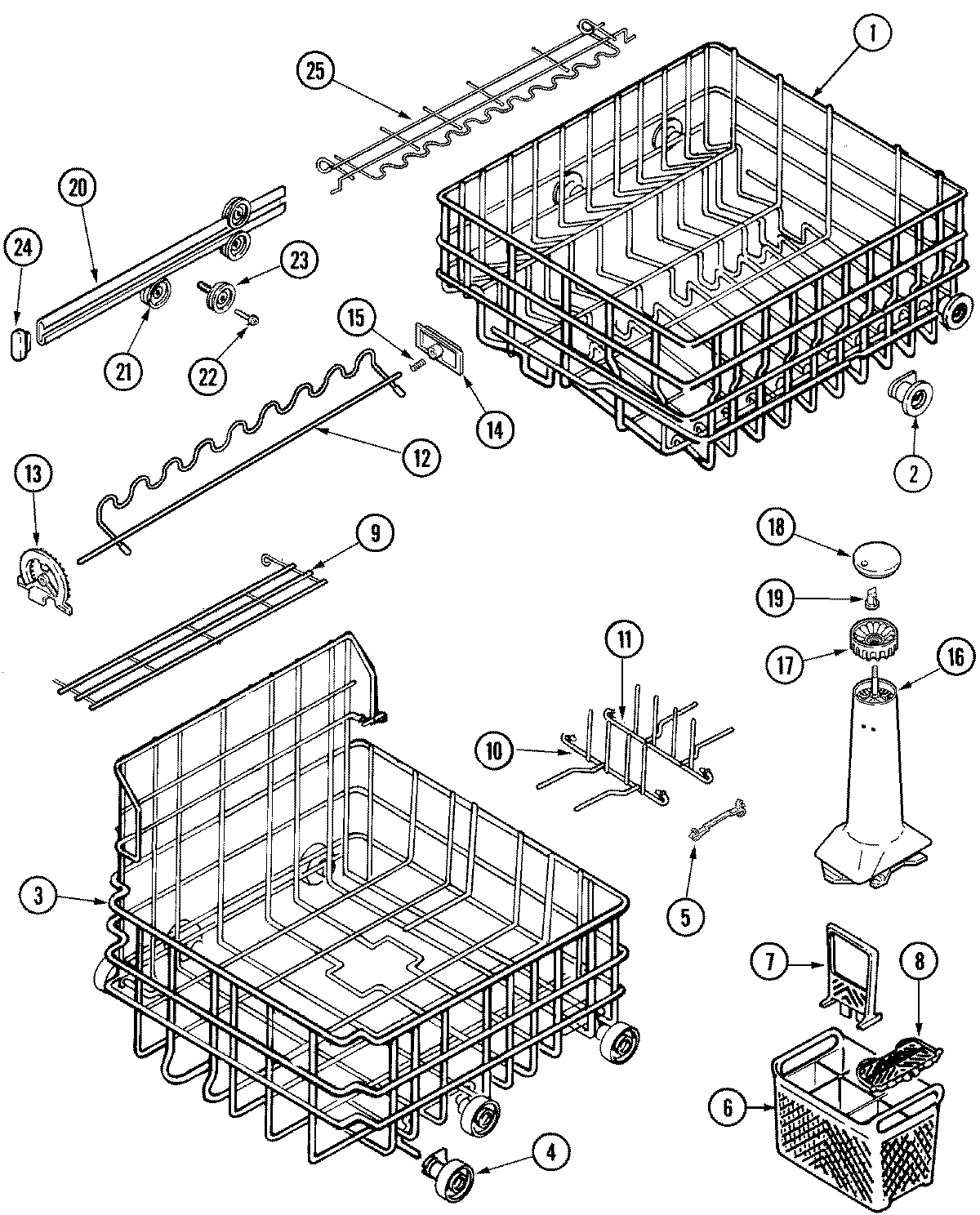

DWU8402AAE 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99001454
2	WP903093 Whirlpool Dishwasher Rack Wheel
3	W10139223 Whirlpool Dishwasher Lower Dish Rack
4	WP99002780 Whirlpool Lower Wheel Assembly
5	WPY912709 Whirlpool Dishwasher Adjuster Clip
6	MAY 903446
7	MAY Y912708
8	MAY 912639
9	MAY 903436
10	12002218 Whirlpool Dishwasher Tine Bowl with Sleeves
11	WP99002138 Whirlpool Dishwasher Tine Row
12	MAY 99001437
13	MAY 99001438
14	MAY 99001461
14	MAY 99001439
15	MAY 99001440
16	MAY 99001533
17	MAY 99001442
18	WP99001443 Whirlpool Dishwasher Nut
19	MAY 99001426
20	WPY912545 Whirlpool Dishwasher Track
21	WP99002342 Whirlpool Dishwasher Tub Wheel
22	WP99002947 Whirlpool Tub Wheel
23	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
24	MAY 912546
25	MAY 99001429
