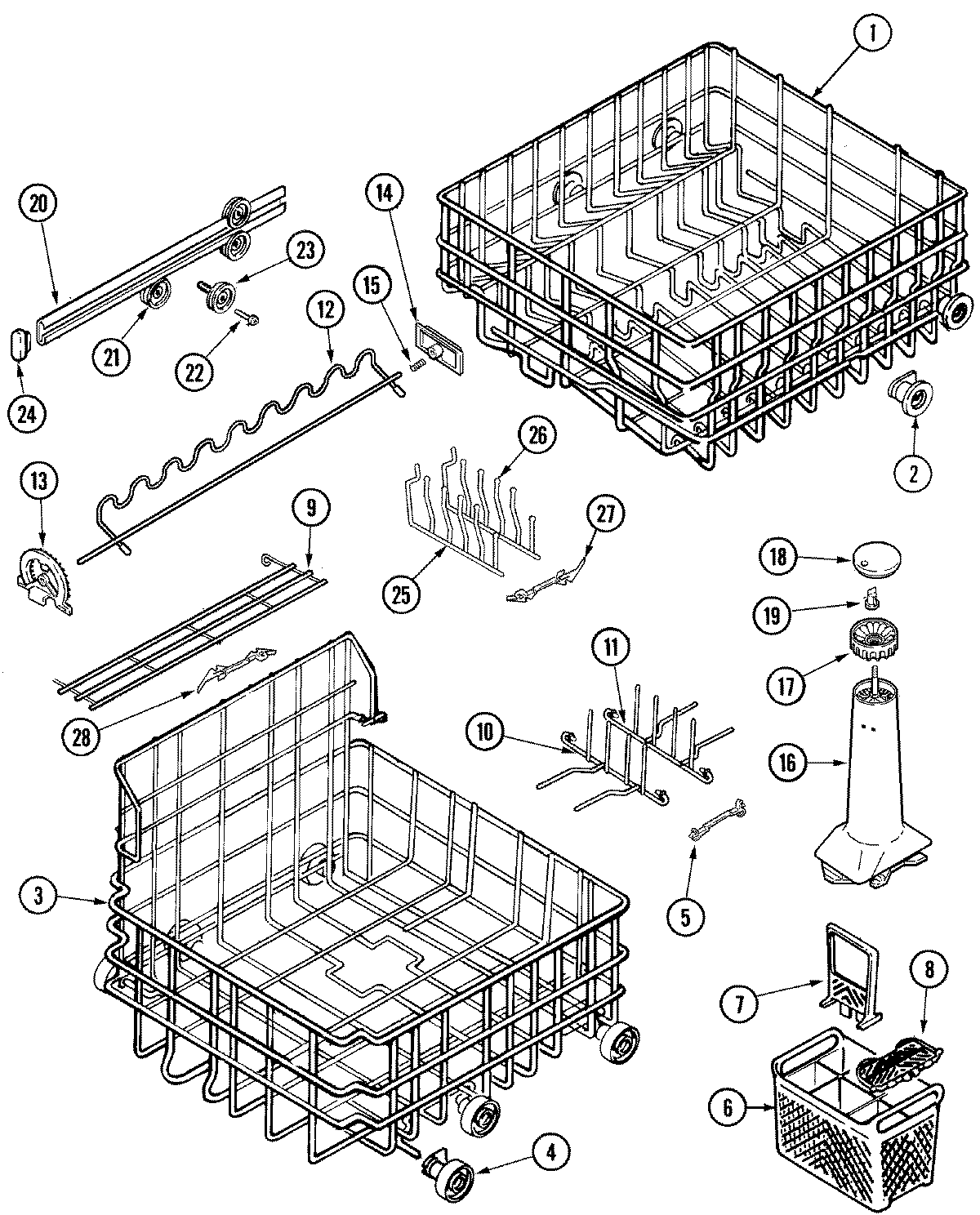

DWU9302AAB 06 – TRACK & RACK ASSEMBLY

DWU9302AAB 06 – TRACK & RACK ASSEMBLY

Written by

in

DWU9302AAB 06 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99001472
2WP903093 Whirlpool Dishwasher Rack Wheel
3W10139223 Whirlpool Dishwasher Lower Dish Rack
4WP99002780 Whirlpool Lower Wheel Assembly
5WPY912709 Whirlpool Dishwasher Adjuster Clip
6MAY 903446
7MAY Y912708
8MAY 912639
9MAY 903436
1012002218 Whirlpool Dishwasher Tine Bowl with Sleeves
11WP99002138 Whirlpool Dishwasher Tine Row
12MAY 99001437
13MAY 99001438
14MAY 99001439
14MAY 99001461
15MAY 99001440
16MAY 99001533
17MAY 99001442
18WP99001443 Whirlpool Dishwasher Nut
19MAY 99001426
20WPY912545 Whirlpool Dishwasher Track
21WP99002342 Whirlpool Dishwasher Tub Wheel
22WP99002947 Whirlpool Tub Wheel
23WPY912798 Whirlpool Dishwasher Tub Washer Wheel
24MAY 912546
25MAY 99001434
26MAY 99001435
27WP99001436 Whirlpool Dishwasher Fold Clip
28MAY 99001746
