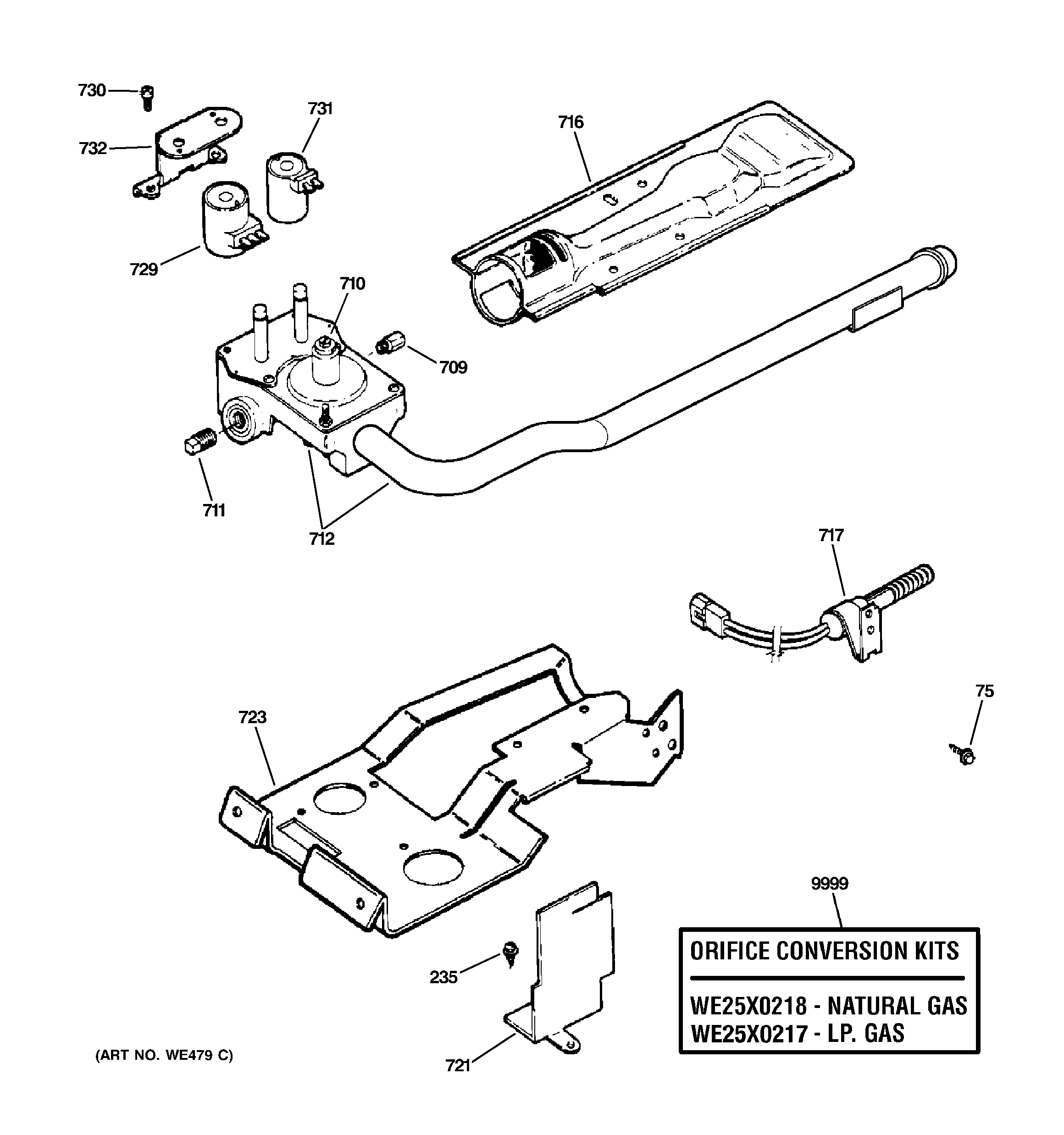

DWXR483GG0WW GAS VALVE & BURNER ASSEMBLY

DWXR483GG0WW GAS VALVE & BURNER ASSEMBLY

Written by

in

DWXR483GG0WW GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
75WE2M173 GE Screw
235WE1M280 GE Screw
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
712WE14M114 GE Gas Valve and Pipe Assembly Natural
716WE14M104 GE Burner Assembly
716WD2M101 GE Dishwasher Screw
717WE04X25996 GE Washer Igniter
721GEN WE13X0118
723GEN WE13X0195
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
9999WE25X217 GE LP Natural Gas Conversion Kit
9999WE25X218 GE Conversion Kit
