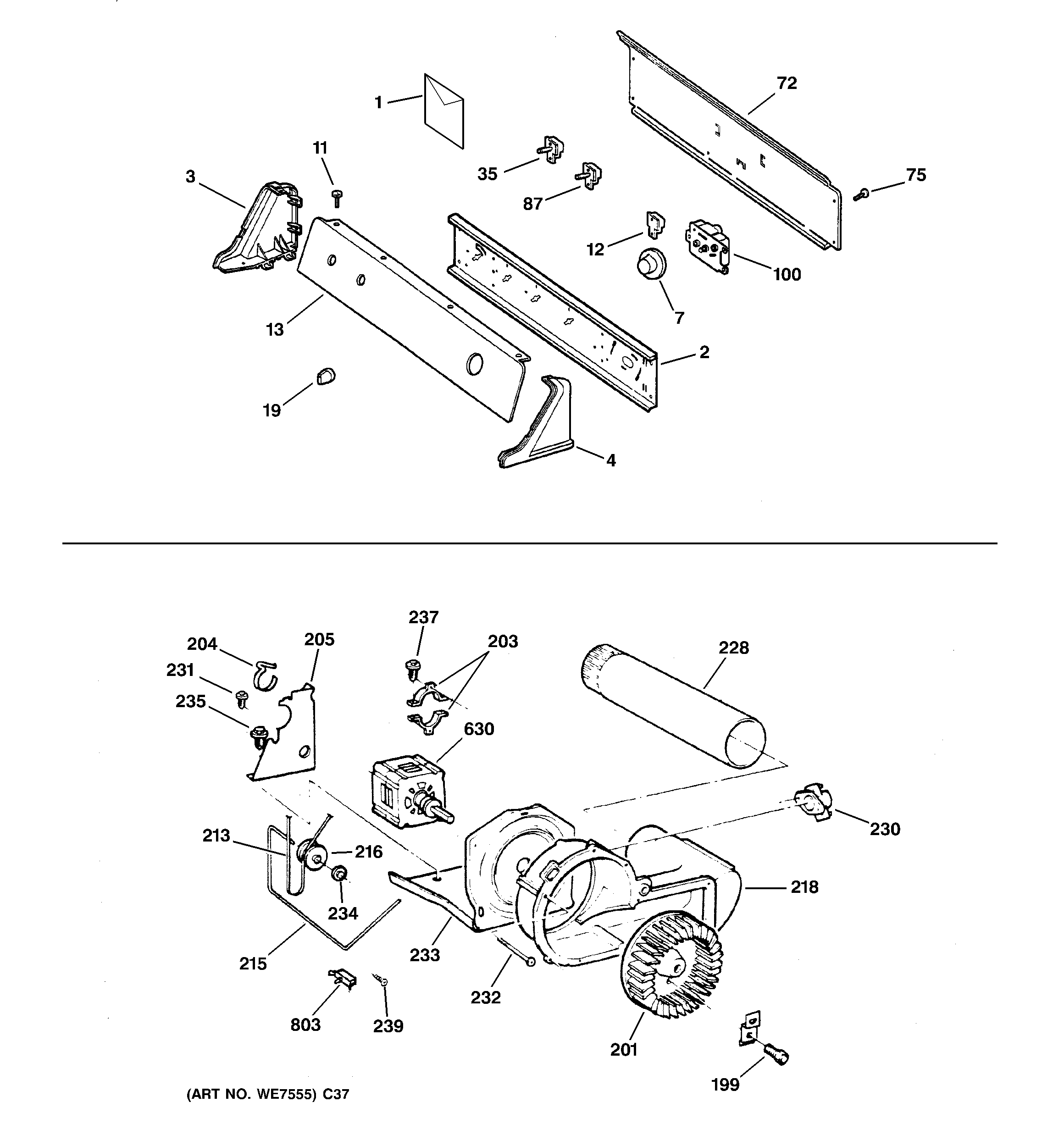

DX2300GB0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16077
1GEN 31-16085
1GEN 49-90158
2GEN WH46X10046
3GEN WE19M940
4END CAP RH WH
7WE1X1263 GE Dryer Timer Control Knob
11SCREW 8-18 AB FLT 9/16 S
12GEN WH12X1074
13SWITCH TRIM ASM
19WH1X2721 GE Dryer Control Knob
35WE4X881 GE Dryer Rotary Start Switch
72GEN WE20X811
75WE2M173 GE Screw
87GEN WE4M269
100GEN WE4M306
199WE2M98 GE Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
