E23BC68JPS0 07 – CABINET

E23BC68JPS0 07 – CABINET

Written by

in

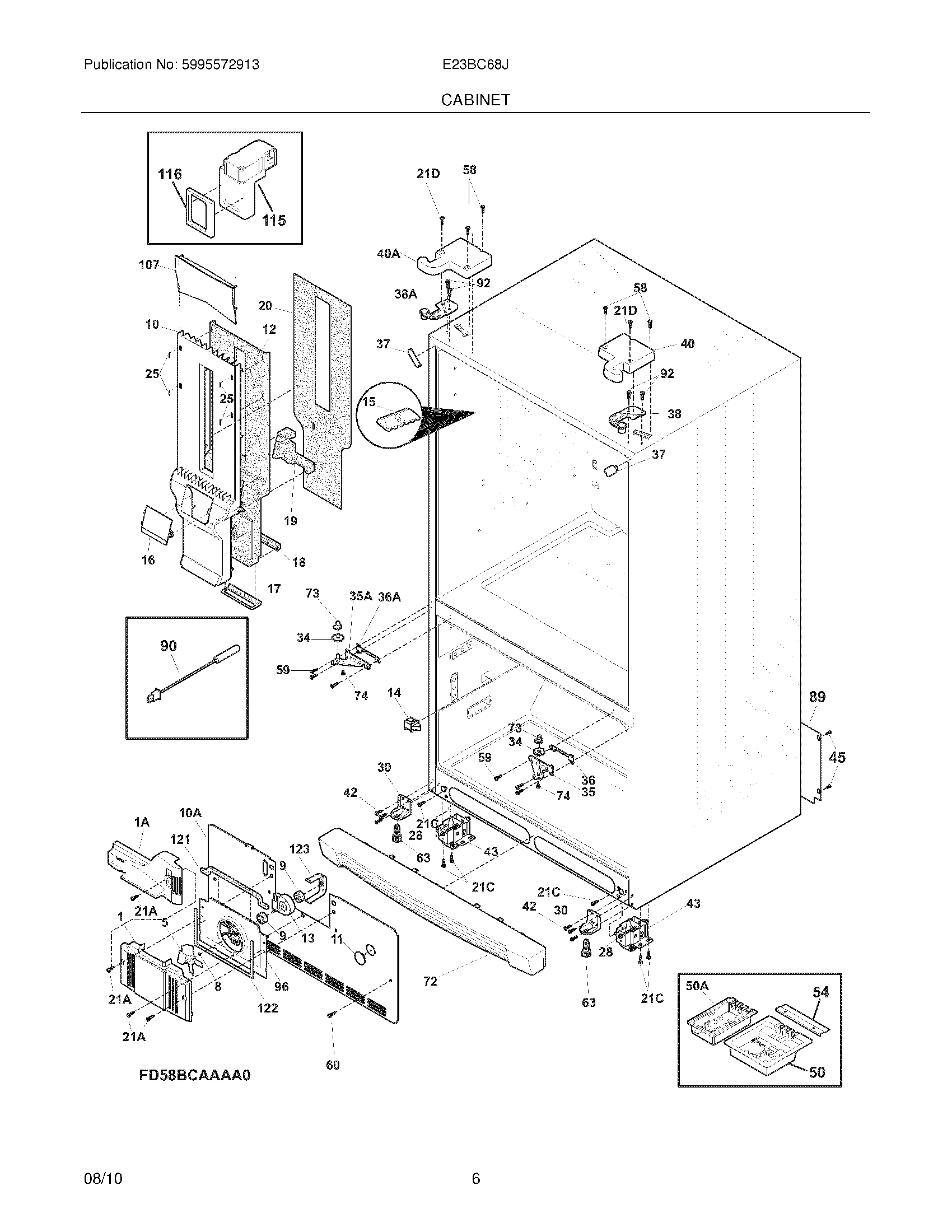

E23BC68JPS0 07 – CABINET

Products

Position	Product
NI	WCI 241953904
NI	241969001 Frigidaire Refrigerator Cap
NI	242006903 Frigidaire Refrigerator Air Duct
NI	241953905 Frigidaire Screw
NI	242104901 Frigidaire Refrigerator Wiring Harness
NI	WCI 242025201
NI	WCI 241859801
NI	WCI 242045501
1	241859701 Frigidaire Refrigerator Fan Cover
1A	WCI 242052101
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
10	WCI 242058502
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15	WCI 241891101
16	WCI 241860501
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922901
21A	5304453707 Frigidaire Oven Screw
21D	241548003 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
25	WCI 241949501
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36	241868201 Frigidaire Refrigerator Spacer
36A	241868202 Frigidaire Refrigerator Spacer
37	WCI 240337612
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	WCI 242099808
40	WCI 242099807
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	218362501 Frigidaire Refrigerator Screw
50A	241852501 Frigidaire Refrigerator Clip
50	WCI 241996328
50A	241891601 Frigidaire Refrigerator Power Board
54	241532401 Frigidaire Refrigerator Channel
58	218781101 Frigidaire Handle Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	241500303 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	5303918795 Frigidaire Refrigerator Toe Grill Kit
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	WCI 242026701
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241963102 Frigidaire Refrigerator Duct-Air
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
