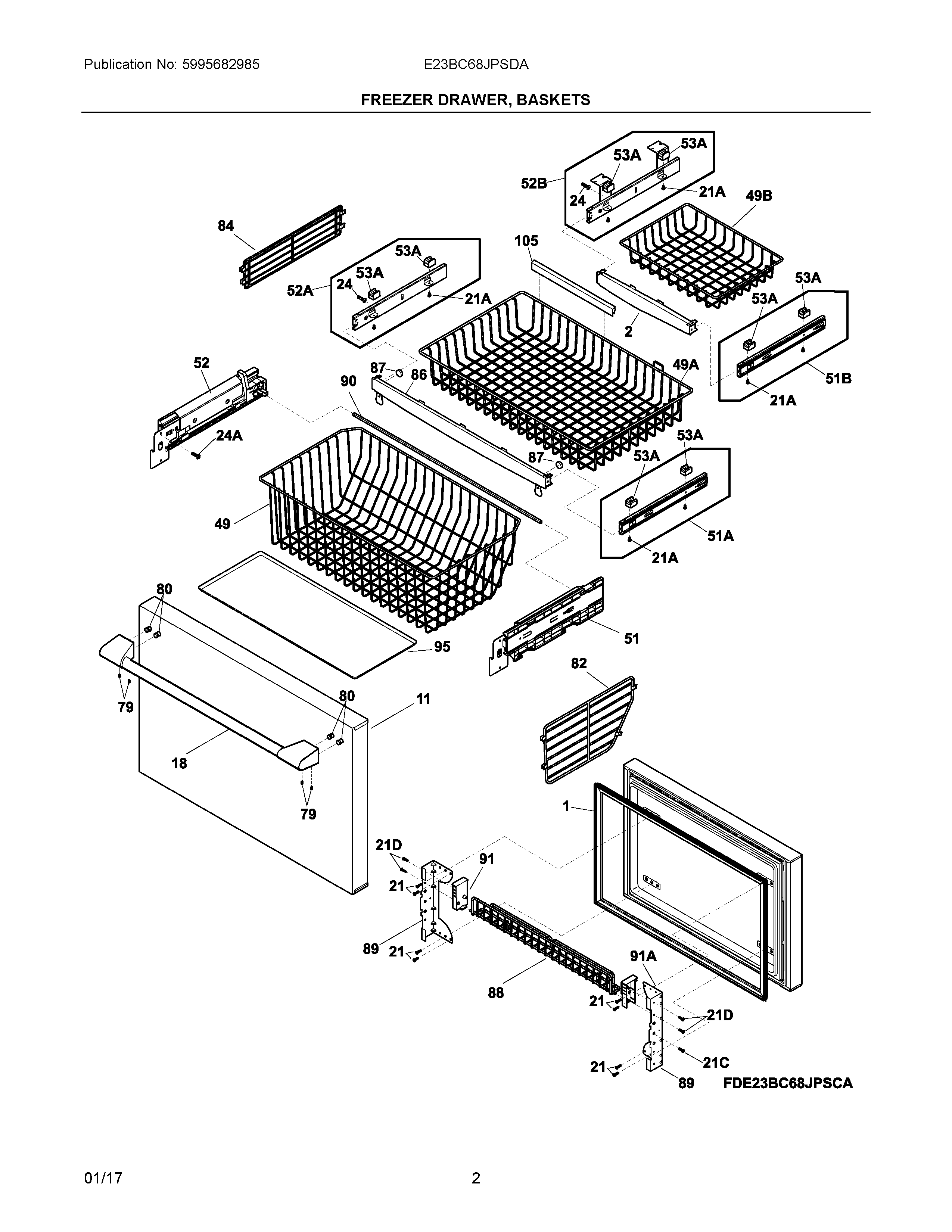

E23BC68JPSDA 02 – FREEZER DRAWER, BASKETS

E23BC68JPSDA 02 – FREEZER DRAWER, BASKETS

Written by

in

E23BC68JPSDA 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI5303918697 Frigidaire Alignment Kit
NIA5304453707 Frigidaire Oven Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA5304497384 Frigidaire Refrigerator Plate
NIA242039701 Frigidaire Refrigerator Screw
NI241899703 Frigidaire Refrigerator Screw
NIA241979601 Frigidaire Refrigerator Bumper
1GASKET
2BAR-STABILIZER, FREEZER DRAWER
11DRAWER, STAINLESS, FREEZER
18242052504 Frigidaire Refrigerator Three-Piece Door Handle Set
21241690602 Frigidaire Refrigerator Screw
21D242015001 Frigidaire Refrigerator Screw
21C242146401 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49BBASKET-FRZR, CEILING, UP UPPER
49WCI 242027002
49ABASKET-FRZR, UPPER
51BSLIDE ASSEMBLY, CEILING BASKET, RH
515303918696 Frigidaire Refrigerator Right Side Slide for Wire
51A241894227 Frigidaire Refrigerator Slide Assembly
52A241894228 Frigidaire Refrigerator Slide Assembly
52BSLIDE ASSEMBLY, CEILING BASKET, LH, W/BRACKETS
525303918695 Frigidaire Refrigerator LH Slide for WIR
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82242027102 Frigidaire Divider
84DIVIDER, BASKET, UPPER
86241953202 Frigidaire Refrigerator Bar Assembly
87241812202 Frigidaire Refrigerator Magnet
88241824009 Frigidaire Refrigerator Tilt Out Rack
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90241770705 Frigidaire Bar
91A241824101 Frigidaire Refrigerator Cap
91241824102 Frigidaire Refrigerator Door Rack Cap
95WCI 241770811
105242116801 Frigidaire Refrigerator Trim-Basket
