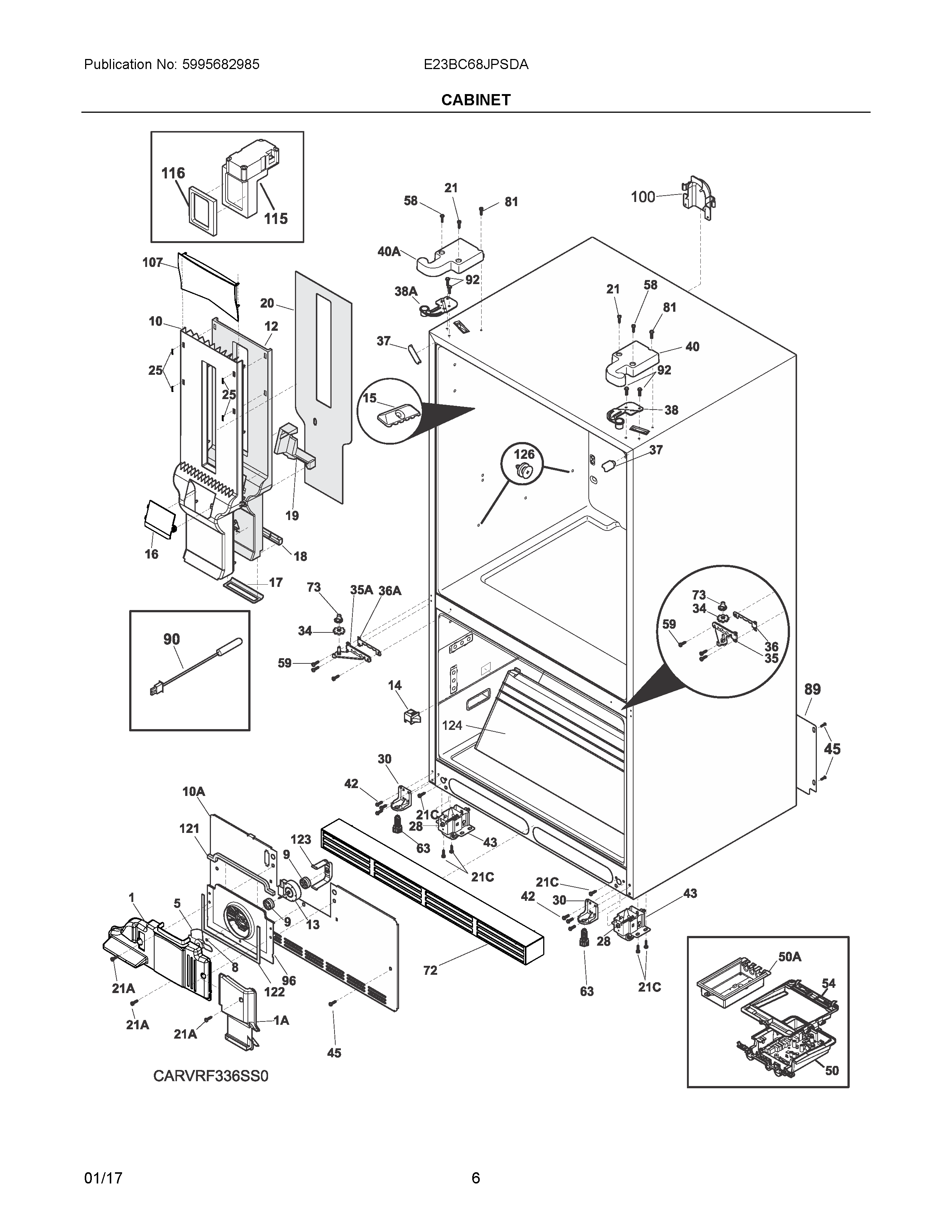

E23BC68JPSDA 04 – CABINET

Products

Position	Product
NI	218515401 Frigidaire Refrigerator Clip
NIAA	241860104 Frigidaire Refrigerator Coil Cover Gasket
NIC	241969001 Frigidaire Refrigerator Cap
NIAB	241860105 Frigidaire Refrigerator Gasket-Coil Cover
NIA	241852501 Frigidaire Refrigerator Clip
NIA	WCI 241859801
NI	5304453707 Frigidaire Oven Screw
NIB	WCI 241953904
NIA	242004802 Frigidaire Refrigerator Foam Strip
NI	5304455650 Frigidaire Refrigerator Screw
NIB	241953902 Frigidaire Refrigerator Screw
NI	241695904 Frigidaire Refrigerator Screw
NIB	242045503 Frigidaire Refrigerator Wiring Harness
NIA	807999001 Frigidaire Refrigerator Harness
NIA	241842301 Frigidaire Refrigerator Thermistor Cap
1	241859701 Frigidaire Refrigerator Fan Cover
1A	WCI 242052101
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
10	WCI 242058504
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	242060202 Frigidaire Refrigerator Switch-Light/Lamp
15	WCI 241891104
16	WCI 242164401
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922902
21A	242015001 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36	241868201 Frigidaire Refrigerator Spacer
36A	241868202 Frigidaire Refrigerator Spacer
37	TRIM-CABINET CORNER, NICKEL, (2)
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40	COVER-UPPER HINGE, GRAY, RH
40A	242099810 Frigidaire Refrigerator Upper Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	218362501 Frigidaire Refrigerator Screw
50AA	WCI 241891611
50	5304504034 Frigidaire Refrigerator Board-Main Power
54	807854301 Frigidaire Refrigerator Support
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	5303918795 Frigidaire Refrigerator Toe Grill Kit
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
100	242157601 Frigidaire Refrigerator Cover
107	241963102 Frigidaire Refrigerator Duct-Air
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
124	242006903 Frigidaire Refrigerator Air Duct
126	5304515677 Frigidaire Package of 4 Screws
