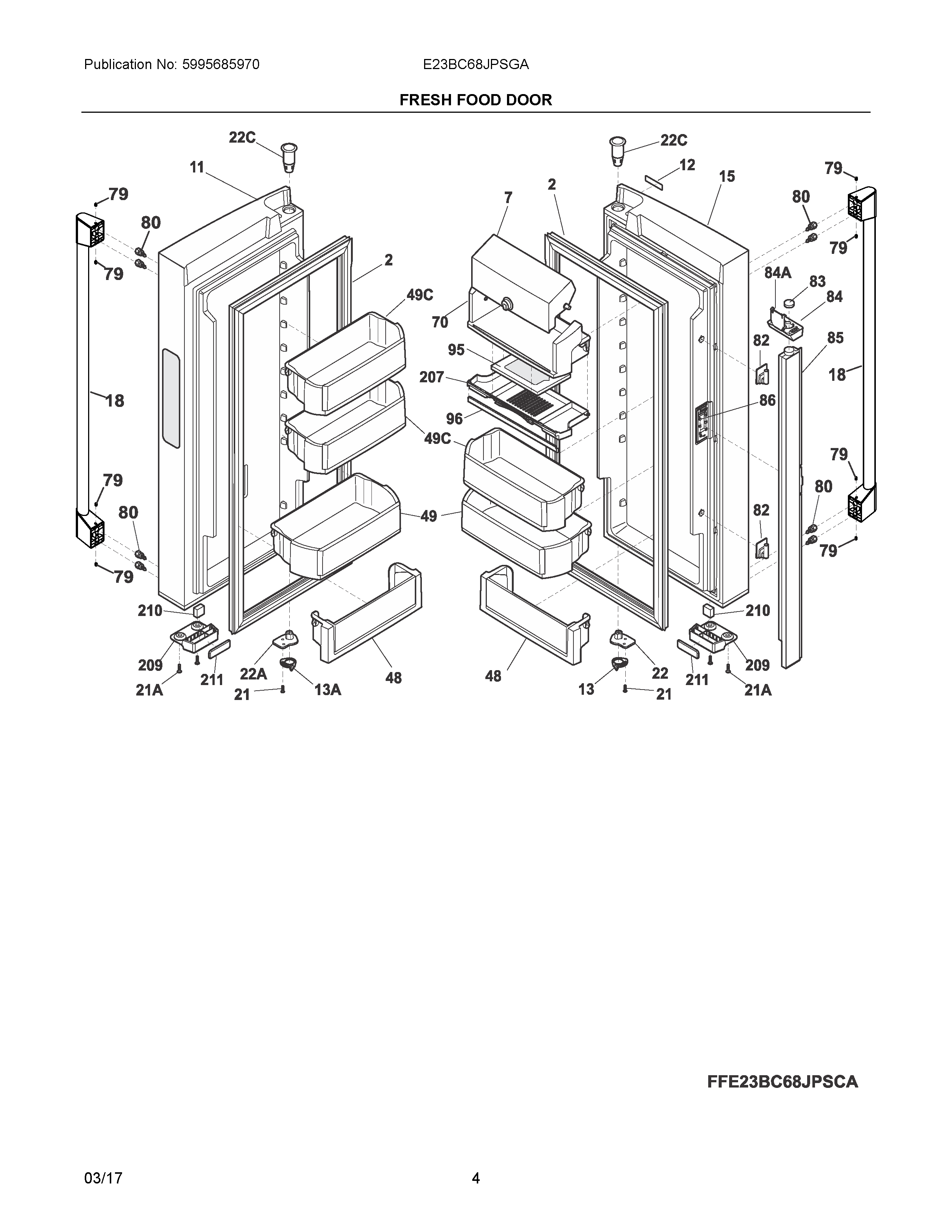

E23BC68JPSGA 03 – FRESH FOOD DOOR

E23BC68JPSGA 03 – FRESH FOOD DOOR

Written by

in

E23BC68JPSGA 03 – FRESH FOOD DOOR

Products

Position	Product
NI	242015001 Frigidaire Refrigerator Screw
NIB	240451503 Frigidaire Refrigerator Screw
NIA	242068601 Frigidaire Refrigerator Bumper
NIB	241836301 Frigidaire Refrigerator Knob-Dairy Door
NIC	241836401 Frigidaire Refrigerator Door Latch
NIC	241788402 Frigidaire Harness-WIRING
NIA	241995401 Frigidaire Refrigerator Divider-Dairy Compt
NI	HARNESS-WIRING, DOOR
NIA	5304453707 Frigidaire Oven Screw
2	GASKET-DR
11	DOOR-REFR, STAINLESS, LH, COMPLETE ASSY
12	241603101 Frigidaire Refrigerator Label-Nameplate
13A	241868402 Frigidaire Refrigerator Door Stop
13	241868401 Frigidaire Refrigerator Door Stop
15	DOOR-REFR, STAINLESS, RH, COMPLETE ASSY
18	242052504 Frigidaire Refrigerator Three-Piece Door Handle Set
21	242017501 Frigidaire Refrigerator Screw
22	CAM, UPPER HINGE, RH
22A	242075602 Frigidaire Refrigerator Cam
22C	241760401 Frigidaire Refrigerator Bearing
48	241804303 Frigidaire Refrigerator Door Bin
49	WCI 241804007
49C	WCI 241896104
70	241895805 Frigidaire Refrigerator Butter-Cheese Door
79	218755401 Frigidaire Refrigerator Screw Set
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83	241812202 Frigidaire Refrigerator Magnet
84	808274201 Frigidaire Door Guide Assembly
84A	242190501 Frigidaire Refrigerator Mullion Assembly
85	FLIPPER MULLION ASSEMBLY, WHITE, W/HEATER
86	241779802 Frigidaire Door Hinge Mullion Flipper
95	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
96	242048001 Frigidaire Refrigerator Trim
207	242047901 Frigidaire Refrigerator Air Filter Housing
209	242291001 Frigidaire Refrigerator Housing
210	241779101 Frigidaire Refrigerator Magnet
211	241979601 Frigidaire Refrigerator Bumper
