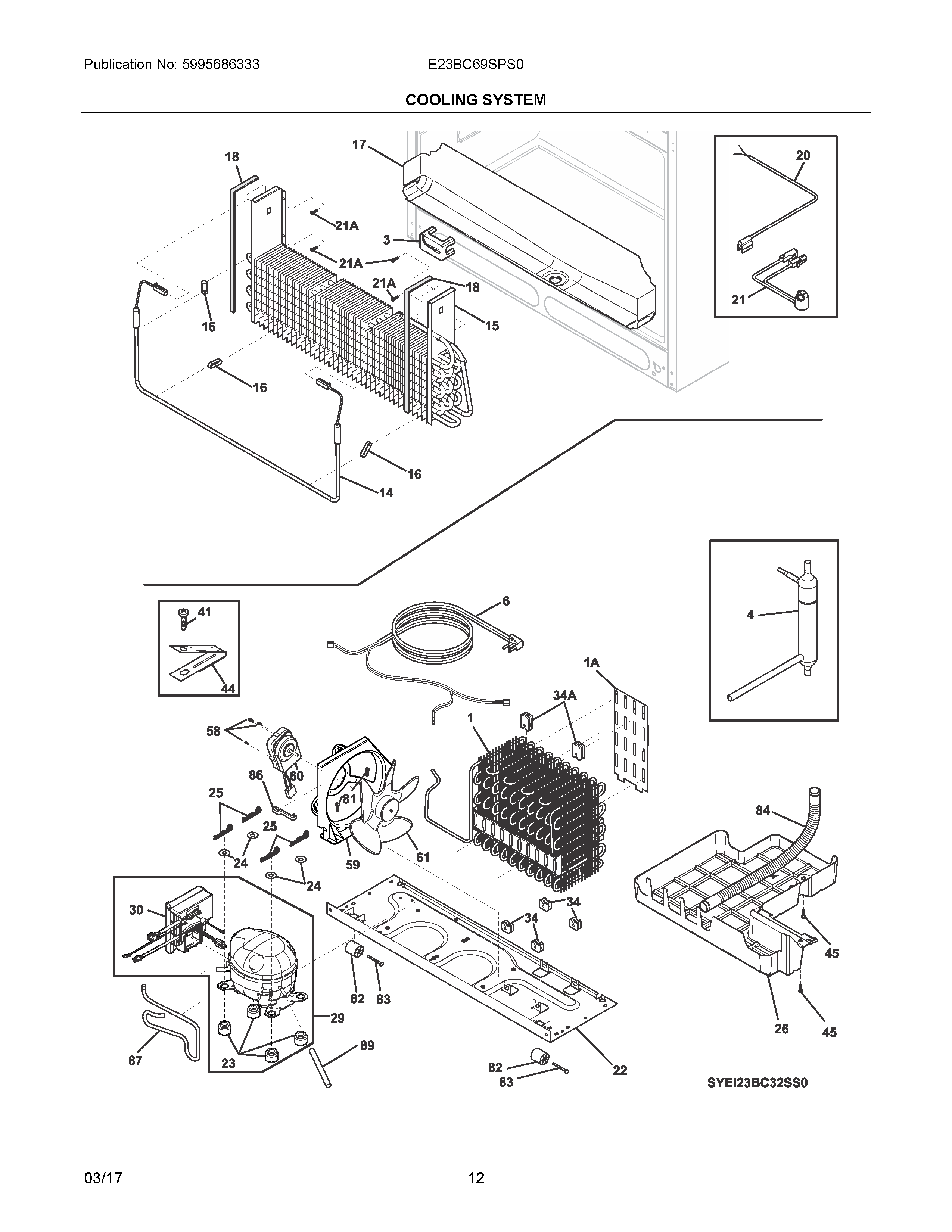

E23BC69SPS0 06 – COOLING SYSTEM

E23BC69SPS0 06 – COOLING SYSTEM

Written by

in

E23BC69SPS0 06 – COOLING SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI241510904 Frigidaire Refrigerator Dispenser Harness
NI218515401 Frigidaire Refrigerator Clip
NI241947701 Frigidaire Refrigerator Spacer
NI5303918445 Frigidaire Refrigerator Heat Exchanger
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIA242036801 Frigidaire Refrigerator Plastic Clip
NIA5304521778 Frigidaire Refrigerator Wiring Harness
1A241987301 Frigidaire Refrigerator Deflector-Air
1241862903 Frigidaire Refrigerator Condenser
3241838401 Frigidaire Refrigerator Block-Evaporator Coil
45303305677 Frigidaire Replacement Filter Dryer Filters
6241516904 Frigidaire Refrigerator Service Cord
145303918410 Frigidaire Refrigerator Defrost Heater Kit
15242044504 Frigidaire Refrigerator Evaporator
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241791201 Frigidaire Refrigerator Trough-Drain
18241860101 Frigidaire Refrigerator Gasket
205303918776 Frigidaire Refrigerator Thermistor
215304521781 Frigidaire Refrigerator Thermostat
21A218362501 Frigidaire Refrigerator Screw
22241602112 Frigidaire Refrigerator Base Compressor
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241920608 Frigidaire PAN-DEFROST
29241547606 Frigidaire Refrigerator Vegd6 Compressor W
30241577511 Frigidaire Refrigerator Invertor
34241929901 Frigidaire GROMMET-COND MTG
34A241929902 Frigidaire Condenser Mounting Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
81240359403 Frigidaire Refrigerator Fan Shroud Screw
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84241830904 Frigidaire Refrigerator Drain Tube
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
87TUBE-CONNECTOR, SUCTION
89WCI 215346900
